APAN314H
APAN314H
  • ACTIVE
  • EAR99

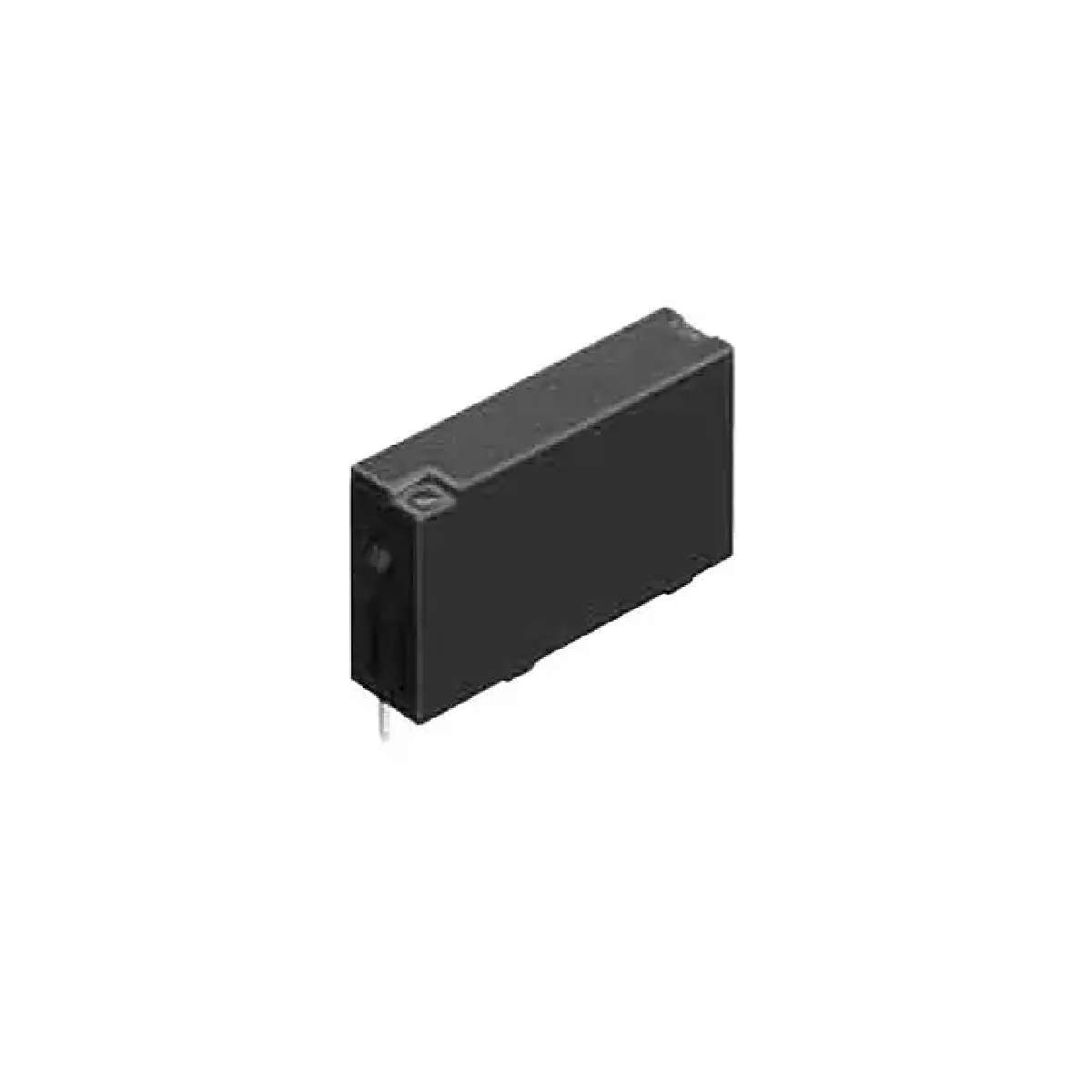

Product description : PA-N Series SPST 4.5 V 5 A PC Pin Non Latching Slim Power Relay
SPQ:25
Datasheet : --
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Contact Form SPST-NO (1 Form A)
Turn Off Voltage (Min) 0.225 VDC
Operate Time 10ms
Coil Type Non Latching
Part Status Active
Coil Current 24.4mA
Release Time 5ms
Contact Material Silver Nickel (AgNi), Gold (Au)
Series PA-N
Coil Voltage 4.5VDC
Mounting Type Through Hole
Operating Temperature -40°C ~ 90°C
ECCN EAR99
Coil Power 110 mW
Termination Style PC Pin
Turn On Voltage (Max) 3.15 VDC
Features Sealed
Category Relays
Manufacturer Panasonic Electric Works
Switching Voltage 250VAC, 110VDC - Max
Relay Type General Purpose
Coil Resistance 184 Ohms
Family Power Relays, Over 2 Amps
Contact Rating (Current) 5A
Packaging Tube
