| 688LBA035M2CD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

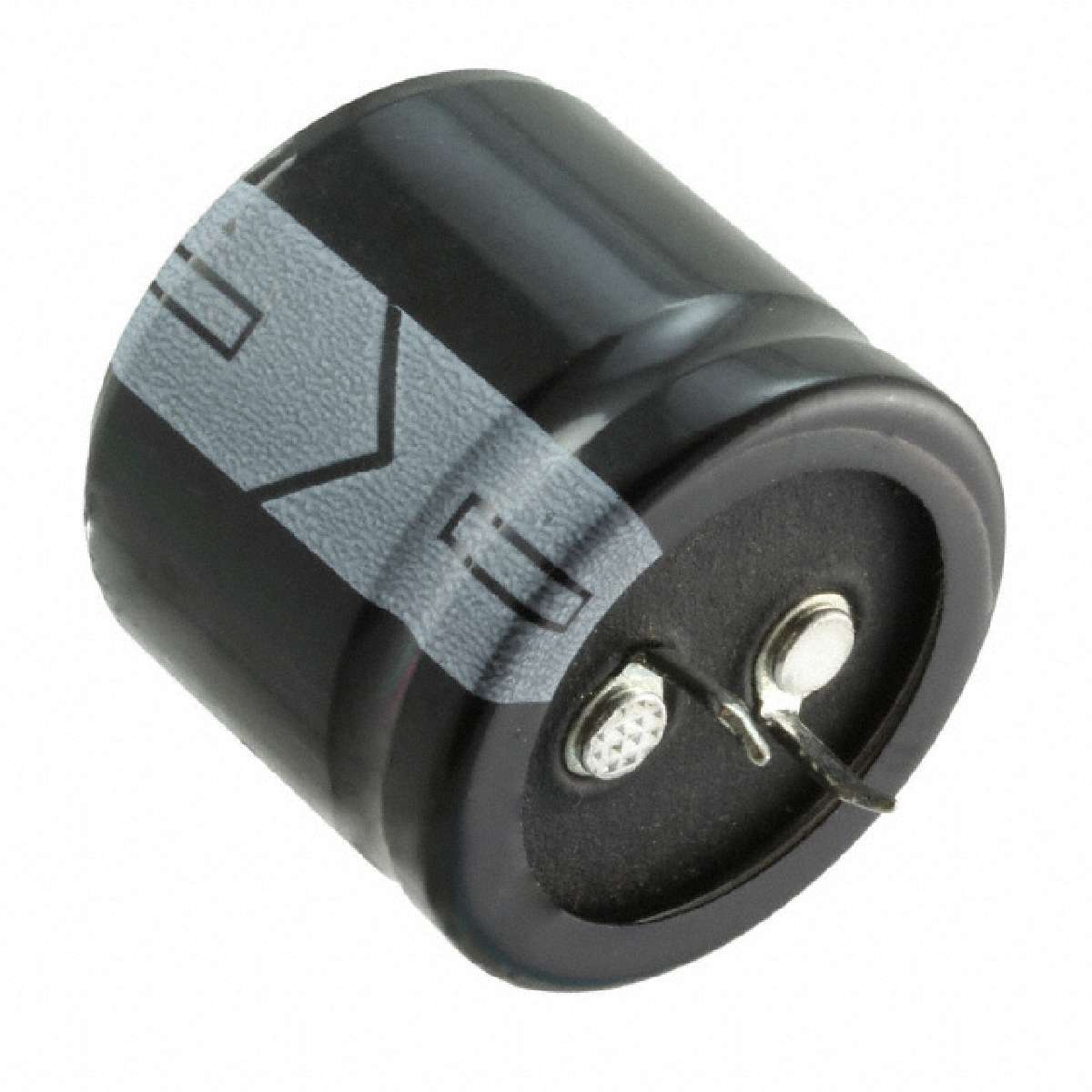

LBA Series 35 V 6800 uF 25 x 30 mm LS =10 mm ±20 %Snap In Electrolytic Capacitor
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 35V |
|---|---|
| Package / Case | Radial, Can - Snap-In |
| Capacitance | 6800µF |
| ESR (Equivalent Series Resistance) | 97.52 mOhm @ 120Hz |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Ripple Current | 3.01A |
| Manufacturer | Illinois Capacitor |
| Series | LBA |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Packaging | Bulk |
