| 10127820-2022LF | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

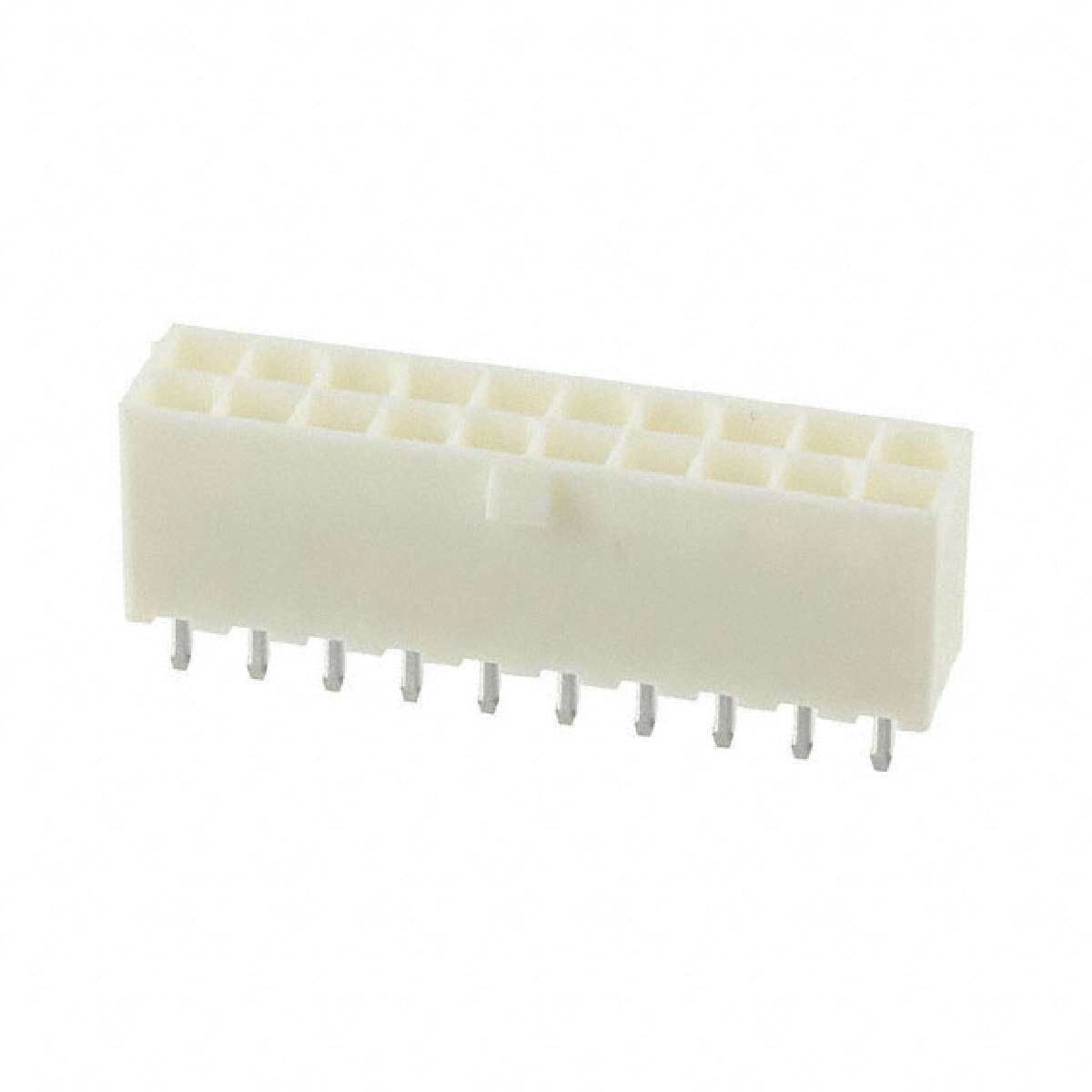

Minitek Pwr4.2 header,Dual row,20pos,Vertical Through hole
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Headers |
|---|---|
| Packaging: | Tray |
| Housing Material: | Nylon |
| Voltage Rating: | 600 V |
| Operating Temperature Range: | - 40 C to + 105 C |
| Brand: | Amphenol FCI |
| RoHS: | Details |
| Number of Positions: | 20 Position |
| Contact Material: | Brass |
| Number of Rows: | 2 Row |
| Contact Gender: | Pin (Male) |
| Insulation Resistance: | 1000 MOhms |
| Mounting Style: | Through Board |
| Mounting Angle: | Vertical |
| Termination Post Length: | 3.5 mm |
| Manufacturer: | FCI / Amphenol |
| Series: | Minitek Pwr 4.2 |
| Factory Pack Quantity: | 135 |
| Tradename: | Minitek |
| Pitch: | 4.2 mm |
| Termination Style: | Through Hole |
| Product Category: | Headers & Wire Housings |
| Current Rating: | 9 A |
| Contact Plating: | Tin |
| Type: | Shrouded |
