| QXK2G474KTPTZH | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

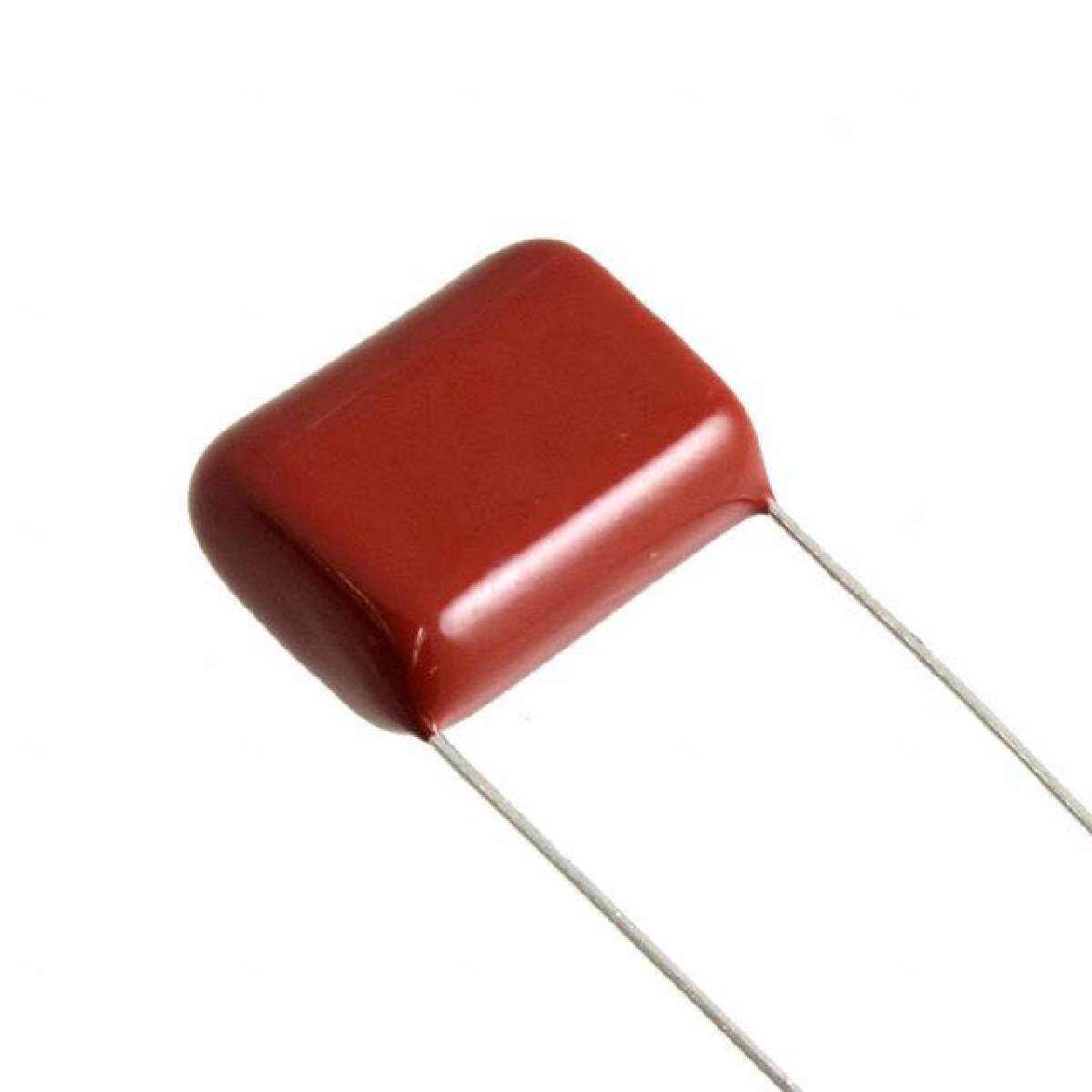

Nichicon 470nF 径向 聚酯薄膜电容器, XK(ZH) ±10% 200 V 交流，400 V 直流
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | PC Pins |
|---|---|
| Package / Case | Radial |
| Capacitance | 0.47µF |
| Voltage Rating - DC | 400V |
| Size / Dimension | 0.807" L x 0.398" W (20.50mm x 10.10mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.705" (17.90mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Tolerance | ±10% |
| Lead Spacing | 0.689" (17.50mm) |
| Voltage Rating - AC | 200V |
| Dielectric Material | Polyester, Metallized |
| Part Status | Active |
| Manufacturer | Nichicon |
| Series | QXK-ZH |
| Applications | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression |
| Operating Temperature | -40°C ~ 105°C |
