| 416131160803 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

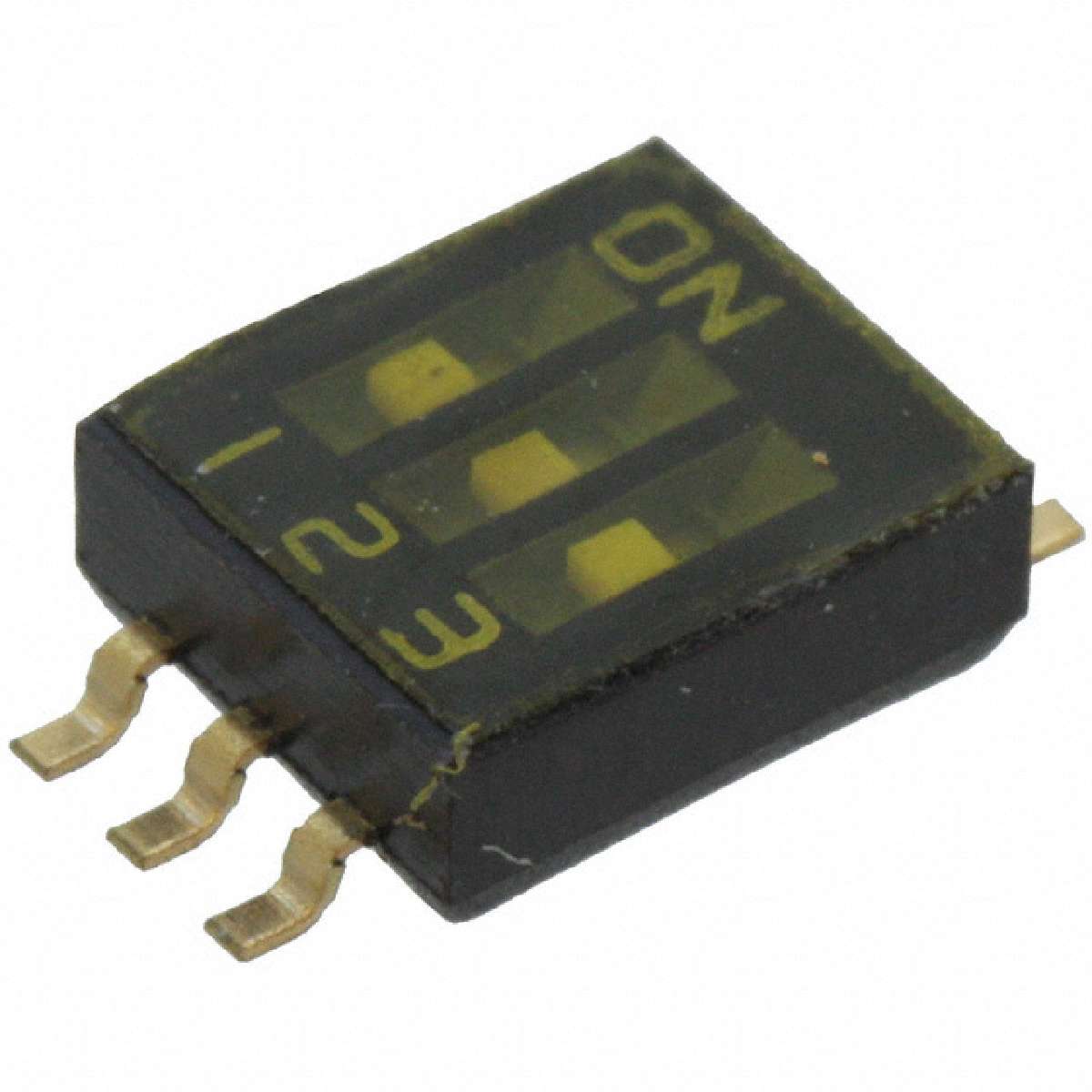

DIP SWITCH 1.27MM PITCH 3POL 24V
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 24VDC |
|---|---|
| Termination Style | Gull Wing |
| Electrical Life | 1,000 Cycles |
| Washable | Yes |
| Packaging | Tape & Reel (TR) |
| Circuit | SPST |
| Features | Tape Seal |
| Category | Switches |
| Length | 0.191" (4.85mm) |
| Number of Positions | 3 |
| Family | DIP Switches |
| Current Rating | 25mA |
| Contact Finish | Gold |
| Body Material | Polyphenylene Sulfide (PPS) |
| Manufacturer | Wurth Electronics Inc |
| Mounting Type | Surface Mount |
| Height Above Board | 0.098" (2.50mm) |
| Actuator Type | Slide (Standard) |
| Part Status | Active |
| Actuator Level | Flush, Recessed |
| Mechanical Life | 2,000 Cycles |
| Series | WS-DISV |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.050" (1.27mm), Half |
登录之后就可发表评论
Availability4Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 1109 | Update On 2025-06-18 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$2.96765
￥24.64825703940881
See more prices
| 1+ | $2.96765 |
|---|---|
| 10+ | $2.81336 |
| 100+ | $2.70772 |
| 500+ | $2.59096 |
| 1000+ | $2.44779 |
| stock | 89 | Update On 2025-06-04 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$2.05081
￥17.03331
| stock | 89 | Update On 2025-06-04 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/2000 | |
| Location | -- | |
| DateCode | -- |
