| BL620-SC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

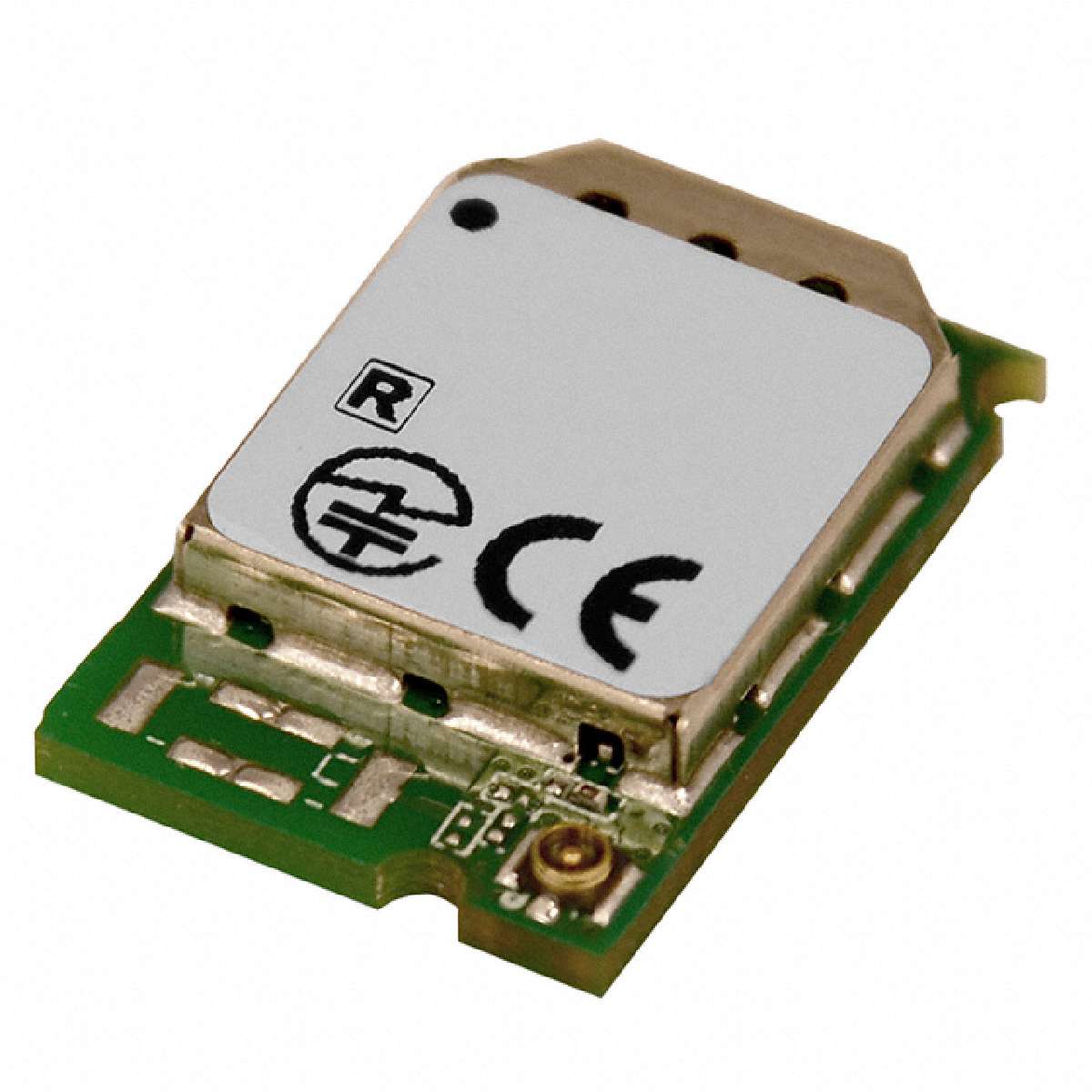

Single Mode BLE Central Role Module featuring smartBASIC (u.FL RF Connector)
|
||
| 标准包装：50 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Output Power: | 4 dBm |
|---|---|
| Packaging: | Tray |
| Manufacturer: | Laird Technologies |
| Interface Type: | I2C, SPI, UART |
| Series: | BL620 |
| Class: | Bluetooth Smart |
| Factory Pack Quantity: | 50 |
| RoHS: | Details |
| Version: | Version 4.0 |
| Maximum Operating Temperature: | + 85 C |
| Dimensions: | 19 mm x 12.5 mm x 3 mm |
| Sensitivity: | - 91 dBm |
| Data Rate: | 1 Mb/s |
| Operating Supply Voltage: | 1.8 V to 3.6 V |
| Minimum Operating Temperature: | - 40 C |
| Frequency: | 2.402 GHz to 2.480 GHz |
| Brand: | Laird Technologies Wireless M2M |
| Product Category: | Bluetooth / 802.15.1 Modules |
| Antenna Connector Type: | IPEX MHF4 |
| ECCN | EAR99 |
