| 416131160810 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

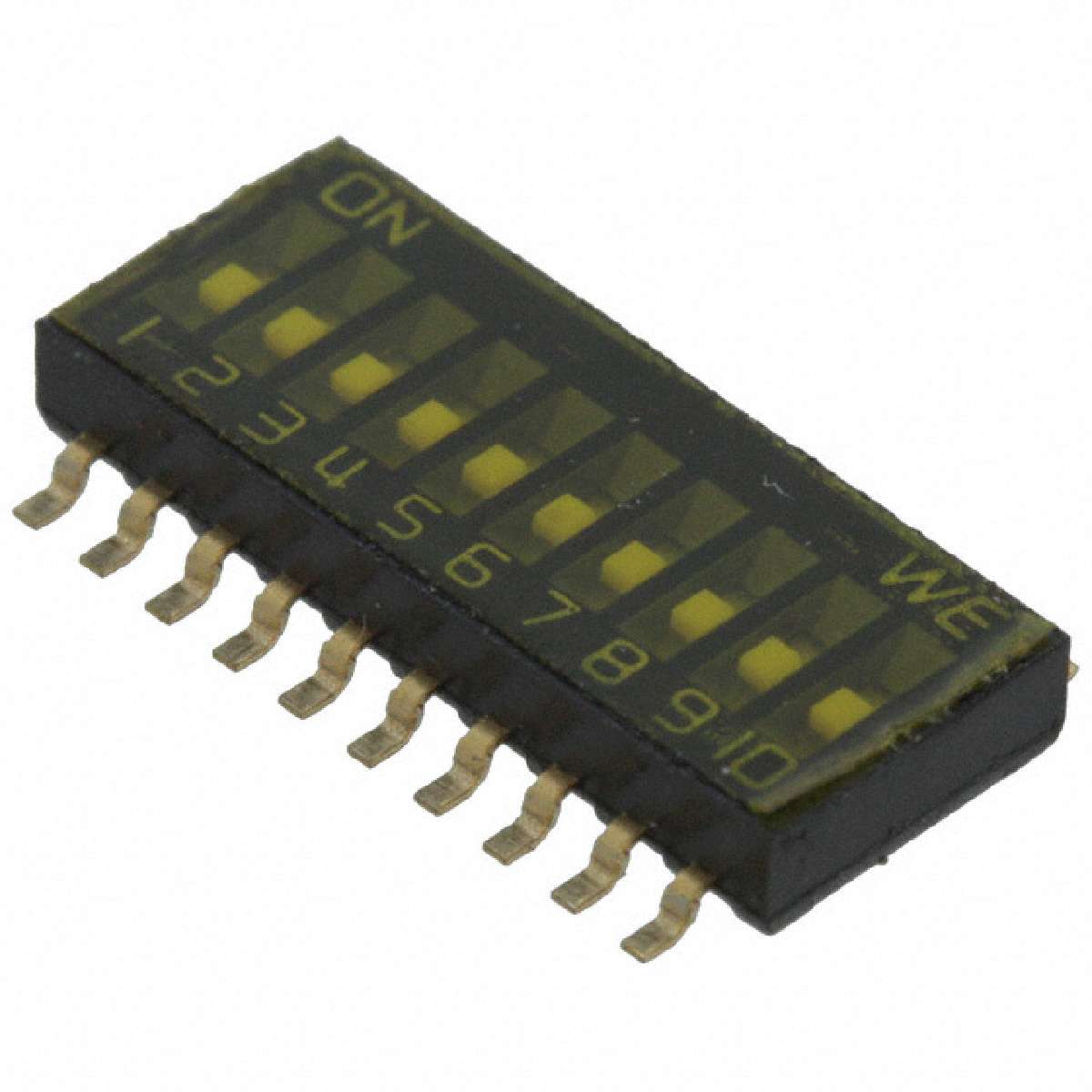

DIP SWITCH 1.27MM 10 POL 24V
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 24VDC |
|---|---|
| Termination Style | Gull Wing |
| Electrical Life | 1,000 Cycles |
| Washable | Yes |
| Packaging | Tape & Reel (TR) |
| Circuit | SPST |
| Features | Tape Seal |
| Category | Switches |
| Length | 0.546" (13.87mm) |
| Number of Positions | 10 |
| Family | DIP Switches |
| Current Rating | 25mA |
| Contact Finish | Gold |
| Body Material | Polyphthalamide (PPA) |
| Manufacturer | Wurth Electronics Inc |
| Mounting Type | Surface Mount |
| Height Above Board | 0.098" (2.50mm) |
| Actuator Type | Slide (Standard) |
| Part Status | Active |
| Actuator Level | Flush, Recessed |
| Mechanical Life | 2,000 Cycles |
| Series | WS-DISV |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.050" (1.27mm), Half |
