| 16R700GMR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

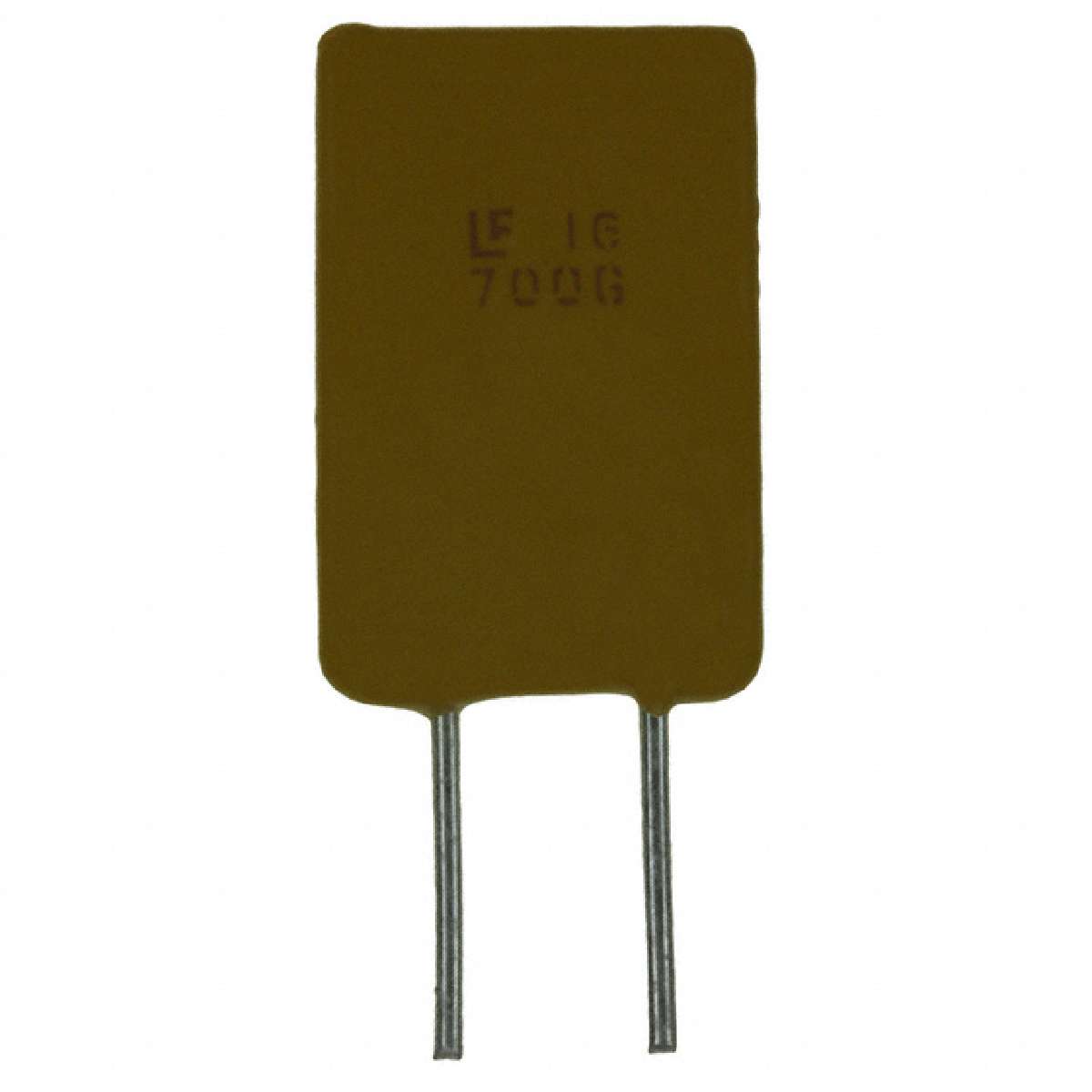

PTC RESETTABLE 16V 7A RADIAL
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial, Disc |
|---|---|
| Lead Spacing | 0.201" (5.10mm) |
| Part Status | Active |
| Category | Circuit Protection |
| Height - Seated (Max) | 0.780" (19.70mm) |
| Current - Max | 100A |
| Mounting Type | Through Hole |
| Current - Hold (Ih) (Max) | 7A |
| Packaging | Tape & Box (TB) |
| R Min/Max | 0.008 ~ 0.020 Ohm |
| Size / Dimension | 0.441" L x 0.118" W (11.20mm x 3.00mm) |
| Time to Trip | 3.5s |
| Manufacturer | Littelfuse Inc. |
| Series | POLY-FUSE®, 16R |
| Family | PTC Resettable Fuses |
| Voltage - Max | 16V |
| Current - Trip (It) | 11.9A |
| ECCN | EAR99 |
