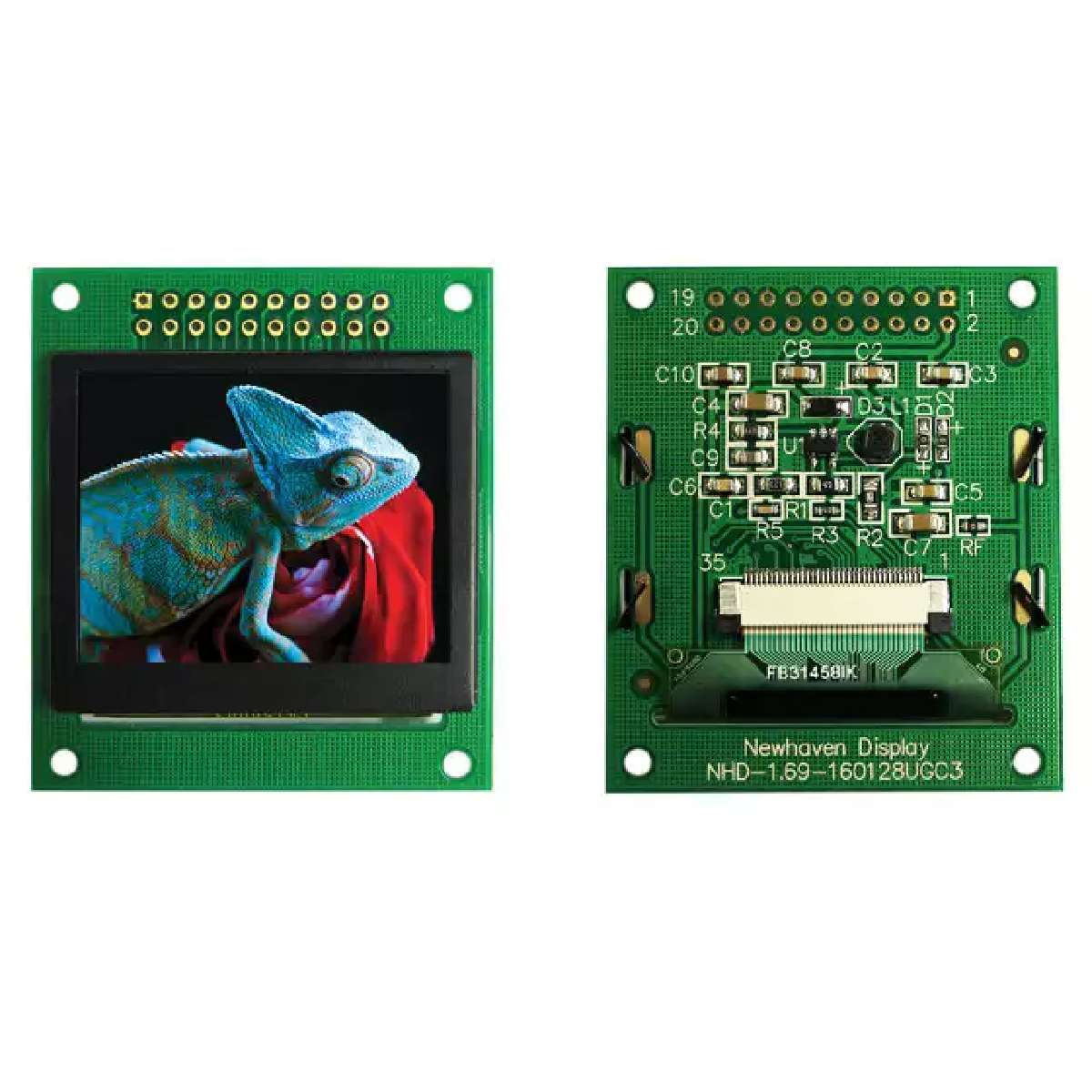

| NHD-1.69-160128UGC3 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
DISPLAY FULL COLOR OLED 1.69"
|
||
| 标准包装：100 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Viewing Area - W x H: | 35 mm x 28 mm |
|---|---|
| Viewing Angle: | 80 deg |
| Manufacturer: | Newhaven Display |
| Operating Supply Voltage: | 3 V |
| Operating Temperature Range: | - 30 C to + 70 C |
| Brand: | Newhaven Display |
| Resolution: | 160 x 128 |
| Operating Supply Current: | 186 mA |
| Maximum Operating Temperature: | + 70 C |
| Product: | OLED Display Modules |
| Packaging: | Tray |
| Interface Type: | 8 bit Parallel/3-Wire SPI/4-Wire SPI |
| Minimum Operating Temperature: | - 30 C |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| Product Category: | OLED Displays & Accessories |
| Diagonal: | 1.69 in |
