| 418117270909 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

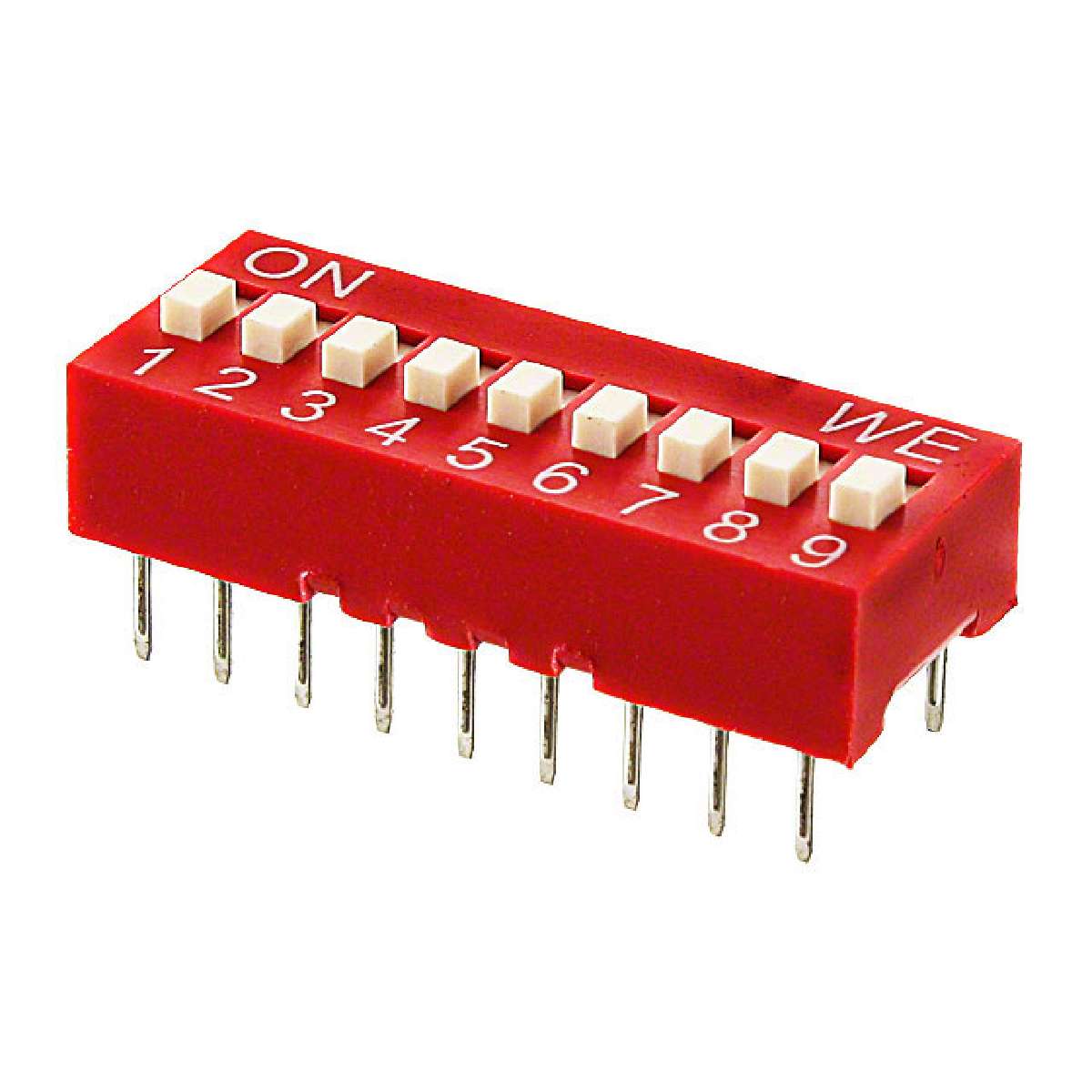

DIP SWITCH 2.54MM PITCH 9POL 24V
|
||
| 标准包装：22 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Mounting Angle: | Straight |
|---|---|
| Contact Rating: | 25 mA at 24 V |
| Actuator: | Raised |
| Mounting: | Through Hole |
| Operating Temperature Range: | - 40 C to + 85 C |
| Contact Form: | SPST |
| Brand: | Wurth Electronics |
| Number of Positions: | 9 Position |
| Contact Material: | Copper Alloy |
| Current Rating: | 100 mA |
| Life: | 2000 Cycles |
| Packaging: | Tube |
| Switch Type: | DIP |
| Manufacturer: | Wurth Electronics |
| Series: | WS-DITV |
| Voltage Rating DC: | 50 VDC |
| Factory Pack Quantity: | 22 |
| RoHS: | Details |
| Termination Style: | Through Hole |
| Product Category: | DIP Switches / SIP Switches |
| Contact Plating: | Gold |
| Terminal Pitch: | 2.54 mm |
