| UPW2A6R8MDD1TD | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

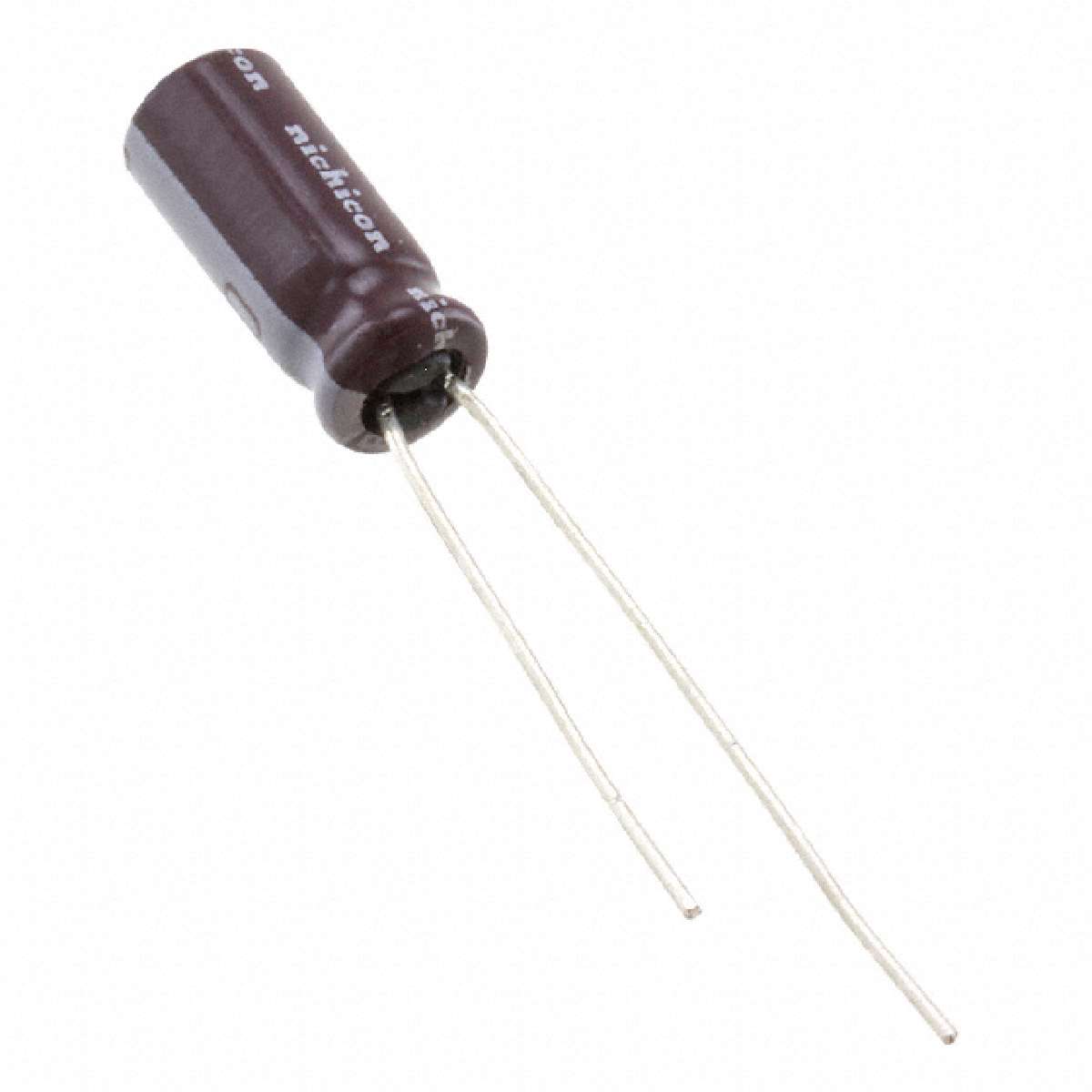

Capacitor: electrolytic; low impedance; THT; 6.8uF; 100VDC; ±20%
|
||
| 标准包装：10 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 100V |
|---|---|
| Impedance | 3.5 Ohm |
| Lead Spacing | 0.079" (2.00mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 6.8µF |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Ripple Current | 28.5mA |
| Manufacturer | Nichicon |
| Series | UPW |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Tape & Box (TB) |
