| TLP161G(U,C,F) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

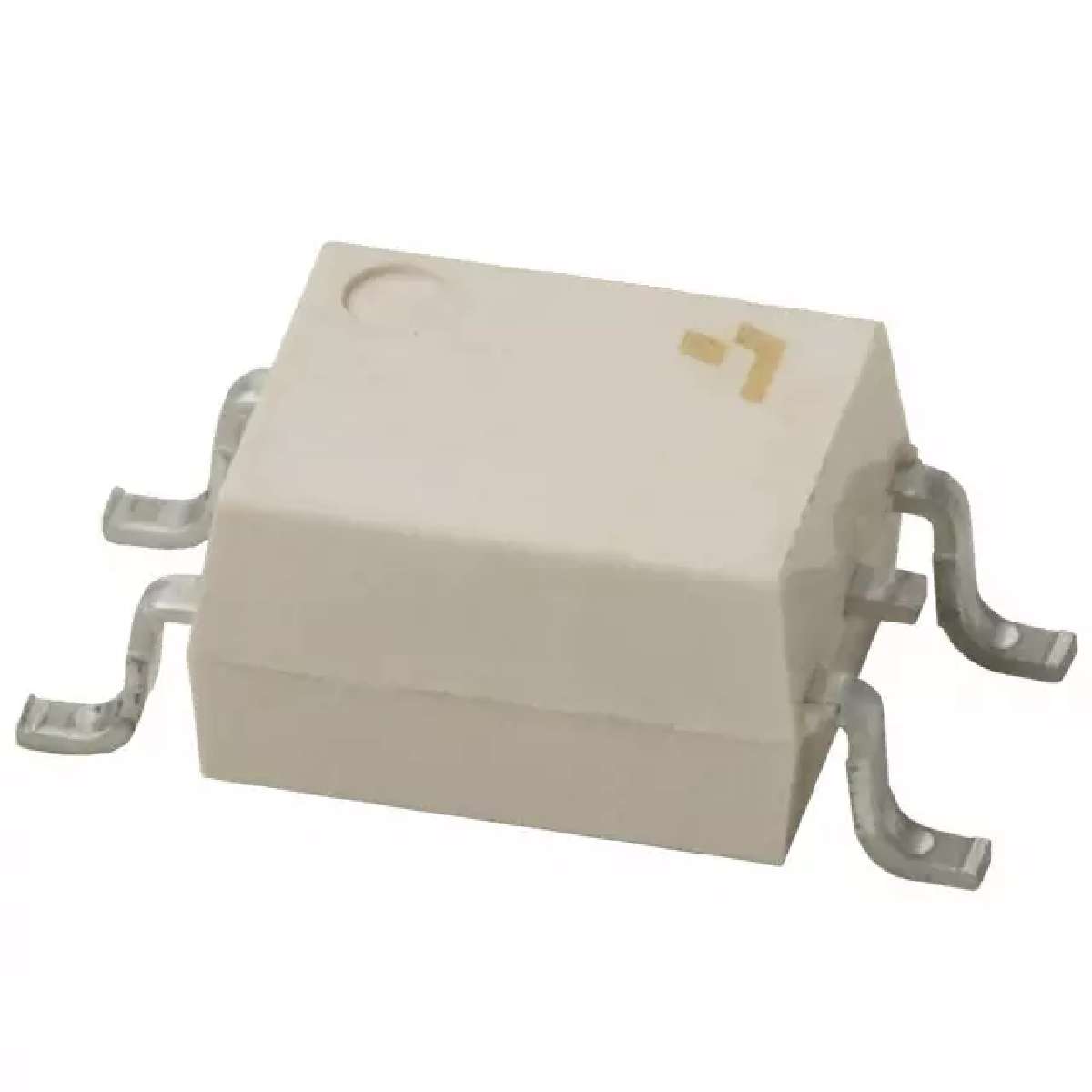

Toshiba TLP161G(U,C,F) 交流输入, 可控硅输出 光耦合器 表面安装安装 SO-6 4针
|
||
| 标准包装：10 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 2500Vrms |
|---|---|
| Supplier Device Package | 6-MFSOP, 4 Lead |
| Approvals | UR |
| Current - Hold (Ih) | 600µA (Typ) |
| Manufacturer | Toshiba Semiconductor and Storage |
| Output Type | Triac |
| Current - On State (It (RMS)) (Max) | 70mA |
| Family | Optoisolators - Triac, SCR Output |
| Operating Temperature | -40°C ~ 100°C |
| Static dV/dt (Min) | 200V/µs |
| Packaging | Tube |
| Package / Case | 6-SOIC (0.173", 4.40mm Width) 4 Leads |
| Zero Crossing Circuit | Yes |
| Part Status | Active |
| Category | Isolators |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50mA |
| Mounting Type | Surface Mount |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Voltage - Off State | 400V |
