| SG-210SEB 26.0000MF3 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

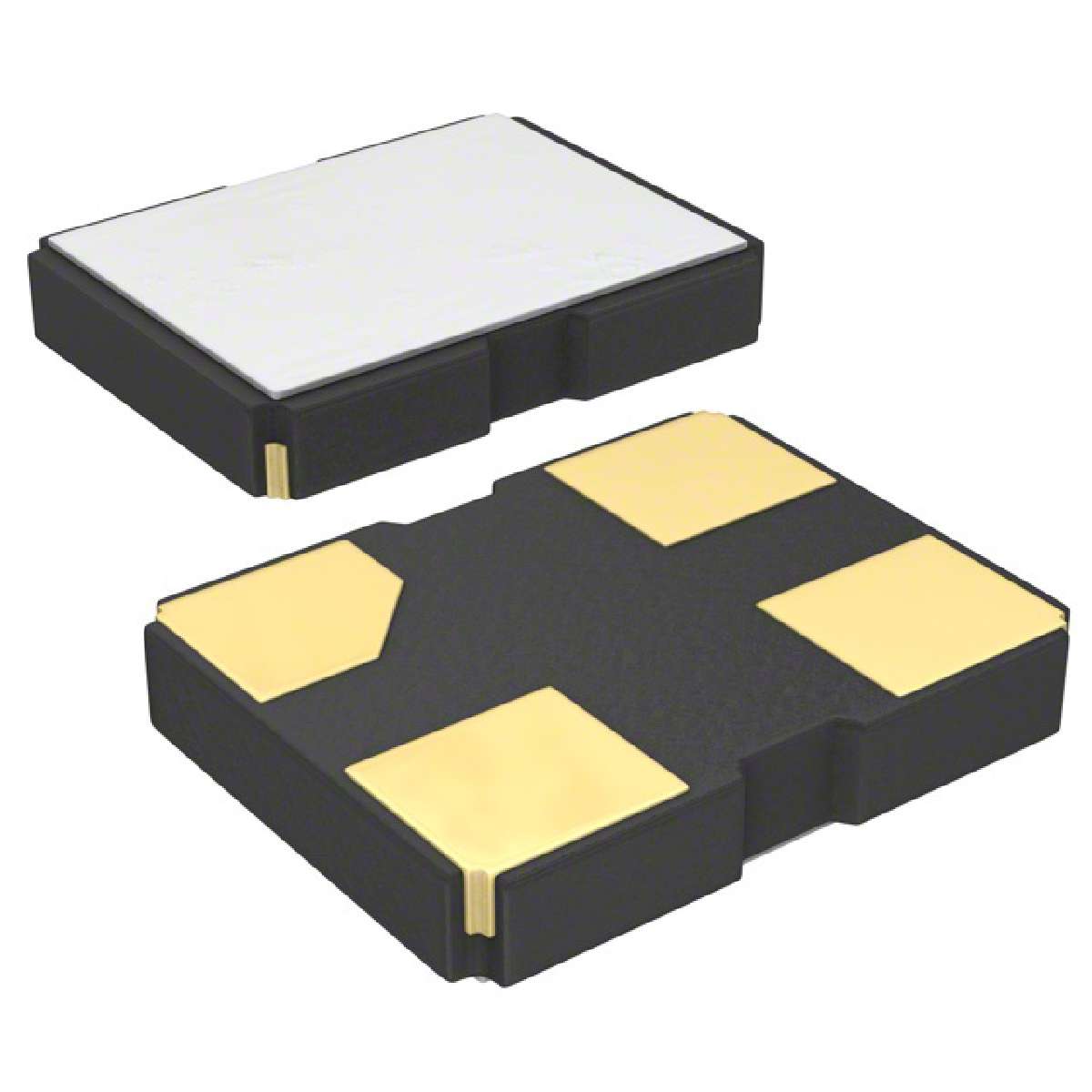

SG-210S*B Series 26 MHz ±20 ppm -10 to +60°C 2.5 x 2 mm SPXO Crystal Oscillator
|
||
| 标准包装：250 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Output Format: | CMOS |
|---|---|
| Product: | Standard Clock Oscillators |
| Minimum Operating Temperature: | - 10 C |
| Supply Voltage - Min: | 1.6 V |
| Supply Voltage - Max: | 2.2 V |
| Manufacturer: | Epson |
| Duty Cycle - Max: | 55 % |
| Series: | SG-210SxB |
| Frequency Stability: | 20 PPM |
| Part # Aliases: | Q33210BE0000912 |
| Termination Style: | SMD/SMT |
| Current Rating: | 1.6 mA |
| Maximum Operating Temperature: | + 60 C |
| Width: | 2 mm |
| Packaging: | Reel |
| Frequency: | 26 MHz |
| Height: | 0.8 mm |
| Length: | 2.5 mm |
| Load Capacitance: | 15 pF |
| Operating Supply Voltage: | 1.8 V |
| Factory Pack Quantity: | 250 |
| Brand: | Epson Timing |
| RoHS: | Details |
| Product Category: | Standard Clock Oscillators |
| Type: | Crystal Oscillator |
| ECCN | EAR99 |
