| SD12H0SB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

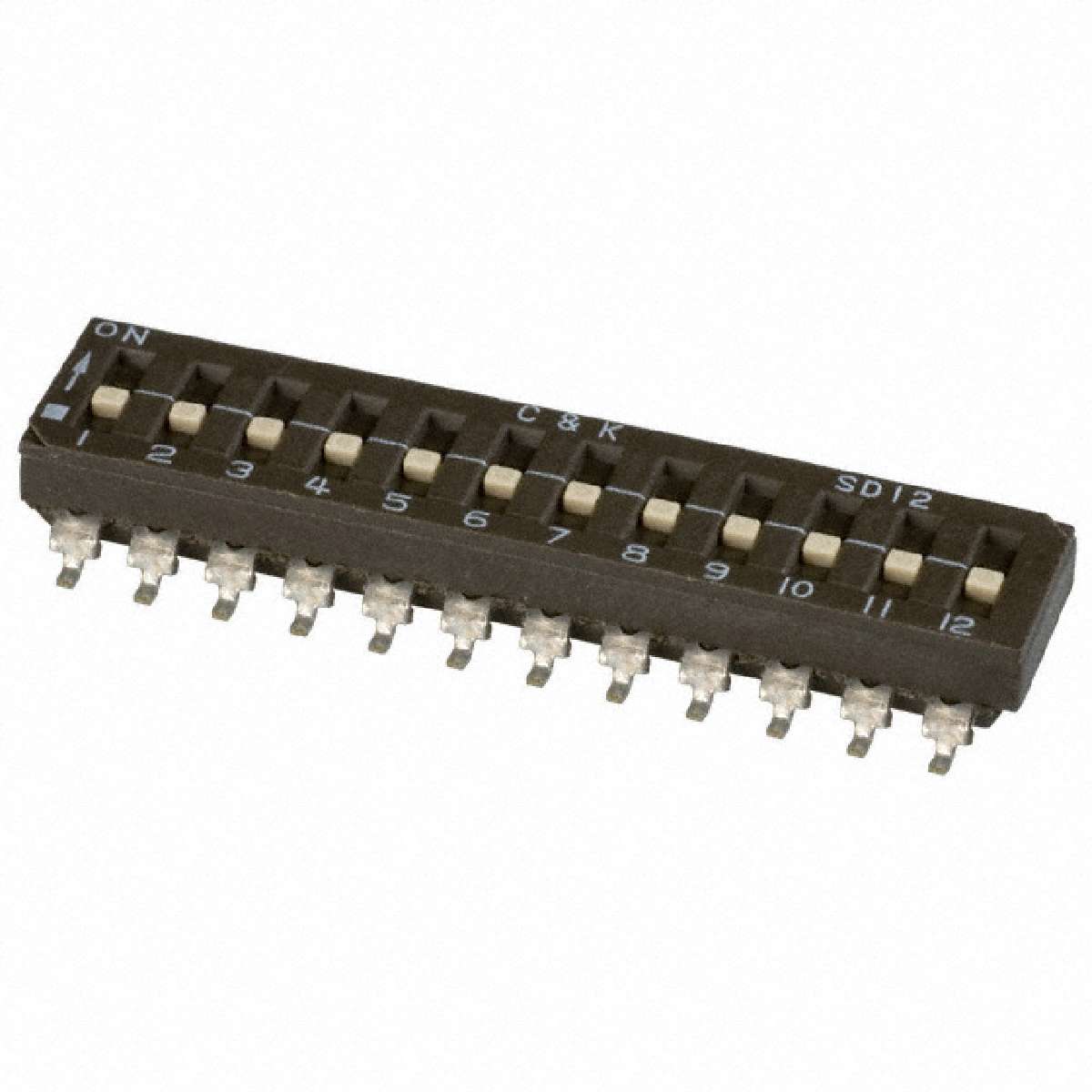

SD Series 12 Postion SPST Flush Actuator Low Profile Sealed DIP Switch
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination Style | Gull Wing |
|---|---|
| Voltage Rating | 25VDC |
| Electrical Life | 2,000 Cycles |
| Washable | Yes |
| Packaging | Tube |
| Circuit | SPST |
| Features | Tape Seal |
| Category | Switches |
| Actuator Level | Flush, Recessed |
| Mechanical Life | 2,000 Cycles |
| Series | SD |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
| Contact Finish | Gold |
| Body Material | Polyphthalamide (PPA) |
| Manufacturer | C&K Components |
| Mounting Type | Surface Mount |
| Height Above Board | 0.170" (4.33mm) |
| Actuator Type | Slide (Standard) |
| Part Status | Active |
| Contact Material | Beryllium Copper |
| Length | 1.258" (31.95mm) |
| Number of Positions | 12 |
| Family | DIP Switches |
| Current Rating | 100mA |
| ECCN | EAR99 |
