| PXP7012/02S/ST | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

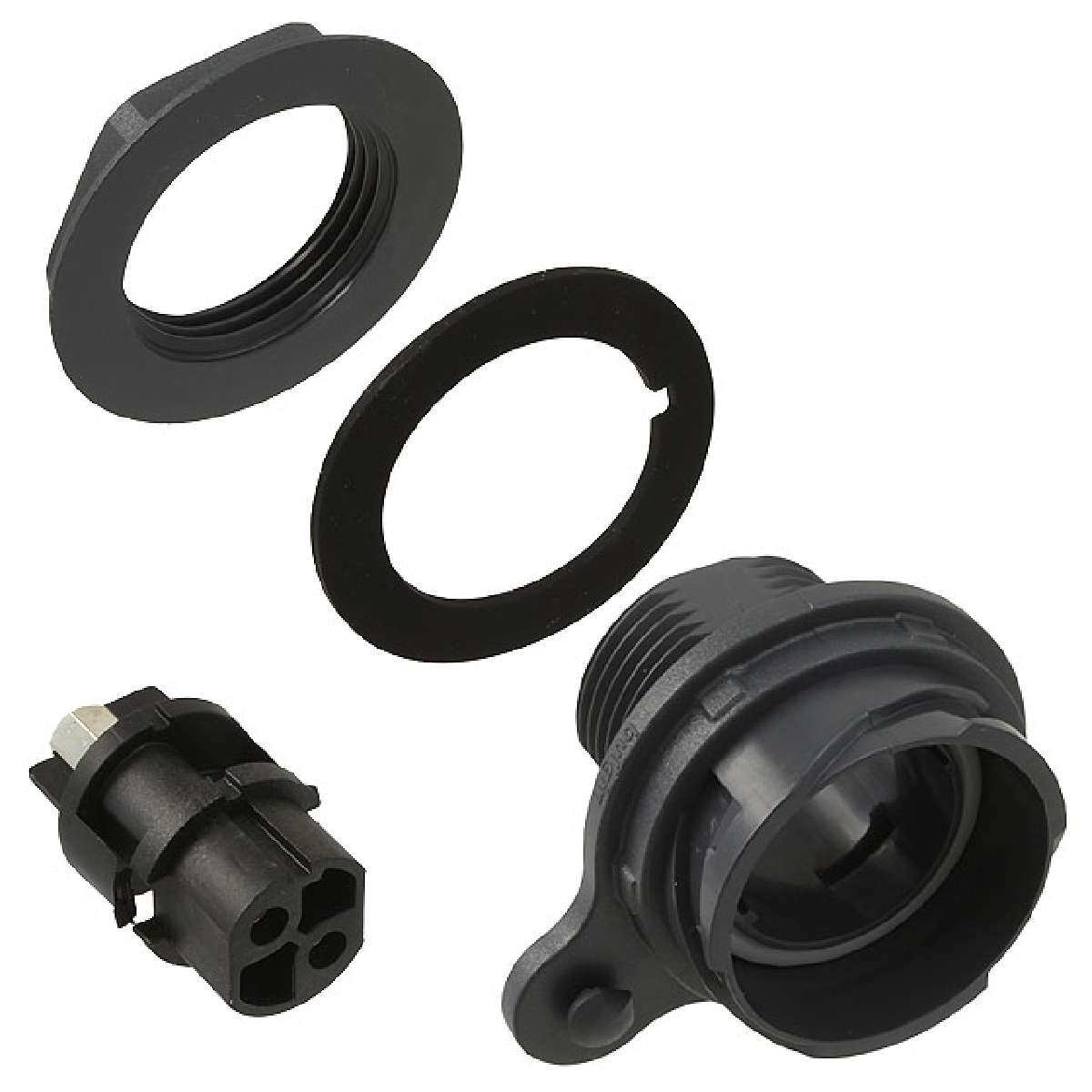

Connector: circular; socket; female; PIN: 2; Buccaneer 7000; 25A
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Screw |
|---|---|
| Orientation | Keyed |
| Contact Finish | Nickel |
| Part Status | Active |
| Manufacturer | Bulgin |
| Series | Buccaneer® 7000 |
| Family | Circular Connectors |
| Operating Temperature | -40°C ~ 120°C |
| Packaging | Bulk |
| Fastening Type | Bayonet Lock |
| Shell Material, Finish | Polycarbonate/Polybutylene Terephthalate (PBT) |
| Ingress Protection | IP66/68/69K - Dust Tight, Water Resistant, Waterproof |
| Category | Connectors, Interconnects |
| Voltage - Rated | 600V |
| Number of Positions | 2 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 25A |
