| POE16R-1AFG | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

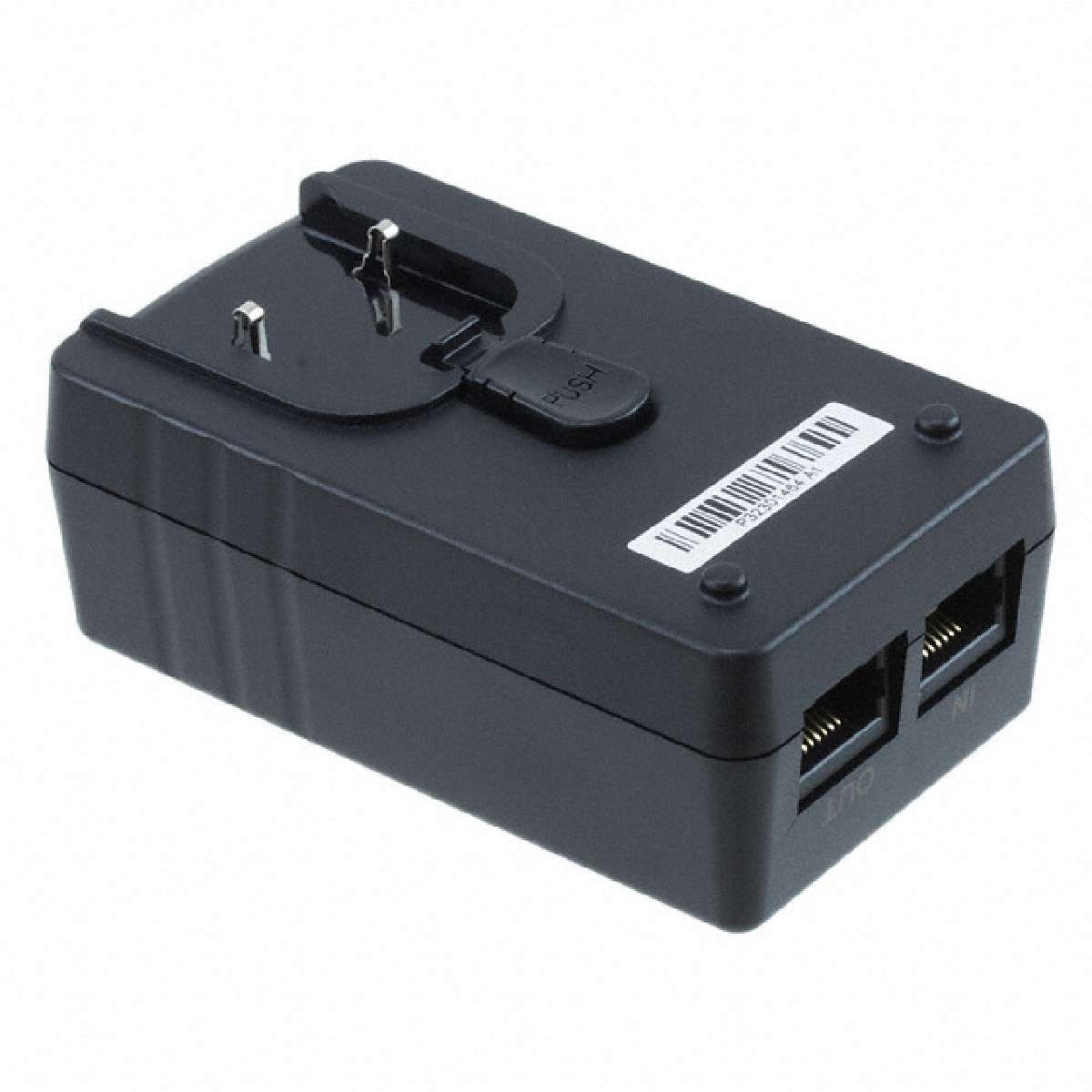

POE INJECTOR 15.4W 56V WALL
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Ports | 1 |
|---|---|
| Data Rate | 10/100/1000 Mbps |
| Type | Midspan Injector |
| Output Connector | RJ45 (Data, Power) |
| Current - Output | 275mA |
| Voltage - Output | 56V |
| Features | OCP, OVP, SCP |
| Part Status | Active |
| Efficiency | Level V |
| Weight | 0.209 lb (94.8g) |
| Family | Power over Ethernet (PoE) |
| Operating Temperature | 0°C ~ 40°C |
| Power (Watts) - Per Port | 15.4W |
| Voltage - Input | 90 ~ 264 VAC |
| Compliance | IEEE802.3af |
| Input Connector | International AC Clips (Power), RJ45 (Data) |
| Note | AC Power Clips Sold Separately |
| Approvals | CE, C-Tick, cULus, SAA |
| Size / Dimension | 3.15" L x 1.77" W x 1.29" H (80.0mm x 45.0mm x 33.0mm) |
| Category | Power Supplies - External/Internal (Off-Board) |
| Manufacturer | Phihong USA |
| Series | POE16R |
| Mounting Type | Wall Mount |
