| P1172.333NLT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

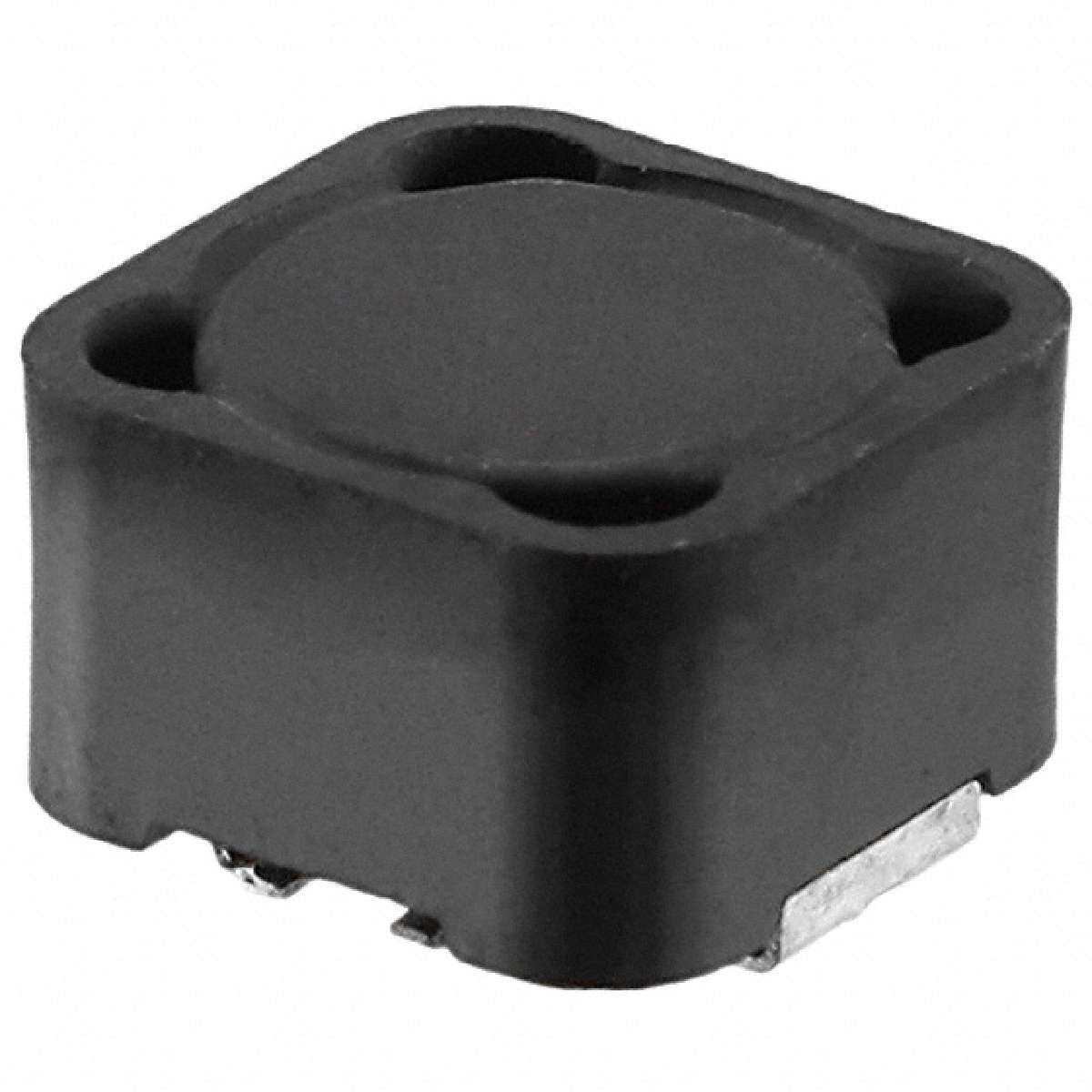

FIXED IND 33UH 3A 64.8 MOHM SMD
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Nonstandard |
|---|---|
| Tolerance | ±20% |
| Frequency - Self Resonant | 10MHz |
| Size / Dimension | 0.482" L x 0.482" W (12.24mm x 12.24mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 64.8 mOhm Max |
| Current Rating | 3A |
| Inductance | 33µH |
| Type | Wirewound |
| Current - Saturation | 3A |
| Part Status | Active |
| Manufacturer | Pulse Electronics Corporation |
| Series | P1172NL |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 130°C |
| Packaging | Cut Tape (CT) |
| Frequency - Test | 100kHz |
