| OA254AP-11-1TB(SF) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

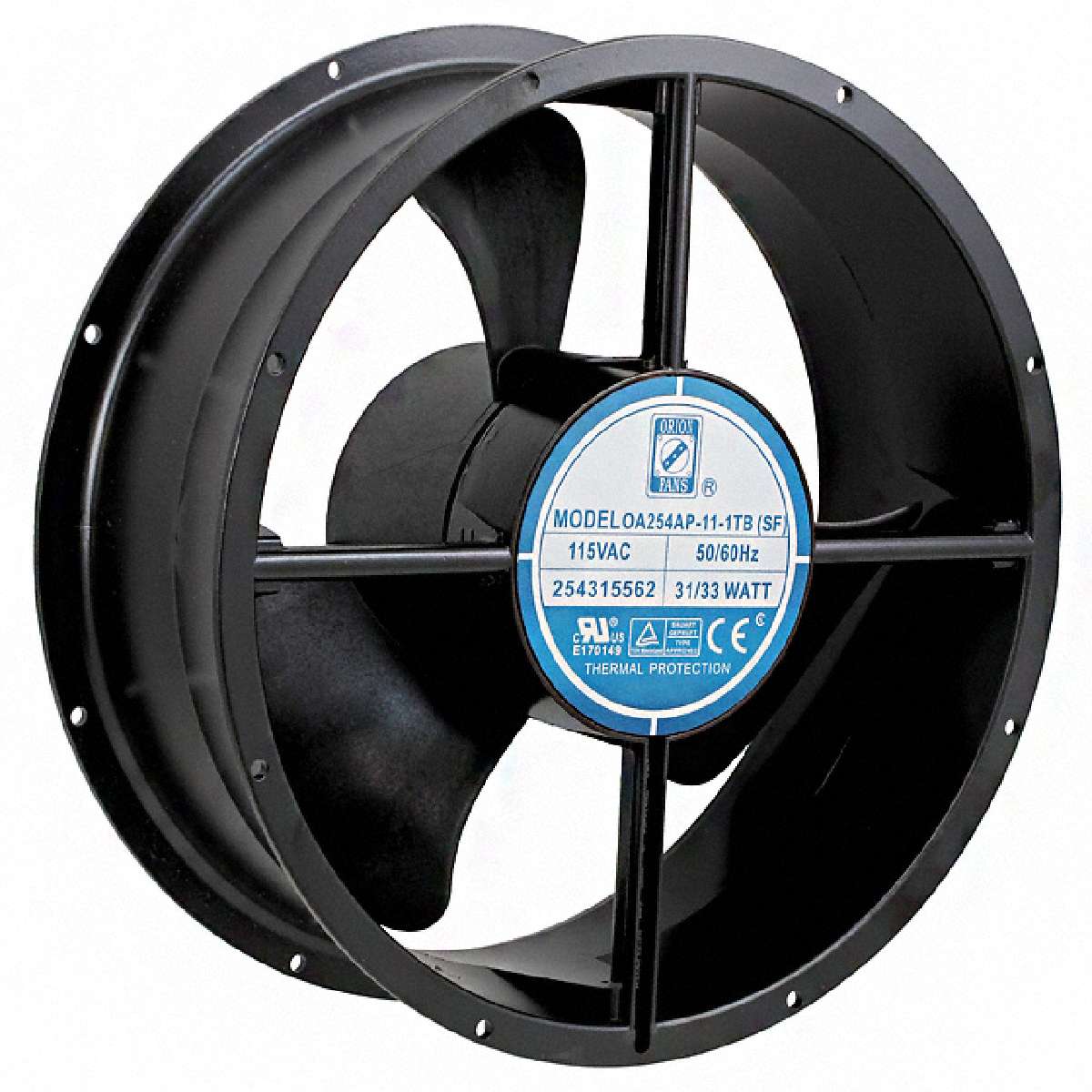

FAN AXIAL 254X89MM 115VAC TERM
|
||
| 标准包装：6 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Terminals |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Round - 254mm Dia |
| Category | Fans, Thermal Management |
| Material - Frame | Aluminum |
| Voltage - Rated | 115VAC |
| Noise | 55 dB |
| Family | AC Fans |
| Width | 89mm |
| Bearing Type | Ball |
| Current Rating | 0.290A |
| Static Pressure | 0.400 in H2O (99.6 Pa) |
| Features | Salt Fog Rated |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 550.0 CFM (15.58m³/min) |
| Series | OA254AP |
| Power (Watts) | 33W |
| RPM | 1650 RPM |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| Fan Type | Tubeaxial |
