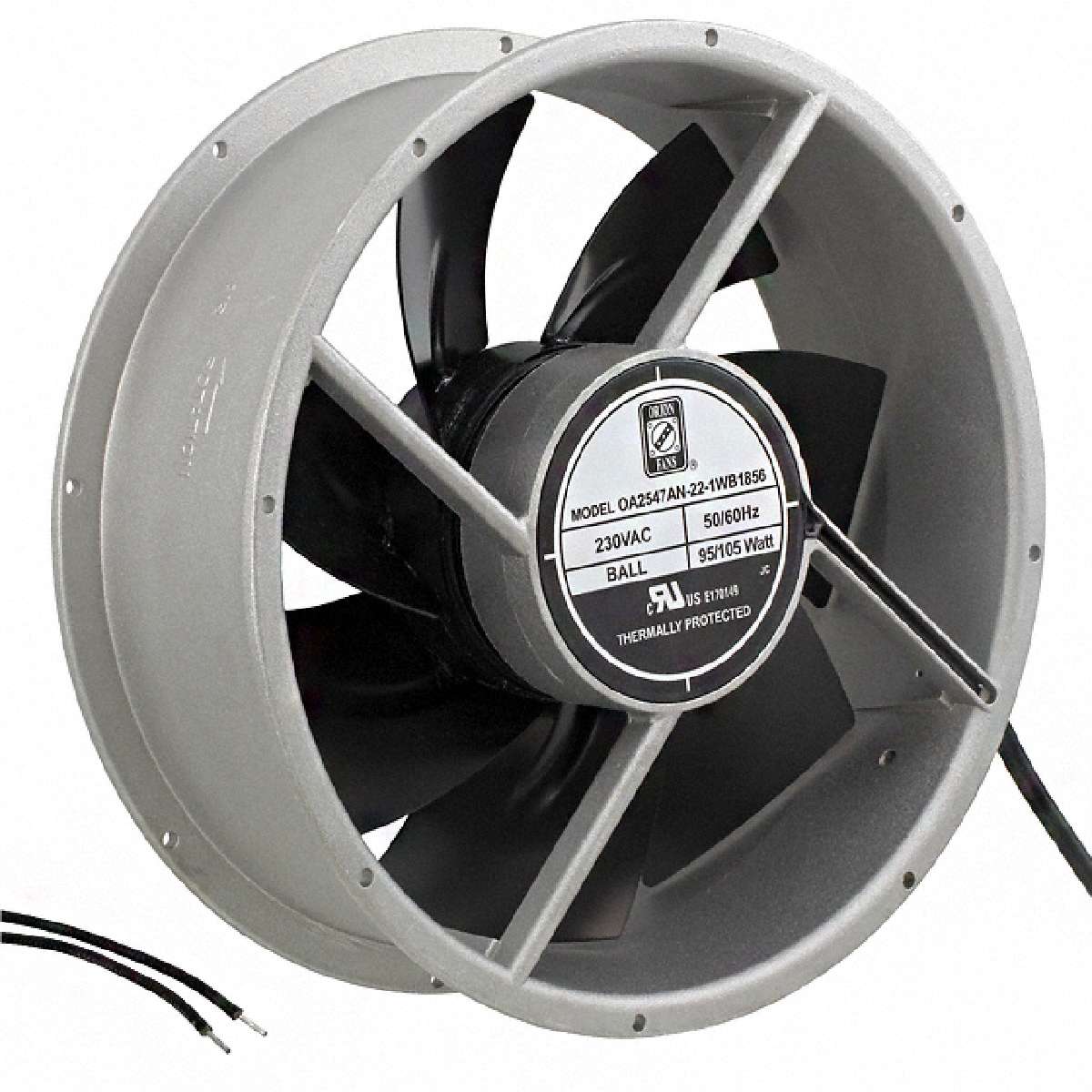

| OA2547AN-22-1WB1856 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
FAN AXIAL 254X89MM 230VAC WIRE
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Metal |
| Voltage Range | 200 ~ 240VAC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 1000.0 CFM (28.32m³/min) |
| Voltage - Rated | 230VAC |
| Noise | 70 dB(A) |
| Family | AC Fans |
| Width | 89mm |
| Bearing Type | Ball |
| Static Pressure | 0.600 in H2O (149.5 Pa) |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Size / Dimension | Round - 254mm Dia |
| Category | Fans, Thermal Management |
| Material - Frame | Aluminum |
| Weight | 5.9 lbs (2.7kg) |
| Series | OA2547AN |
| Power (Watts) | 105W |
| RPM | 3250 RPM |
| Operating Temperature | -22 ~ 176°F (-30 ~ 80°C) |
| Fan Type | Tubeaxial |
