| OA172SAP-22-1TBXC(SF) | ||
|---|---|---|
|
|
||
|
||

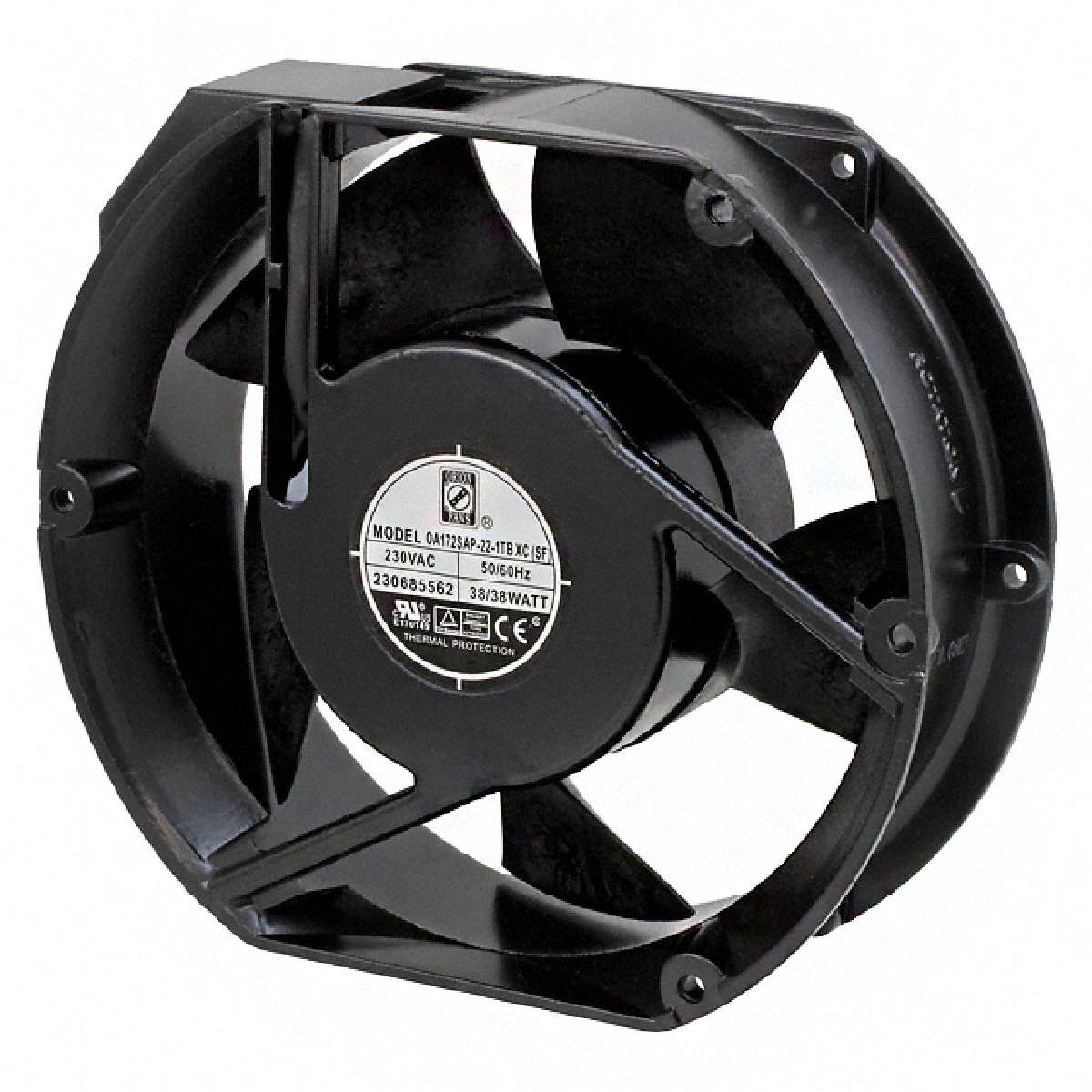

| Product description : OA172S Series 3400 RPM 172 x 150 x 55 mm 230 V 293 CFM Salt Fog Fan | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | 2 Terminals |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Voltage Range | 207 ~ 253VAC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 293.0 CFM (8.30m³/min) |
| Series | OA172SAP |
| Power (Watts) | 38W |
| RPM | 3400 RPM |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
| Static Pressure | 0.900 in H2O (224.2 Pa) |
| Features | Salt Fog Rated |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Aluminum |
| Voltage - Rated | 230VAC |
| Noise | 60 dB |
| Family | AC Fans |
| Width | 55mm |
| Bearing Type | Ball |
| Current Rating | 0.170A |
