| OA172AP-22-1TB1855 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

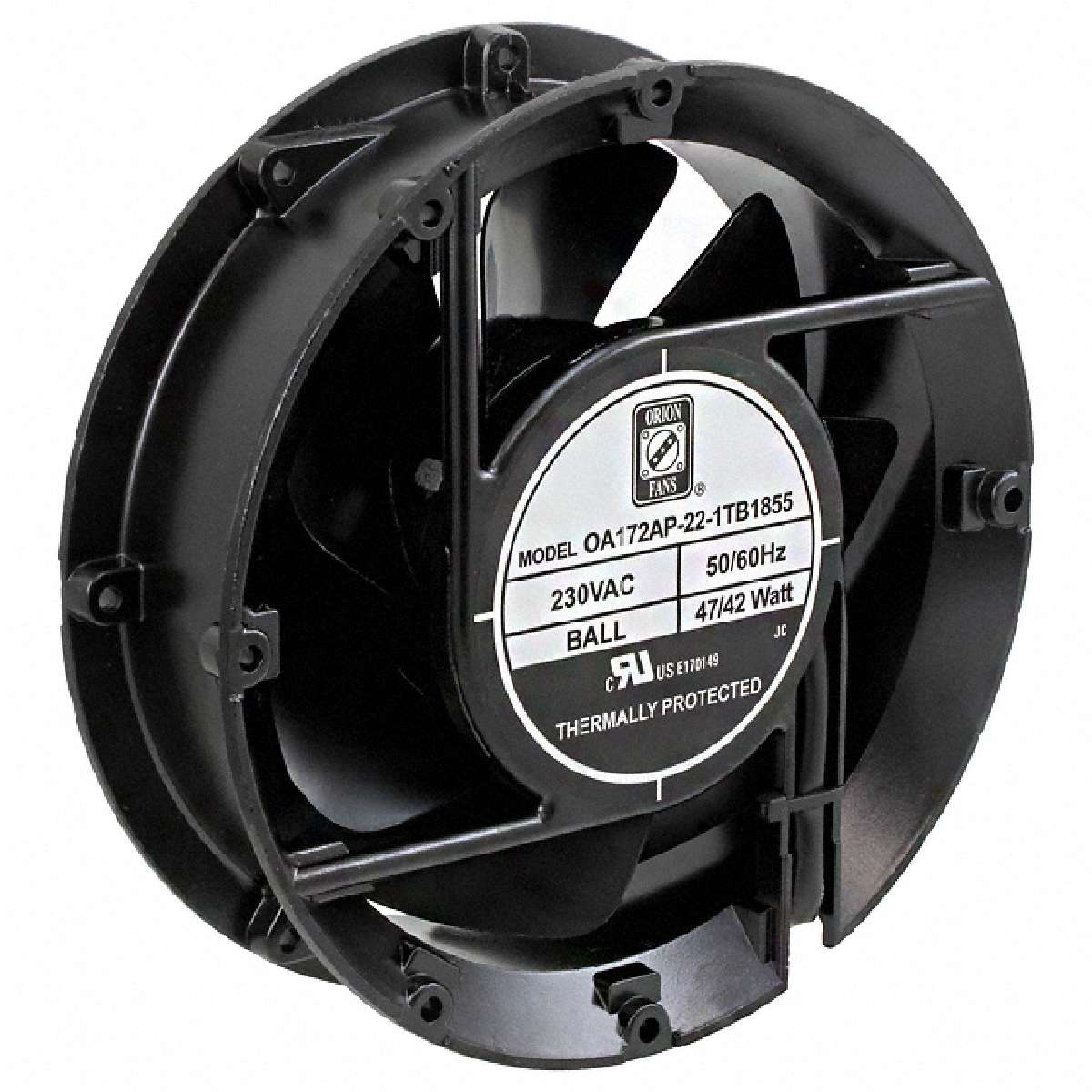

FAN AXIAL 172X51MM 230VAC TERM
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Terminals |
|---|---|
| Material - Blade | Metal |
| Voltage Range | 200 ~ 240VAC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 215.0 CFM (6.08m³/min) |
| Voltage - Rated | 230VAC |
| Noise | 59 dB(A) |
| Family | AC Fans |
| Width | 51mm |
| Bearing Type | Ball |
| Static Pressure | 0.510 in H2O (127.0 Pa) |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Size / Dimension | Round - 172mm Dia |
| Category | Fans, Thermal Management |
| Material - Frame | Aluminum |
| Weight | 3 lbs (1.4kg) |
| Series | OA172AP |
| Power (Watts) | 42W |
| RPM | 3200 RPM |
| Operating Temperature | -22 ~ 176°F (-30 ~ 80°C) |
| Fan Type | Tubeaxial |
