| MMF003216 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

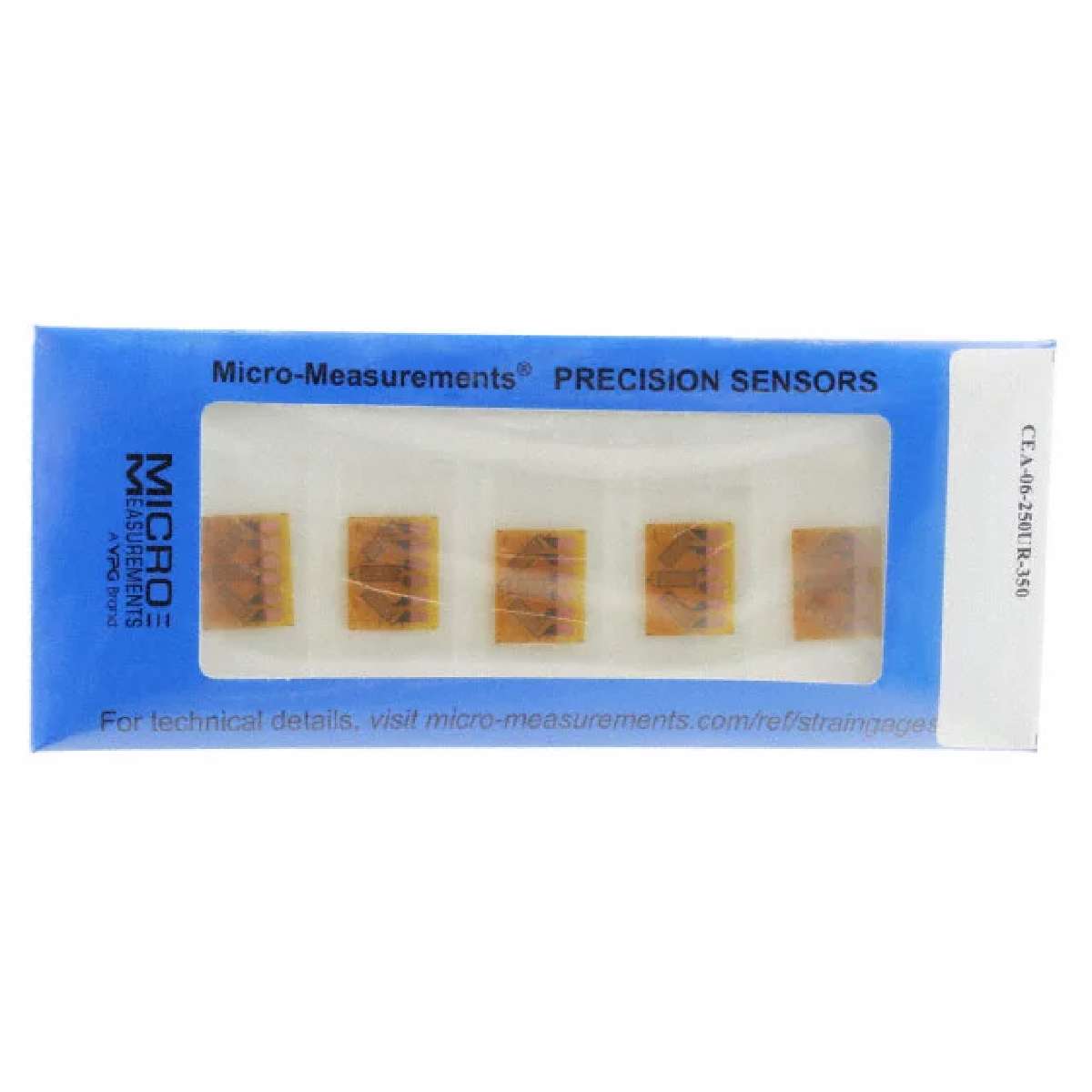

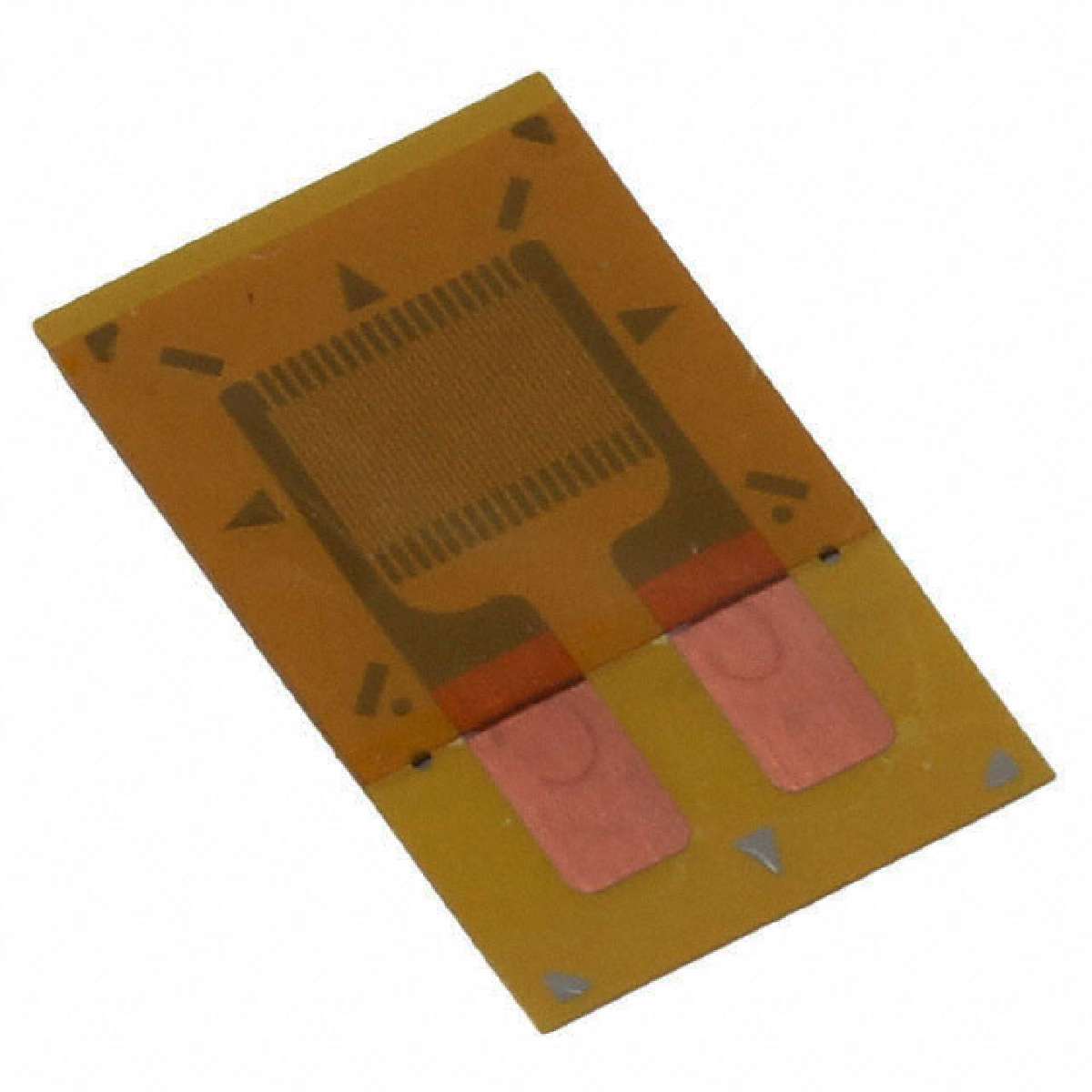

STRAIN GAUGE 350 OHM RECT 1=5PC
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width - Overall Pattern | 0.760" (19.30mm) |
|---|---|
| Length - Overall Pattern | 0.500" (12.70mm) |
| Part Status | Active |
| Manufacturer | Micro-Measurements (Division of Vishay Precision Group) |
| Length - Overall | 0.65" (16.5mm) |
| Width - Active | 0.120" (3.05mm) per section |
| Family | Strain Gauges |
| Length - Active | 0.250" (6.35mm) per section |
| Width - Overall | 0.80" (20.3mm) |
| Strain Range | ±5% |
| Category | Sensors, Transducers |
| Resistance Tolerance | ±0.4% |
| Resistance (Ohms) | 350 |
| Series | CEA |
| Pattern Type | Rectangular Rosette |
| Operating Temperature | -100 ~ 350°F (-75 ~ 175°C) |
