| SBT200PC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

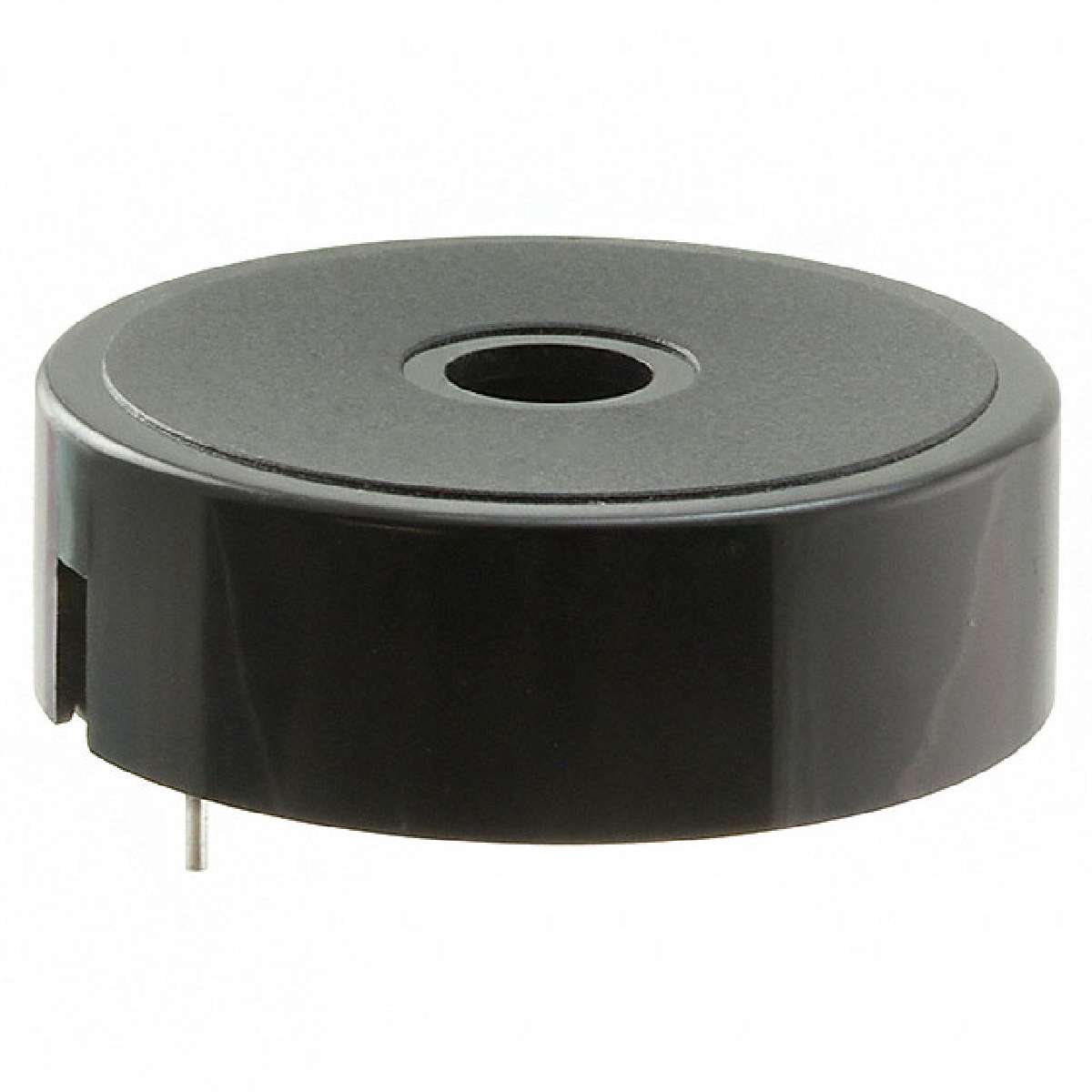

Ø44.5 x 14 mm 30 VAC 95 dB 200 Hz PC Pin Piezo Medical Transducer
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | PC Pins |
|---|---|
| Ratings | Medical |
| Voltage Range | 30V (Max) |
| Part Status | Active |
| Manufacturer | Mallory Sonalert Products Inc. |
| Height - Seated (Max) | * |
| Operating Mode | Single Tone |
| Frequency | 200Hz |
| Current - Supply | 1.5mA |
| Packaging | Bulk |
| Input Type | Peak-Peak Signal |
| Sound Pressure Level | 85dB @ 5V, 10cm |
| Approvals | cUL, UL |
| Size / Dimension | 44.50mm Dia |
| Category | Audio Products |
| Port Location | Top |
| Family | Alarms, Buzzers, and Sirens |
| Mounting Type | Through Hole |
| Operating Temperature | -30°C ~ 65°C |
| Technology | Piezo |
| Driver Circuitry | Transducer, Externally Driven |
| ECCN | EAR99 |
