| Contact Finish | Gold |
|---|---|
| Number of Cores per Jack | 4 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Through Hole |
| Contact Finish Thickness | 6µin (0.152µm) |
| Height Above Board | 0.543" (13.80mm) |
| Number of Ports | 1 |
| Orientation | 90° Angle (Right) |
| Features | Board Lock |
| Contact Material | Copper Alloy |
| Family | Modular Connectors - Jacks With Magnetics |
| Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 |
| LED Color | Green - Yellow |
| Manufacturer | Pulse Electronics Corporation |
| Applications | 10/100 Base-TX, AutoMDIX |
| Shielding | Shielded, EMI Finger |
| Packaging | Tray |
| Termination | Solder |
| Tab Direction | Down |
| Product Attributes | Select All |
| Category | Connectors, Interconnects |
| Series | PULSEJACK™ JXD1 |
| Shield Material | Brass |

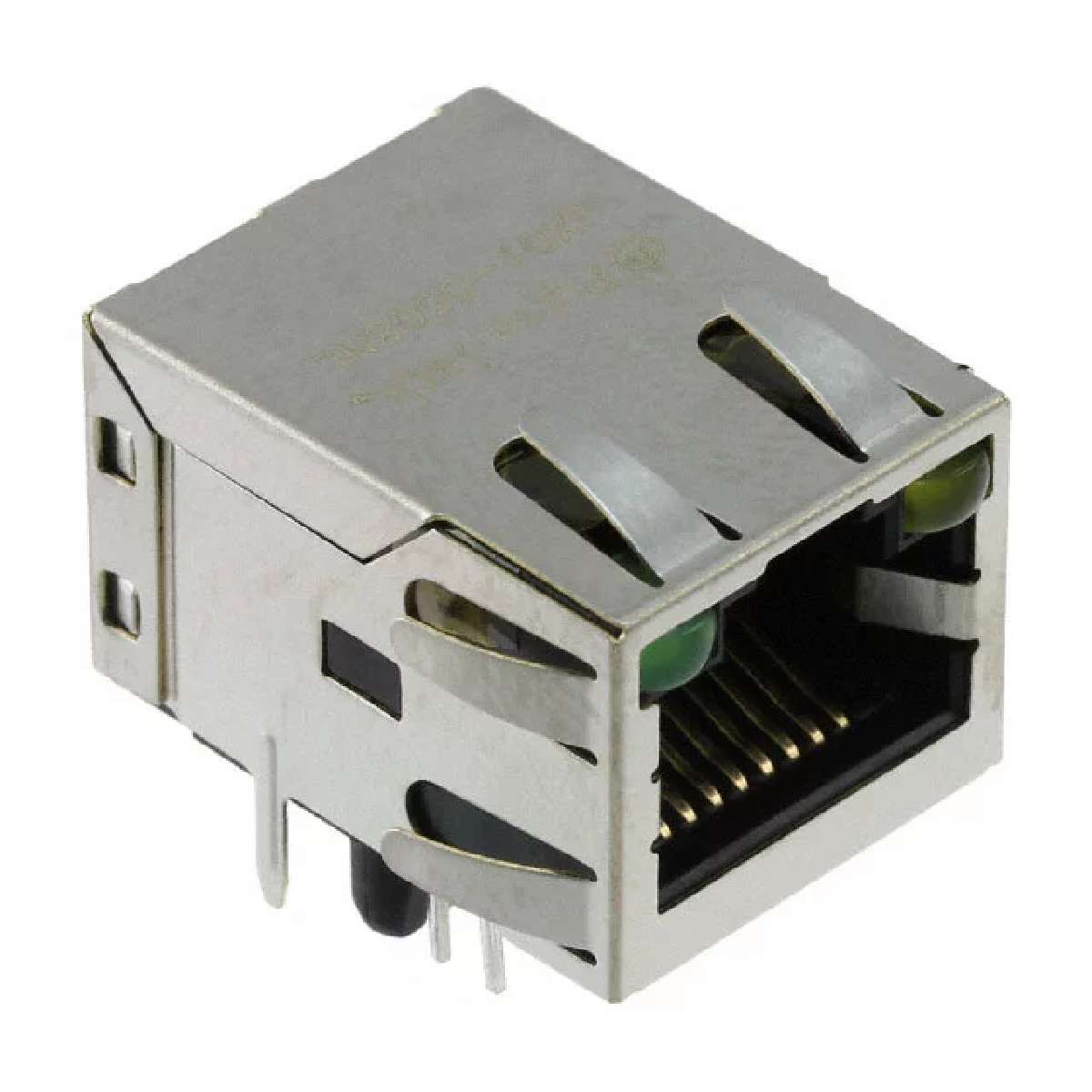

| Connector Type | RJ45 |
You can comment after logging in.
Availability3Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 352 | Update On 2025-07-22 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
