| CQY37N | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

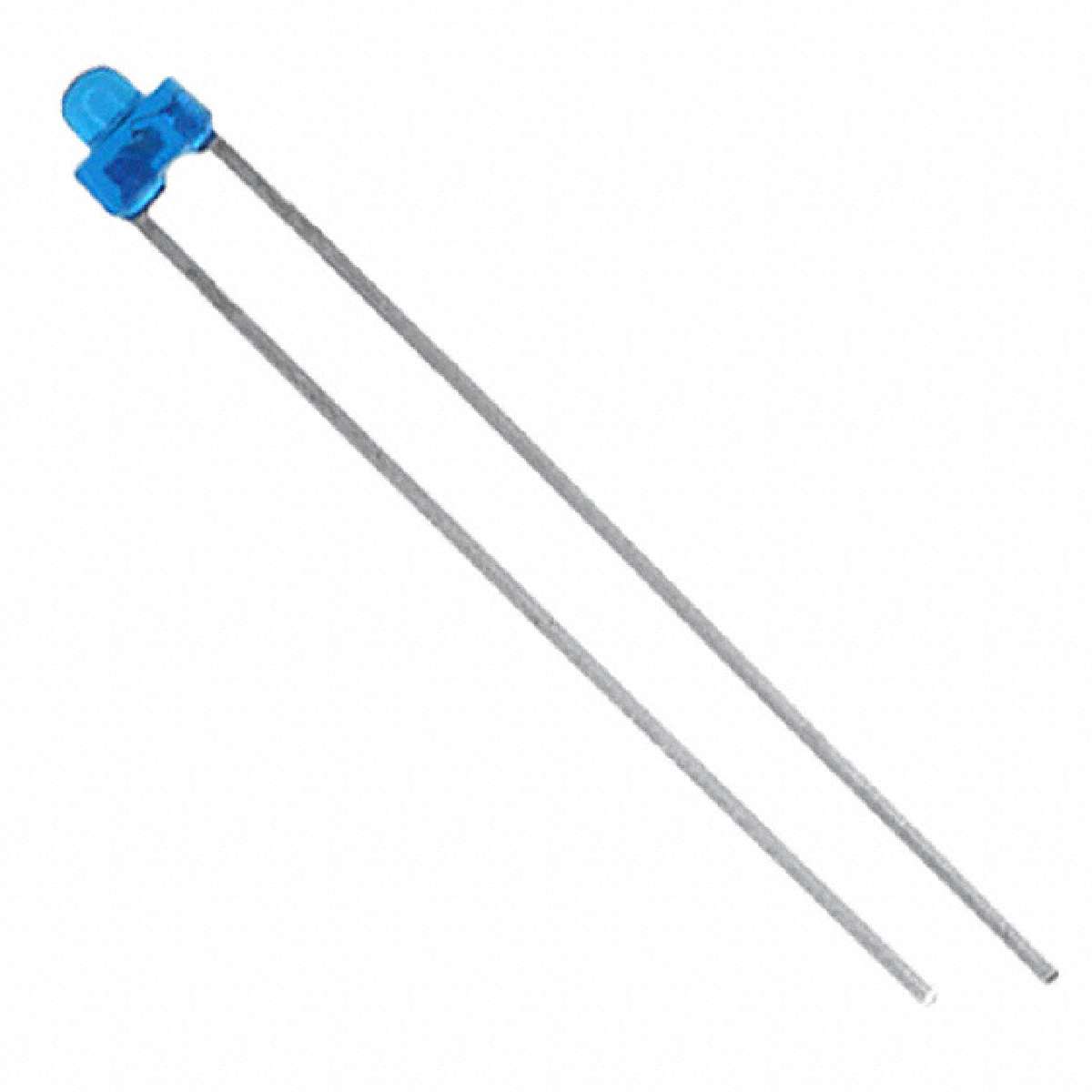

IR transmitter; 1.8mm; 950nm; 2.2mW; 12°; THT
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Viewing Angle: | 12 deg |
|---|---|
| Beam Angle: | 12 deg |
| Power Rating: | 170 mW |
| Illumination Color: | Infrared |
| Lens Shape: | Circular |
| Mounting Style: | Through Hole |
| Vf - Forward Voltage: | 1.6 V |
| Length: | 3.3 mm |
| Manufacturer: | Vishay |
| Factory Pack Quantity: | 5000 |
| RoHS: | Details |
| Rise Time: | 400 ns |
| Wavelength: | 950 nm |
| Packaging: | Tube |
| Width: | 2.4 mm |
| Minimum Operating Temperature: | - 25 C |
| Height: | 2.9 mm |
| Lens Dimensions: | 1.8 mm x 1.8 mm x 1.55 mm |
| Radiant Intensity: | 5 mW/sr |
| Fall Time: | 450 ns |
| If - Forward Current: | 50 mA |
| Vr - Reverse Voltage: | 5 V |
| Brand: | Vishay Semiconductors |
| Product Category: | Infrared Emitters |
| Maximum Operating Temperature: | + 100 C |
| ECCN | EAR99 |
| 数据手册： |
|---|
