| BK-S505SC-10-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

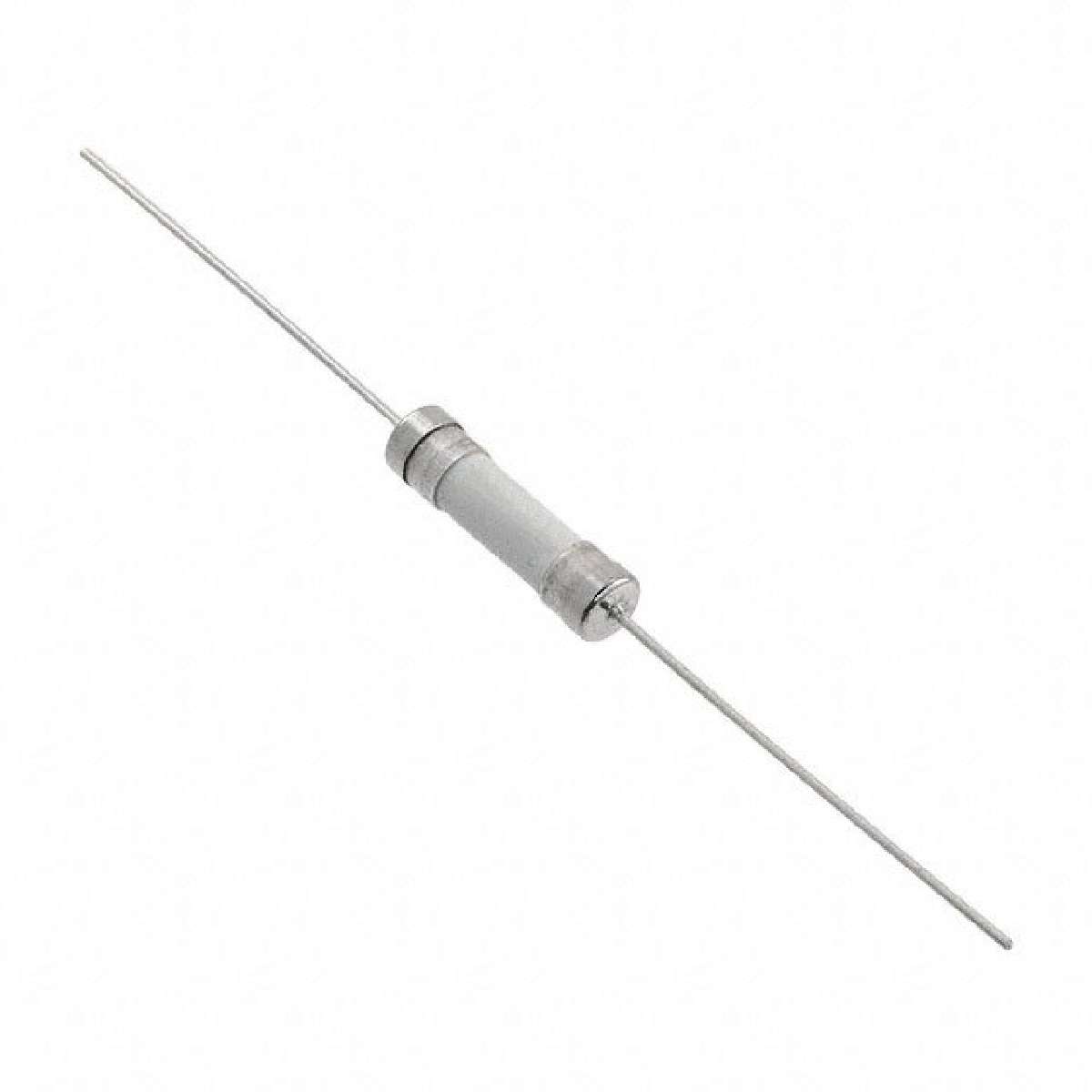

FUSE CERAMIC 10A 250VAC 5X20MM
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 5mm x 20mm (Axial) |
|---|---|
| Approvals | BSI, CCC/CQC, CSA, cURus, IMQ, KC, PSE/JET, SEMKO, VDE |
| Part Status | Active |
| Response Time | Slow |
| DC Cold Resistance | 0.0061 Ohm |
| Series | S505 |
| Mounting Type | Through Hole |
| Breaking Capacity @ Rated Voltage | 1.5kA |
| Current Rating | 10A |
| Voltage Rating - AC | 250V |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Fuse Type | Cartridge, Ceramic |
| Category | Circuit Protection |
| Manufacturer | Eaton |
| Family | Fuses |
| Melting I²t | 397 |
| Packaging | Bulk |
