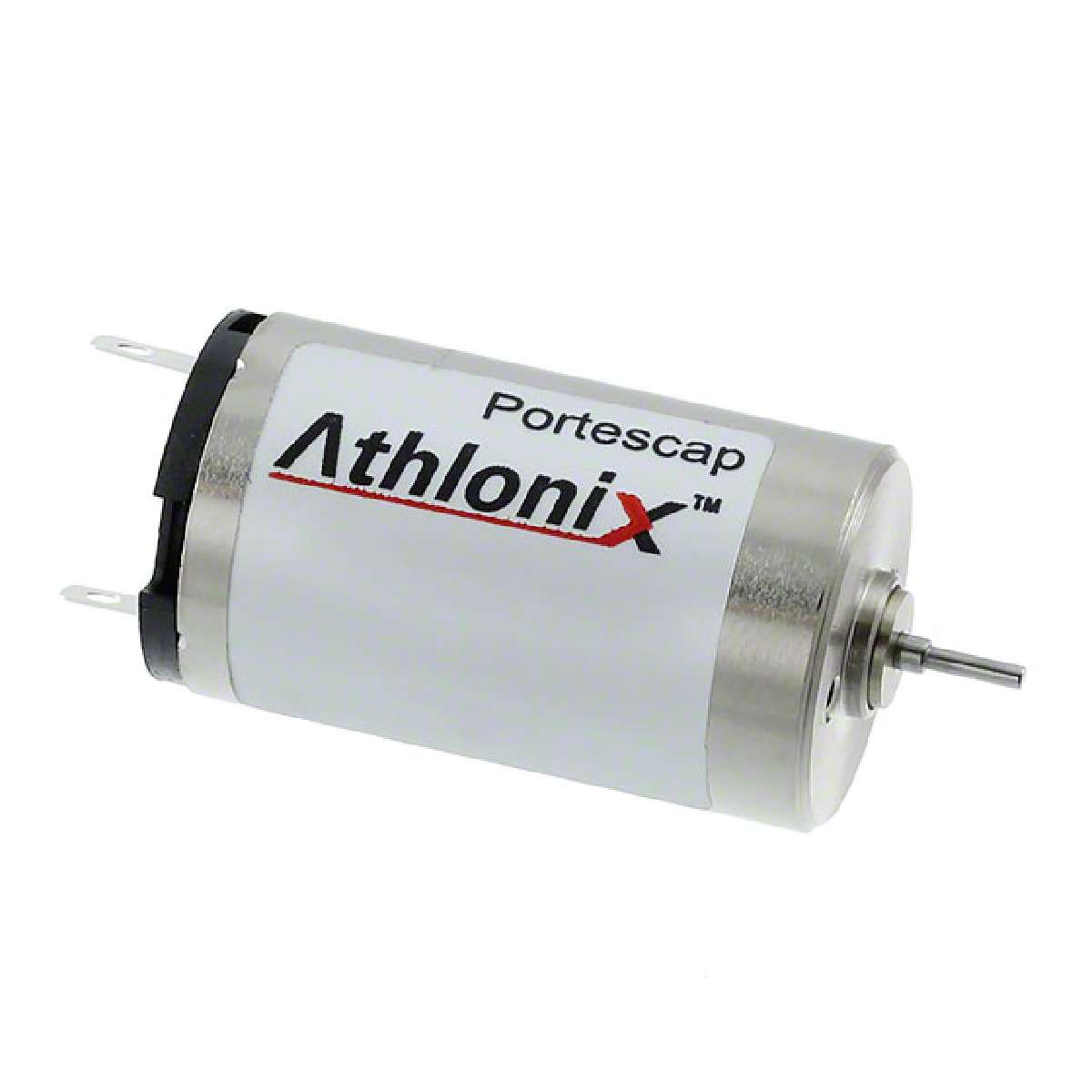

| Type | DC Motor |
|---|---|
| Function | Standard |
| Termination Style | Solder Tab |
| Size / Dimension | Round - 0.629" Dia (16.00mm) |
| Category | Motors, Solenoids, Driver Boards/Modules |
| Motor Type | Brushed |
| Voltage - Rated | 9VDC |
| Series | 16N78 Athlonix |
| RPM | 10000 RPM |
| Operating Temperature | -30°C ~ 85°C |
| Mounting Hole Spacing | 0.394" (10.00mm) |
| Torque - Rated (oz-in / mNm) | 0.94 / 6.6 |
| Diameter - Shaft | 0.059" (1.50mm) |
| Part Status | Discontinued |
| Manufacturer | Portescap |
| Weight | 0.053 lb (24.04g) |
| Power - Rated | 5.2W |
| Family | Motors - AC, DC |
| Length - Shaft and Bearing | 0.295" (7.50mm) |
