| 13N88-213E.1 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

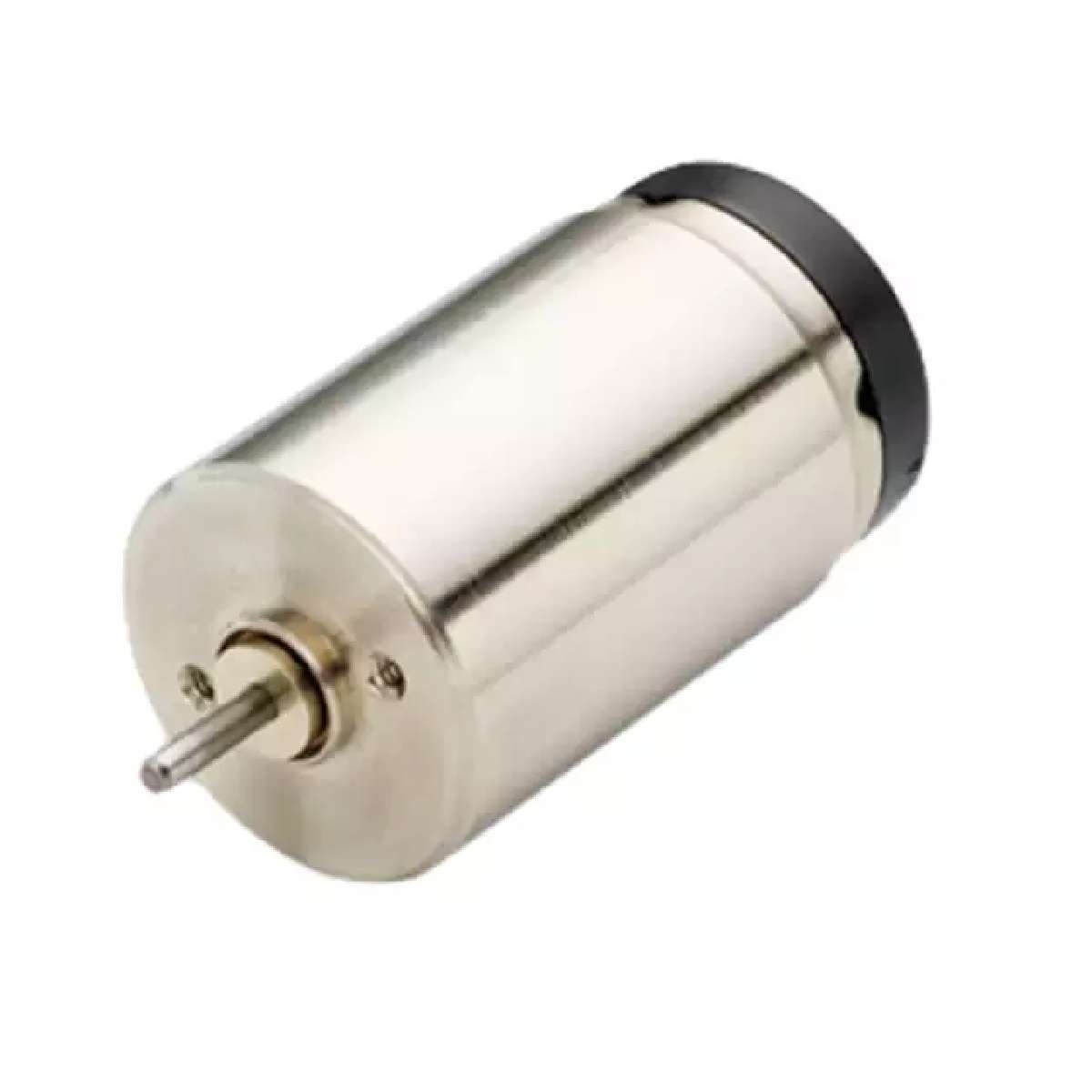

BRUSH MOTOR
|
||
| 标准包装：50 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Type | DC Motor |
|---|---|
| Torque - Rated (oz-in / mNm) | 0.43 / 3.03 |
| Diameter - Shaft | 0.059" (1.50mm) |
| Part Status | Active |
| Manufacturer | Portescap |
| Weight | 0.04 lb (18.14g) |
| Power - Rated | 2.5W |
| Family | Motors - AC, DC |
| Length - Shaft and Bearing | 0.244" (6.20mm) |
| Function | Standard |
| Termination Style | Solder Tab |
| Size / Dimension | Round - 0.511" Dia (13.00mm) |
| Category | Motors, Solenoids, Driver Boards/Modules |
| Motor Type | Brushed |
| Voltage - Rated | 6VDC |
| Series | 13N88 |
| RPM | 12300 RPM |
| Operating Temperature | -30°C ~ 85°C |
