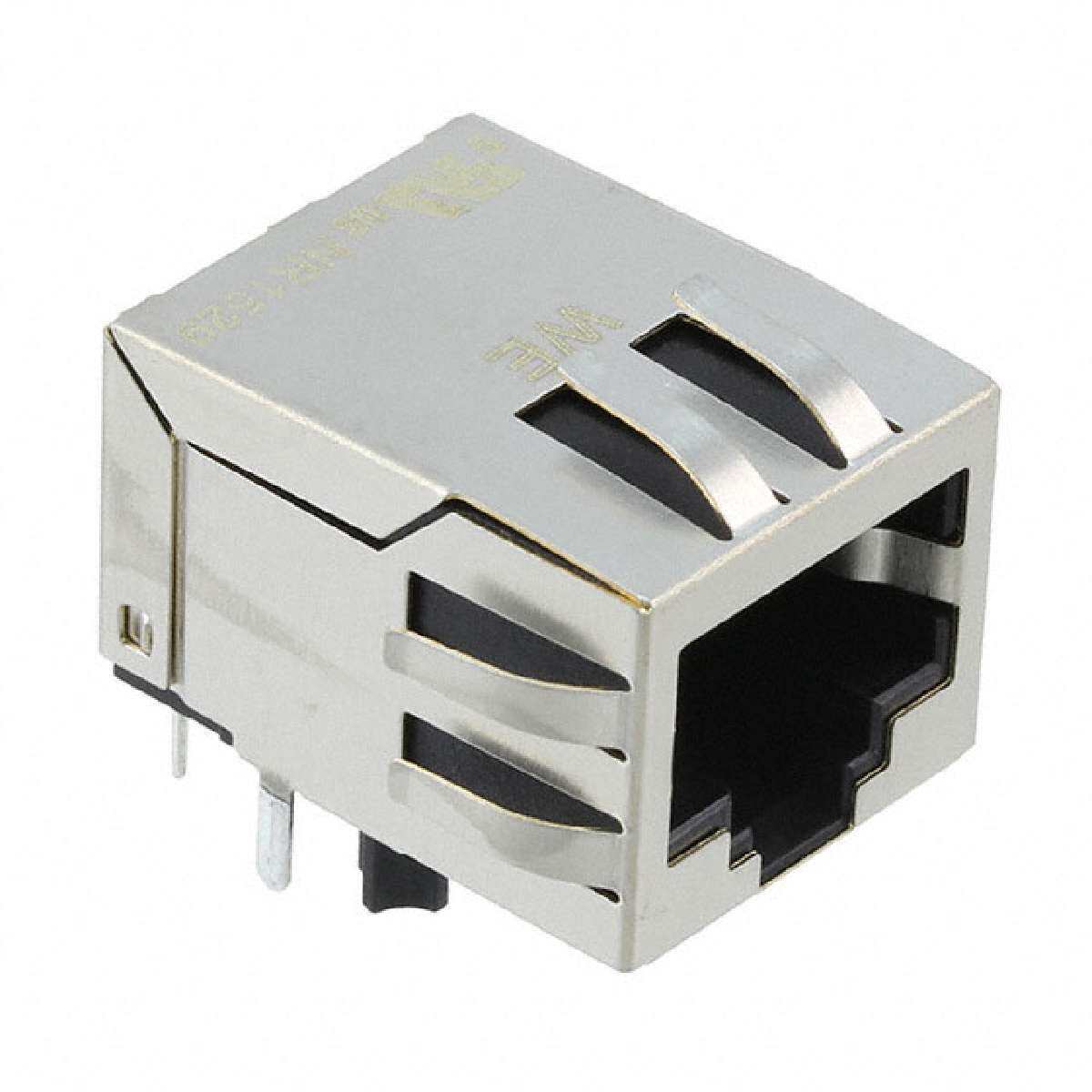

| 7499111001A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
CONN MAGJACK 1PORT 1000 BASE-T
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Contact Finish | Gold |
|---|---|
| Number of Cores per Jack | 8 |
| Housing Material | Thermoplastic |
| Mounting Type | Through Hole |
| Contact Finish Thickness | 30µin (0.76µm) |
| Height Above Board | 0.549" (13.95mm) |
| Number of Ports | 1 |
| Orientation | 90° Angle (Right) |
| Part Status | Active |
| Contact Material | Tin |
| Family | Modular Connectors - Jacks With Magnetics |
| Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 |
| LED Color | Does Not Contain LED |
| Manufacturer | Wurth Electronics Inc |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Shielding | Shielded, EMI Finger |
| Packaging | Tube |
| Termination | Solder |
| Tab Direction | Down |
| Features | Board Guide |
| Category | Connectors, Interconnects |
| Series | WE-RJ45 |
| Shield Material | Copper Alloy |
| Connector Type | RJ45 |
