| 61203423021 | ||
|---|---|---|
|
|
||
|
||

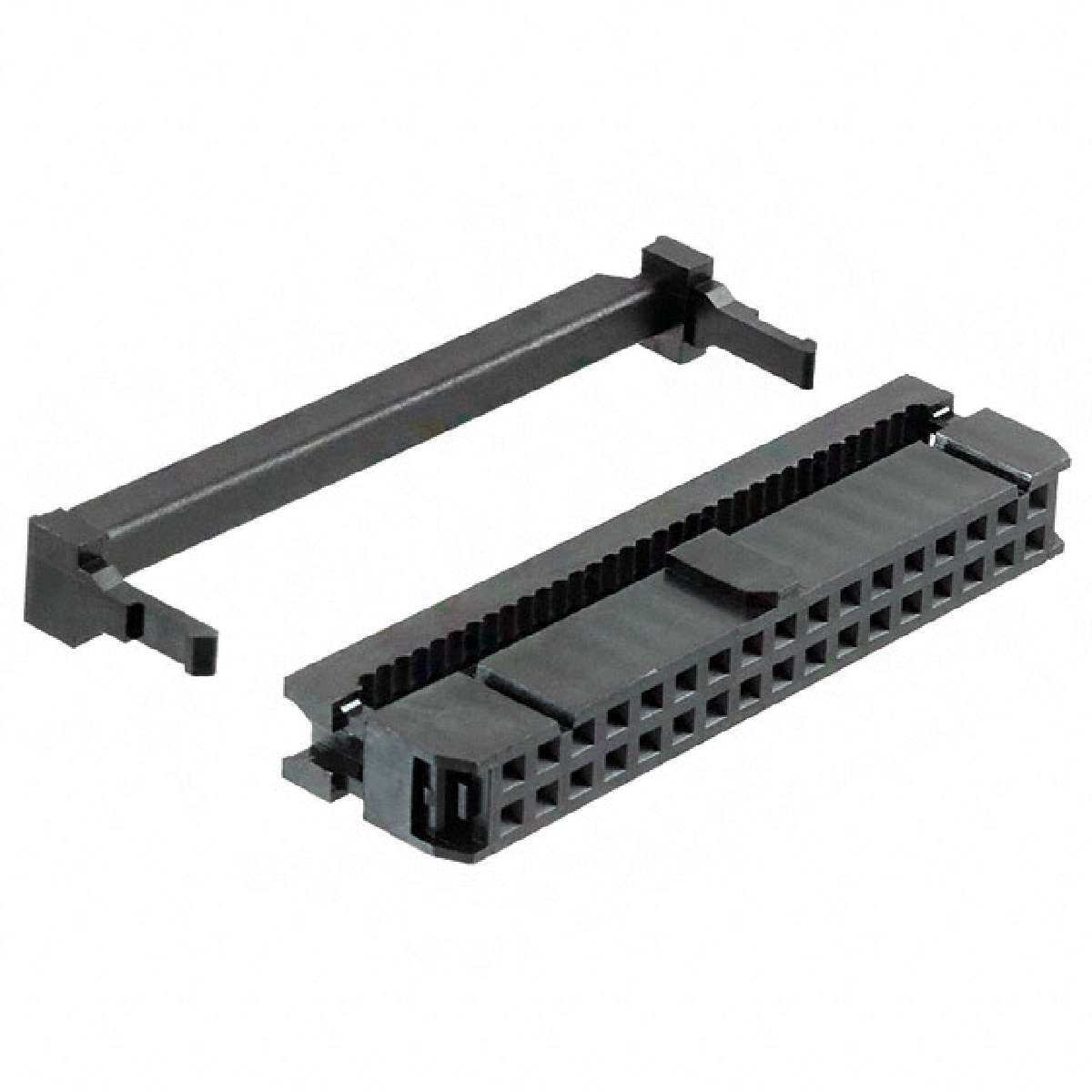

| Product description : CONN HEAD 34 POS 2.54 LEVER W/SR | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Product: | Headers |
|---|---|
| Packaging: | Tray |
| Voltage Rating: | 250 V |
| Number of Positions: | 34 Position |
| Contact Material: | Copper Alloy |
| Number of Rows: | 2 Row |
| Mounting Style: | Cable |
| Latching Type: | Unlatched |
| Series: | WR-BHD |
| Brand: | Wurth Electronics |
| Termination Style: | IDC |
| Product Category: | Headers & Wire Housings |
| Contact Gender: | Socket (Female) |
| Type: | Ribbon Cable |
| Row Spacing: | 2.54 mm |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Operating Temperature Range: | - 40 C to + 125 C |
| Pitch: | 2.54 mm |
| Application: | IDC, Wire to Board |
| Contact Plating: | Gold |
| Mounting Angle: | Straight |
| Manufacturer: | Wurth Electronics |
| Factory Pack Quantity: | 30 |
| RoHS: | Details |
| Flammability Rating: | UL 94 V-0 |
| Current Rating: | 1 A |
| Insulation Resistance: | 1 GOhms |
