| 30GT2R82-234E.4 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

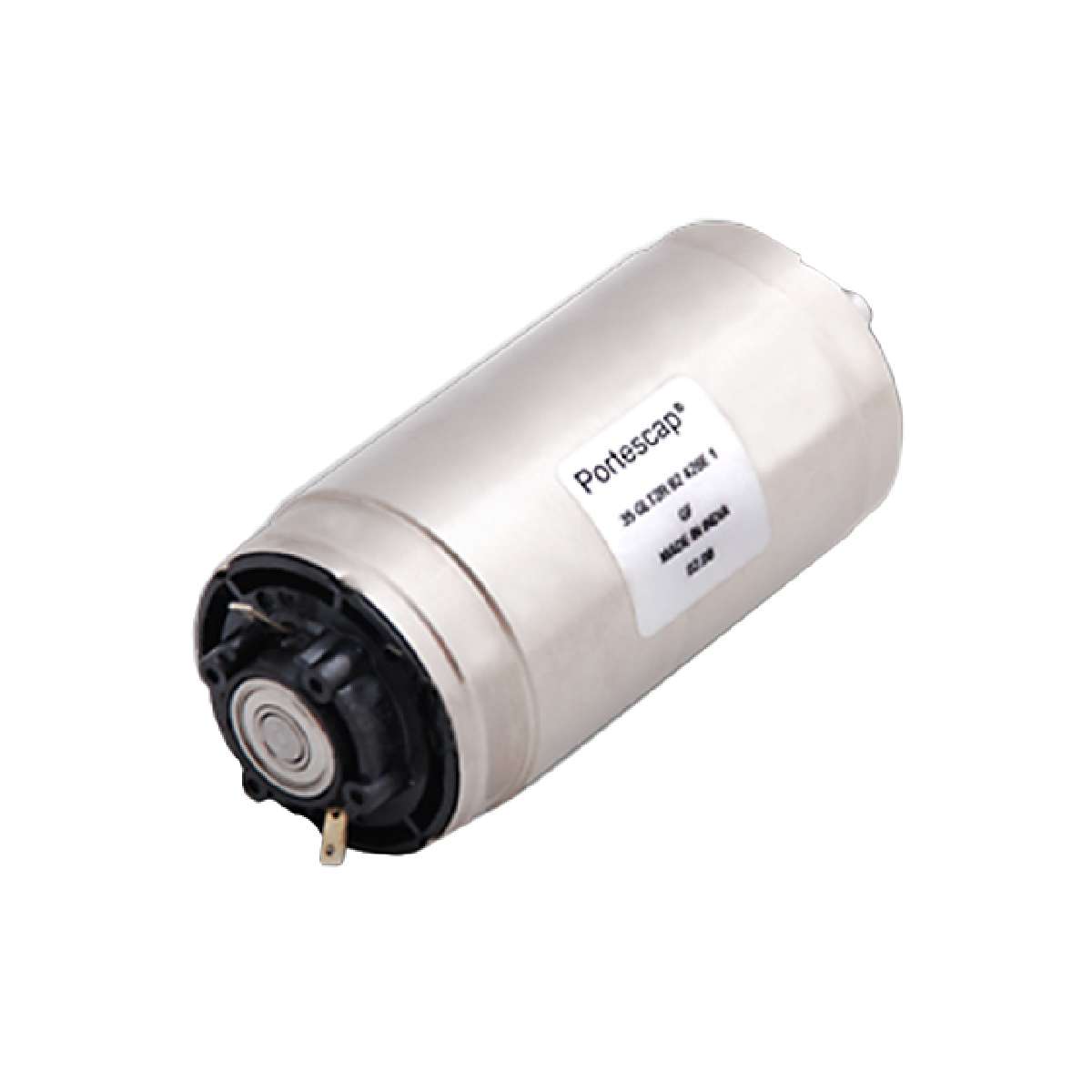

BRUSH MOTOR
|
||
| 标准包装：50 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Type | DC Motor |
|---|---|
| Function | Standard |
| Termination Style | Solder Tab |
| Size / Dimension | Round - 1.181" Dia (30.00mm) |
| Category | Motors, Solenoids, Driver Boards/Modules |
| Motor Type | Brushed |
| Voltage - Rated | 35VDC |
| Series | 30GT2R82 |
| RPM | 10000 RPM |
| Operating Temperature | -30°C ~ 85°C |
| Mounting Hole Spacing | 0.787" (20.00mm) |
| Torque - Rated (oz-in / mNm) | 119.95 / 847 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Part Status | Active |
| Manufacturer | Portescap |
| Weight | 0.684 lb (310.26g) |
| Power - Rated | 82W |
| Family | Motors - AC, DC |
| Length - Shaft and Bearing | 0.492" (12.50mm) |
