H11L2SR2M specifications -Ameya360 electronic components purchase network

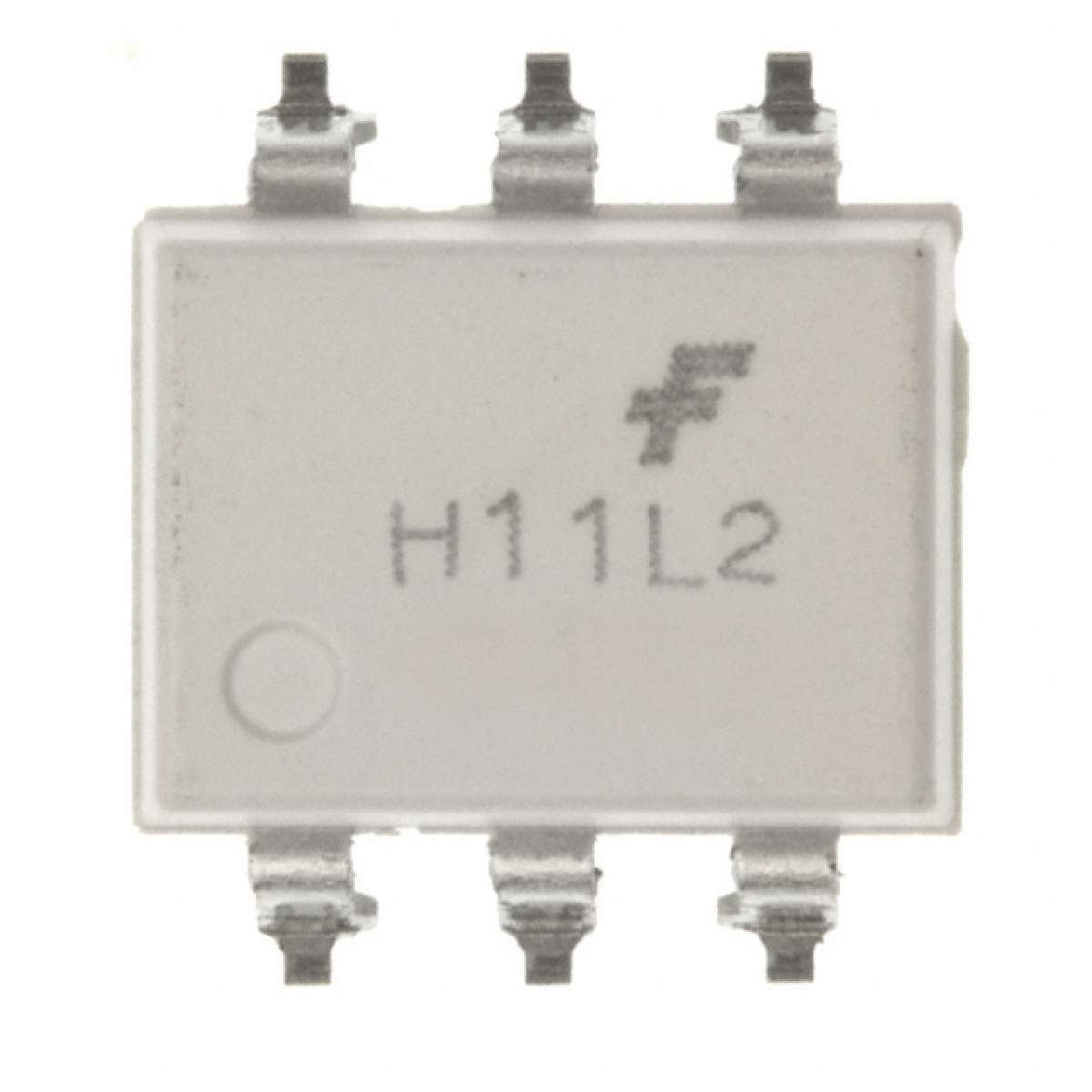

H11L2SR2M

ACTIVE EAR99
Product description : H11L2SR2M Series Single Channel 4170 Vrms Optocoupler SMT - DIP-6
SPQ：1
Datasheet : H11L2SR2M.pdf

Width:	6.6 mm
Number of Channels:	1 Channel
Maximum Baud Rate:	1 MBps
Length:	8.89 mm
Output Type:	Open Collector
Pd - Power Dissipation:	250 mW
Factory Pack Quantity:	1000
Brand:	Fairchild Semiconductor
Package / Case:	SMD-6
Height:	3.53 mm
Vf - Forward Voltage:	1.2 V
ECCN	EAR99
Fall Time:	100 ns
Packaging:	Reel
Isolation Voltage:	5300 Vrms
Manufacturer:	Fairchild Semiconductor
Vr - Reverse Voltage:	6 V
Minimum Operating Temperature:	- 40 C
Part # Aliases:	H11L2SR2M_NL
RoHS:	Details
Product Category:	Logic Output Optocouplers
Unit Weight:	0.028572 oz
Maximum Operating Temperature:	+ 85 C

Datasheet： H11L2SR2M.pdf
