| FPF2701MPX | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
FPF2701 Series 36 V 114 mOhm Adjustable Over Current Protection Load Switch
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论

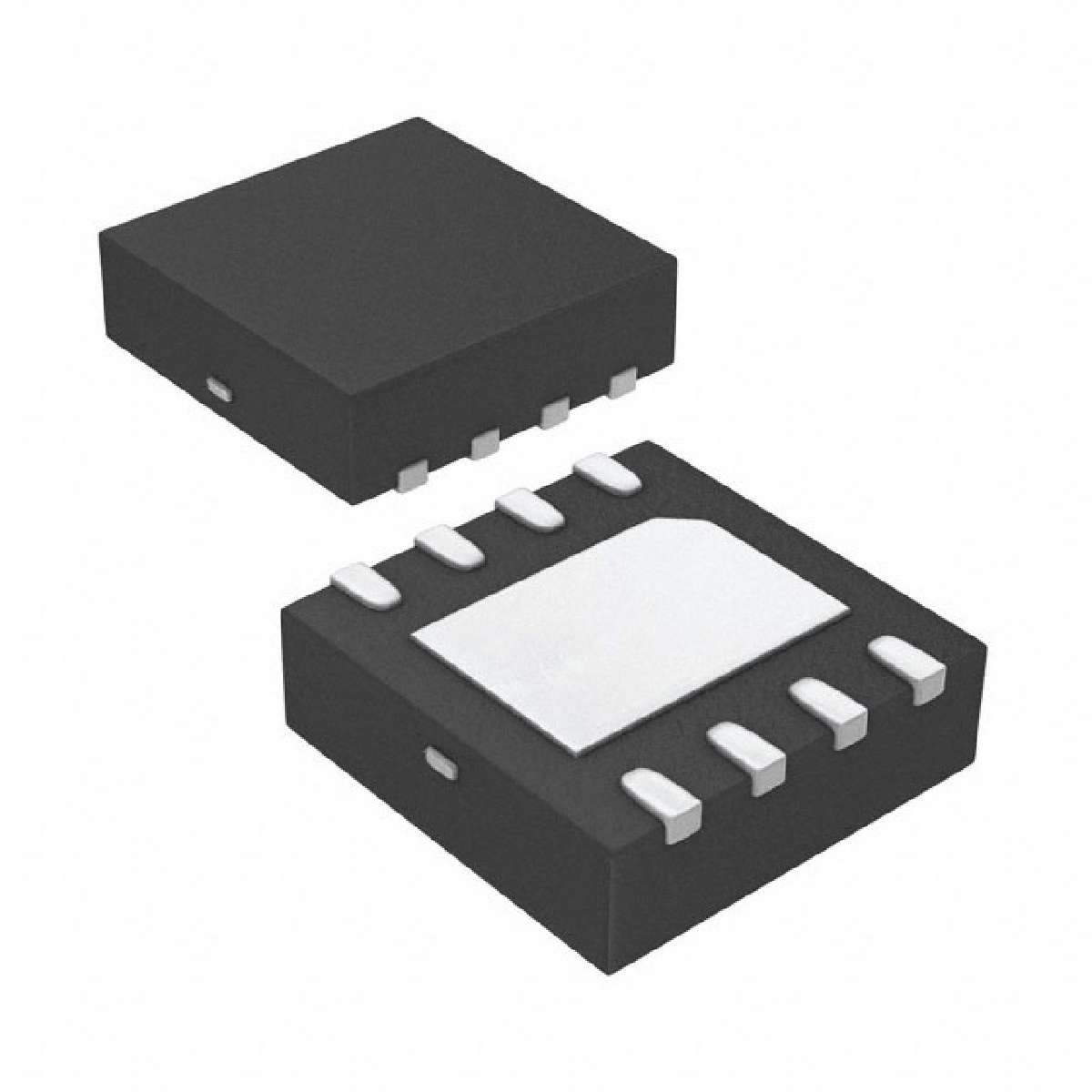

| Package / Case | 8-WDFN Exposed Pad |
|---|---|
| Number of Outputs | 1 |
| Supplier Device Package | 8-MLP (3x3) |
| Switch Type | General Purpose |
| Features | Power Good, Slew Rate Controlled, Status Flag |
| Interface | On/Off |
| Manufacturer | Fairchild Semiconductor |
| Output Type | N-Channel |
| Series | AccuPower™ |
| Ratio - Input:Output | 1:1 |
| Packaging | Cut Tape (CT) |
| ECCN | EAR99 |
| Output Configuration | High Side |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Part Status | Active |
| Category | Integrated Circuits (ICs) |
| Voltage - Load | 2.8 V ~ 36 V |
| Rds On (Typ) | 88 mOhm |
| Family | PMIC - Power Distribution Switches, Load Drivers |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Input Type | Non-Inverting |
| 数据手册： |
|---|
