FH35C-35S-0.3SHW(99) specifications -Ameya360 electronic components purchase network


FH35C-35S-0.3SHW(99)

ACTIVE ECL99

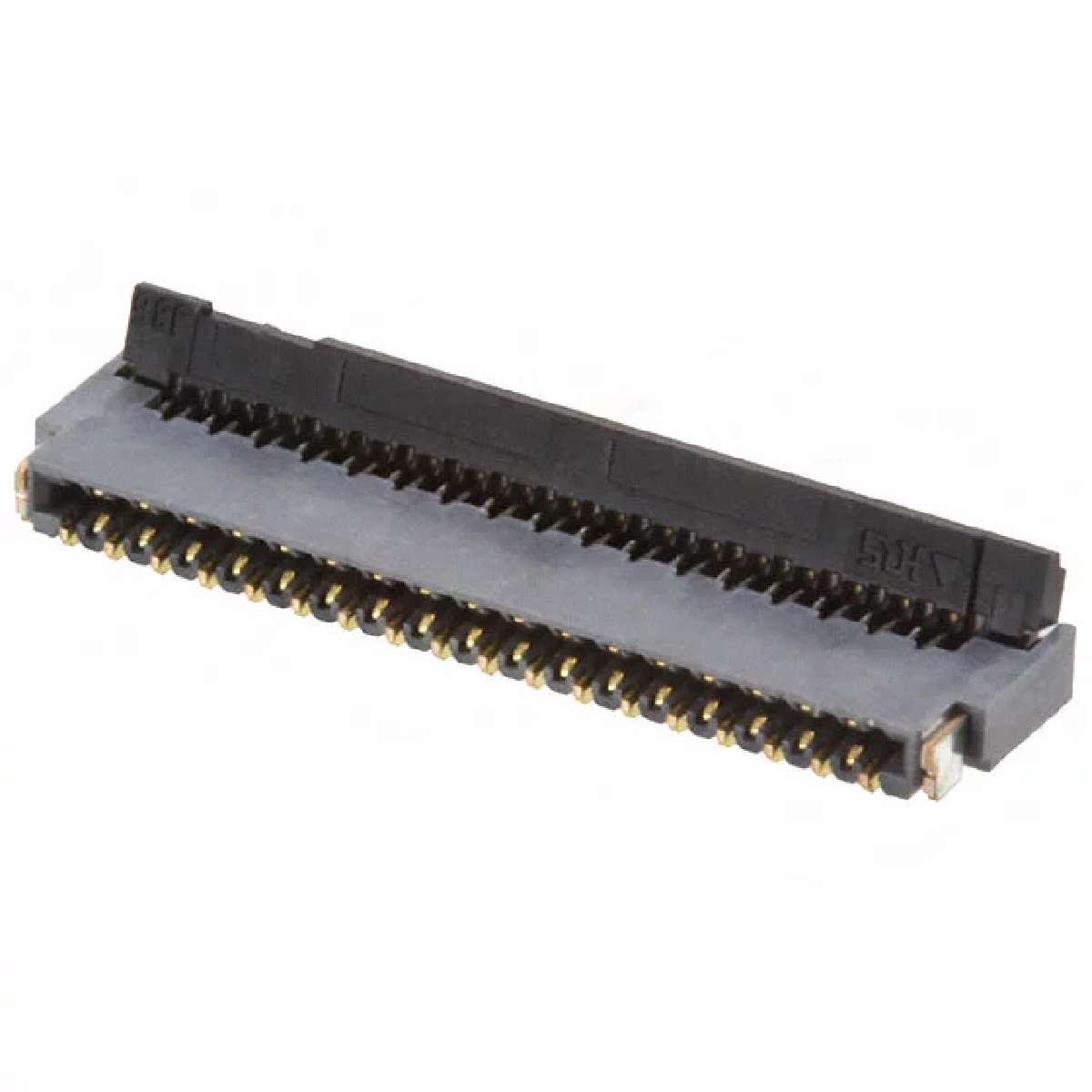

Product description : CONN FPC 35POS 0.30MM R/A
SPQ：500
Datasheet : FH35C-35S-0.3SHW(99).pdf

Height Above Board	0.036" (0.90mm)
Voltage Rating	30V
Cable End Type	Tapered
Part Status	Active
Manufacturer	Hirose Electric Co Ltd
Housing Material	Liquid Crystal Polymer (LCP)
Series	FH35C
Family	FFC, FPC (Flat Flexible) Connectors
Operating Temperature	-55°C ~ 85°C
Connector/Contact Type	Contacts, Top and Bottom
Pitch	0.012" (0.30mm)
Actuator Material	Polyamide (PA), Nylon
ECCN	ECL99
Termination	Solder
Contact Finish	Gold
Flat Flex Type	FPC
FFC, FCB Thickness	0.20mm
Category	Connectors, Interconnects
Contact Material	Phosphor Bronze
Number of Positions	35
Mounting Type	Surface Mount, Right Angle
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Packaging	Digi-Reel®
Current Rating	0.2A

Datasheet： FH35C-35S-0.3SHW(99).pdf
