| FC-255 32.7680K-A3 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

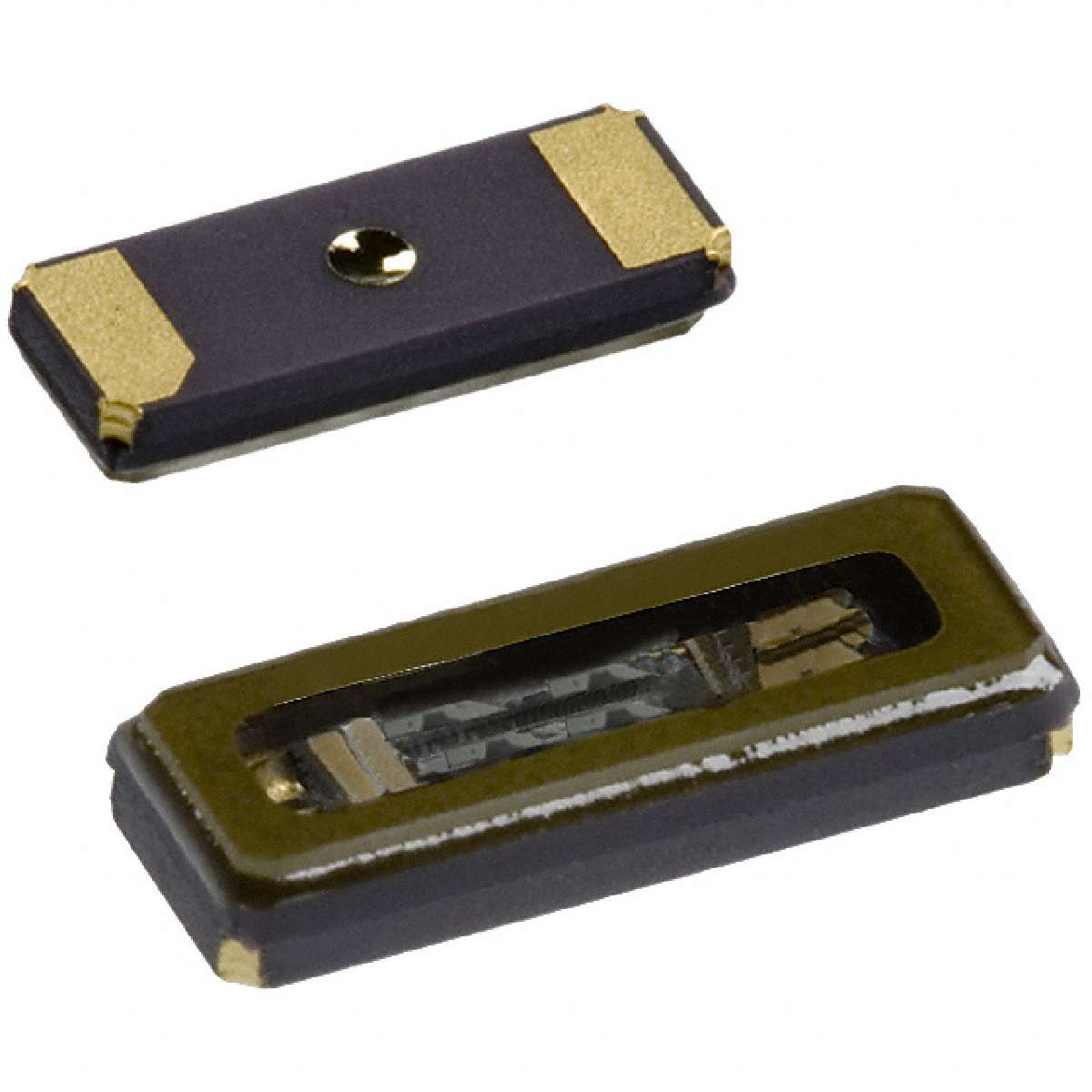

FC-255 Series 32.768 kHz ±20 ppm 12.5 pF -40 to +85°C SMT Crystal Unit
|
||
| 标准包装：250 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Type | kHz Crystal (Tuning Fork) |
|---|---|
| Height | 0.035" (0.90mm) |
| Size / Dimension | 0.190" L x 0.070" W (4.90mm x 1.80mm) |
| Category | Crystals, Oscillators, Resonators |
| Manufacturer | EPSON |
| Family | Crystals |
| Load Capacitance | 12.5pF |
| Frequency | 32.768kHz |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead (DFN, LCC) |
| ESR (Equivalent Series Resistance) | 65 kOhm |
| Part Status | Active |
| Frequency Tolerance | ±20ppm |
| Series | FC-255 |
| Operating Mode | Fundamental |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
