| EEE-FK1V100UR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

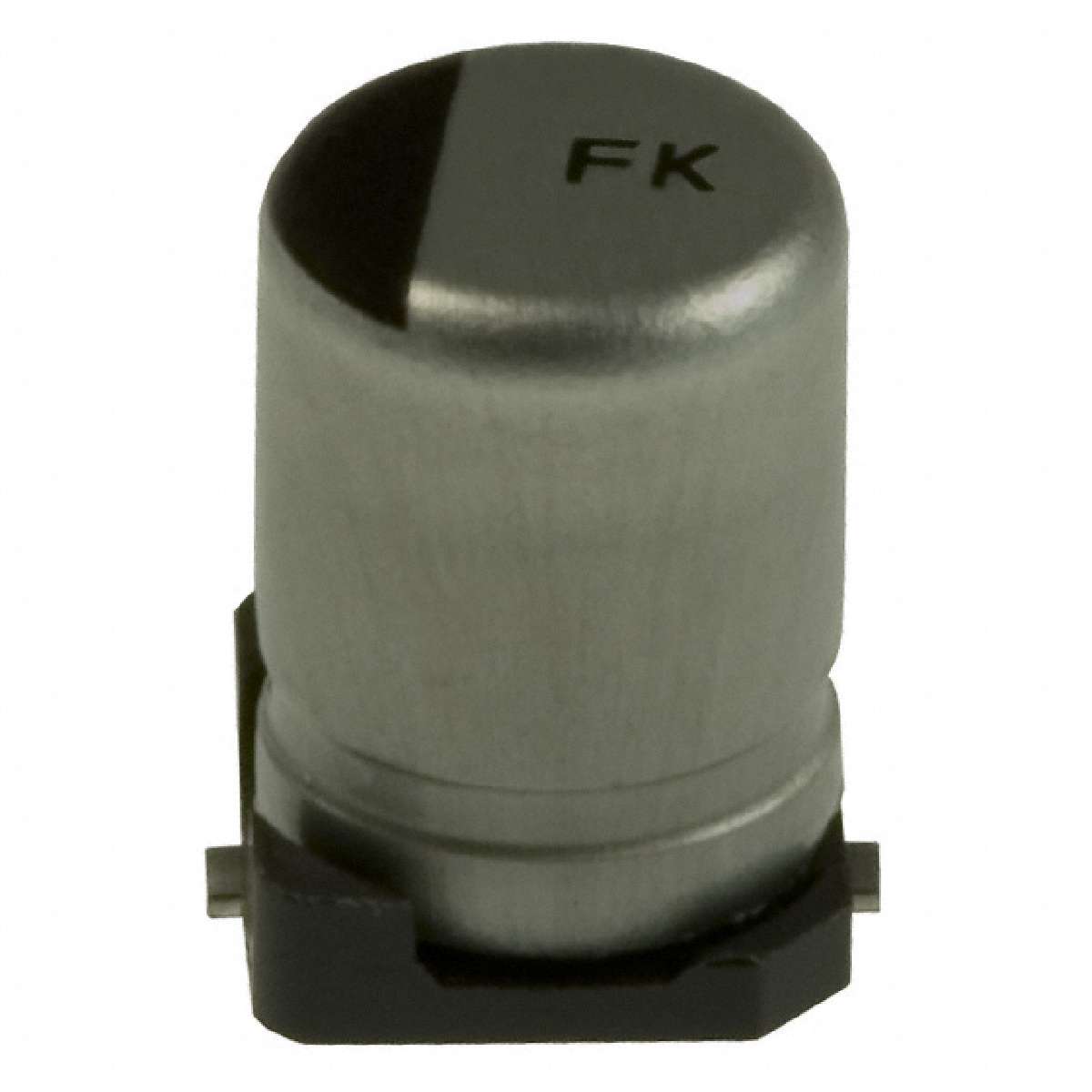

EEE-FK Series 35 V 10 uF Ø 4 x 5.8 mm 105 °C Low ESR SMT Electrolytic
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial, Can - SMD |
|---|---|
| Tolerance | ±20% |
| Capacitance | 10µF |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Ripple Current | 67.5mA @ 120Hz |
| Manufacturer | Panasonic Electronic Components |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
| Impedance | 1.35 Ohm |
| Voltage Rating | 35V |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Series | Automotive, AEC-Q200, FK |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Digi-Reel® |
