| DF12A(3.0)-30DS-0.5V(81) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

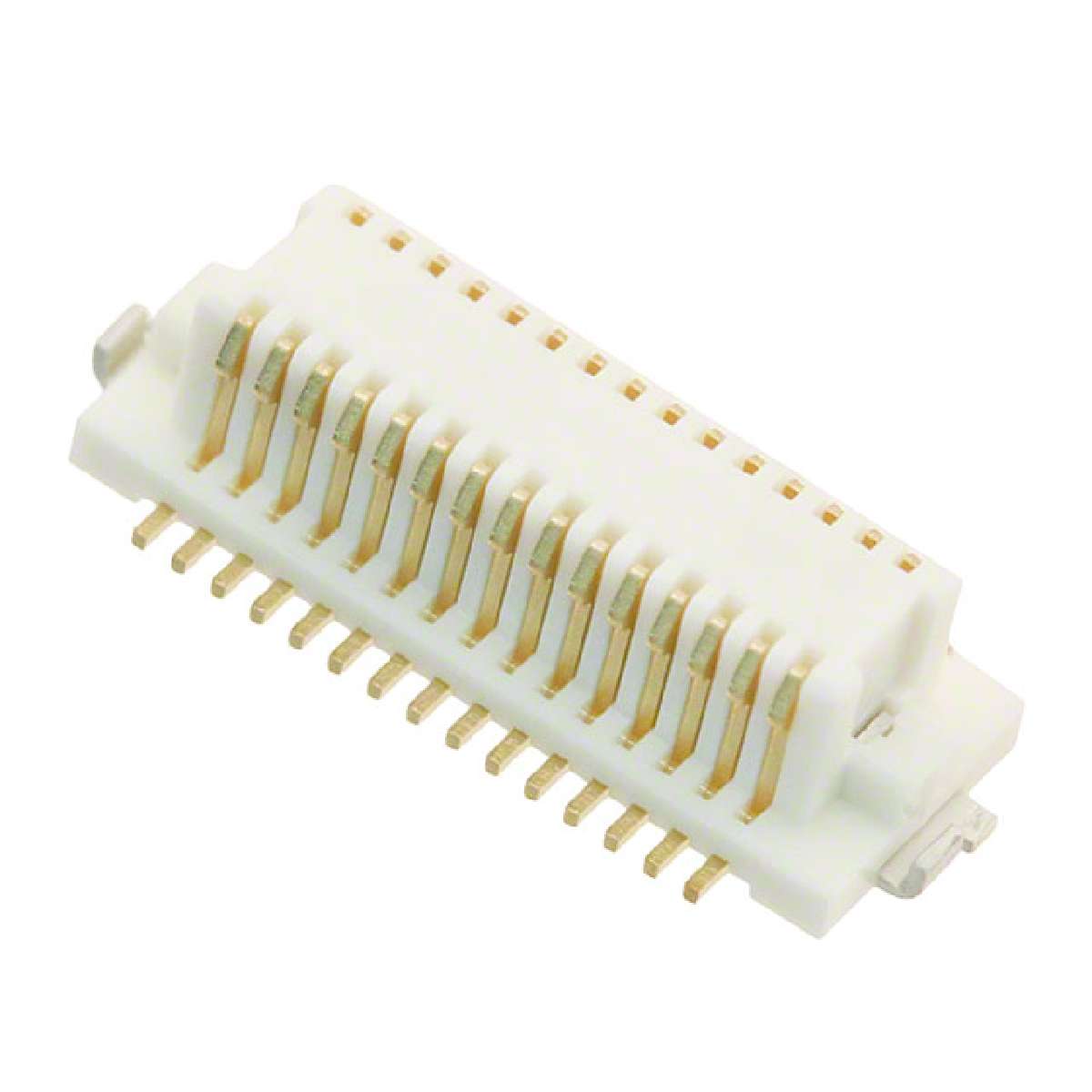

DF12 Series 30 Position Dual Row SMT 0.5 mm Board to Board Receptacle
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Height Above Board | 0.087" (2.20mm) |
|---|---|
| Contact Finish | Gold |
| Part Status | Active |
| Manufacturer | Hirose Electric Co Ltd |
| Number of Positions | 30 |
| Mounting Type | Surface Mount |
| Contact Finish Thickness | 8µin (0.20µm) |
| Packaging | Digi-Reel® |
| ECCN | EAR99 |
| Mated Stacking Heights | 3mm |
| Features | Board Guide |
| Category | Connectors, Interconnects |
| Series | DF12 |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Connector Type | Receptacle, Center Strip Contacts |
| Pitch | 0.020" (0.50mm) |
| Number of Rows | 2 |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$1.51613
￥12.59244
| stock | Out of stock |
|---|---|
| Lead-Time | -- |
| Supplier SPQ/MOQ | 1000/7 |
| Location | -- |
| DateCode | 1627 |
