| BPE2G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

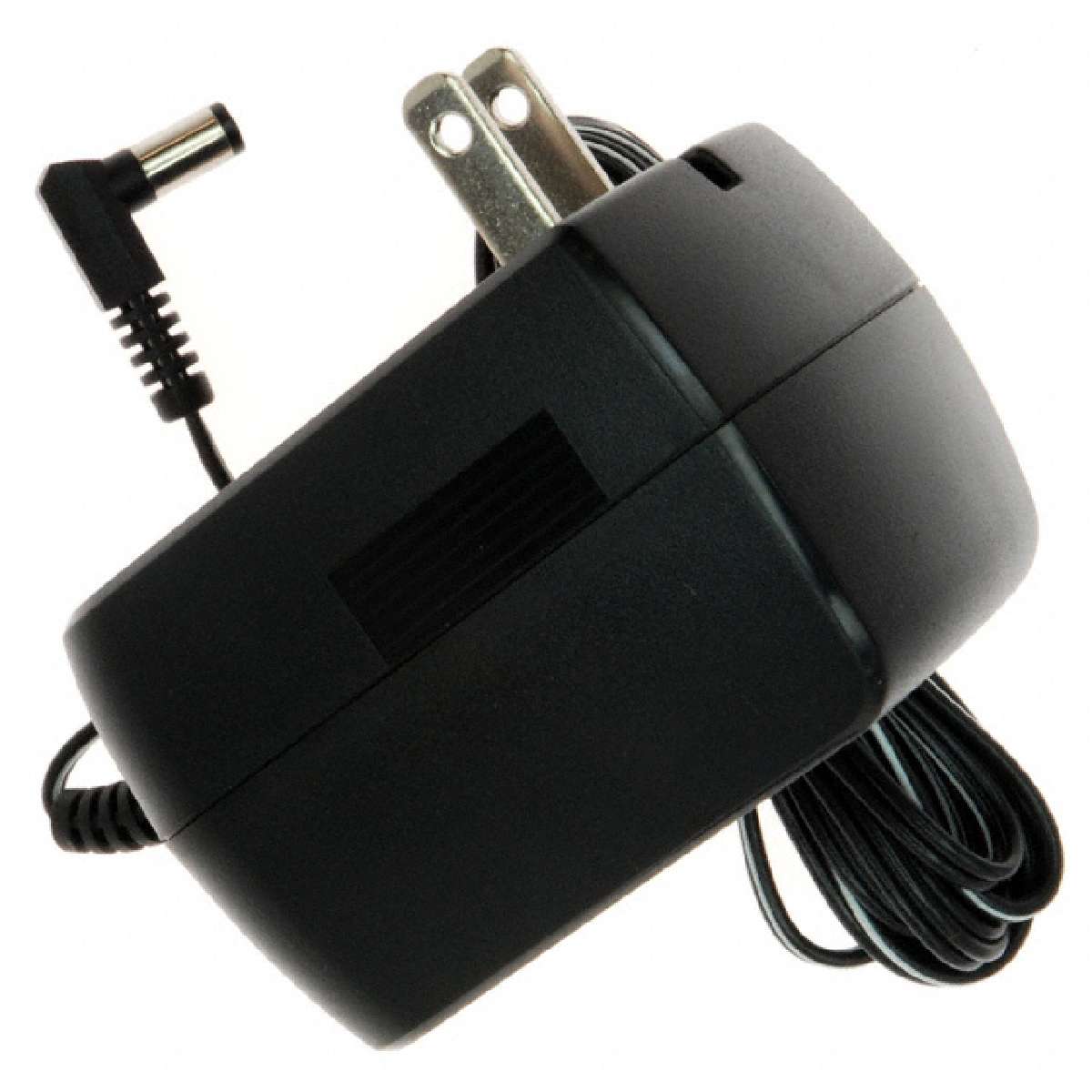

AC/AC WALL MOUNT ADAPTER 24V 40W
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Class 2 Transformers |
|---|---|
| Operating Frequency: | 60 Hz |
| Packaging: | Tube |
| Secondary Voltage Rating: | 24 VAC |
| Manufacturer: | Hammond |
| Factory Pack Quantity: | 1 |
| Part # Aliases: | 507-XT-2440 XT-2440 |
| RoHS: | Details |
| Primary Voltage Rating: | 120 VAC |
| Secondary Current Rating: | 1.67 A |
| Unit Weight: | 1.750 lbs |
| Mounting Style: | Plug |
| Primary Winding: | Single Primary Winding |
| Width: | 71.12 mm |
| Power Rating: | 40 VA |
| Length: | 90.93 mm |
| Series: | BP |
| Brand: | Hammond Manufacturing |
| Secondary Winding: | Single Secondary Winding |
| Termination Style: | Screw Terminals |
| Product Category: | Power Transformers |
| Height: | 54.1 mm |
| Type: | Energy Limiting Transformers |
| 数据手册： |
|---|
