| AT89C51ED2-SMSUM | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

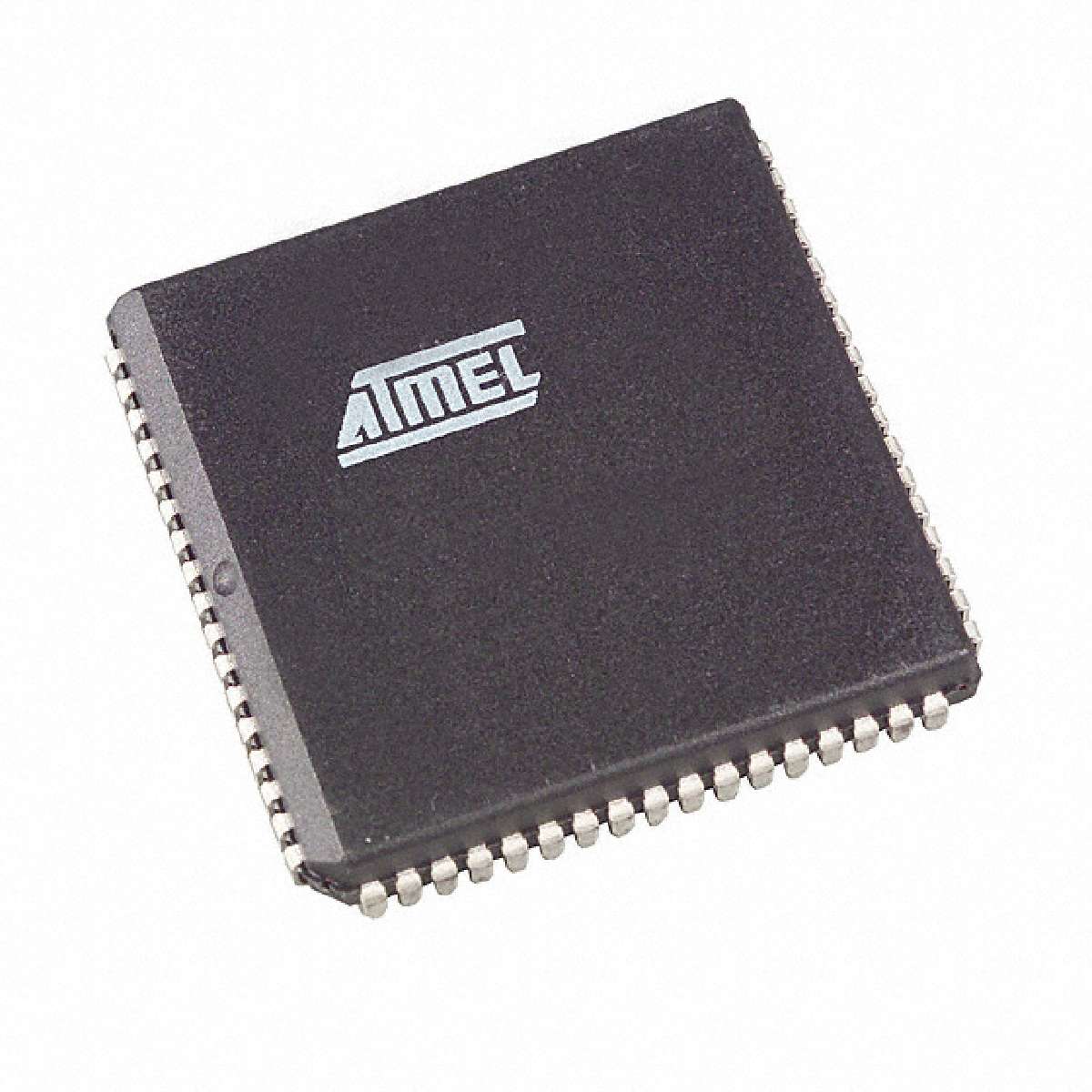

AT89xx Series 64 KB Flash 2 KB SRAM 60 MHz 8-Bit Microcontroller - PLCC-68
|
||
| 标准包装：19 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Program Memory Type: | Flash |
|---|---|
| Packaging: | Tube |
| ADC Resolution: | No ADC |
| Data RAM Size: | 2 kB |
| Supply Voltage - Min: | 2.7 V |
| Number of Timers/Counters: | 3 Timer |
| Height: | 3.68 mm |
| Maximum Clock Frequency: | 60 MHz |
| Mounting Style: | SMD/SMT |
| Number of I/Os: | 48 I/O |
| Operating Supply Voltage: | 2.7 V to 5.5 V |
| Factory Pack Quantity: | 304 |
| Program Memory Size: | 64 kB |
| Data Bus Width: | 8 bit |
| Maximum Operating Temperature: | + 85 C |
| SDP | 68-PLCC 24.2x24.2x4.4mm |
| Processor Series: | AT89x |
| Width: | 24.33 mm |
| Interface Type: | EUART, SPI |
| Minimum Operating Temperature: | - 40 C |
| Core: | 8051 |
| Package / Case: | PLCC-68 |
| Supply Voltage - Max: | 5.5 V |
| Unit Weight: | 0.171777 oz |
| Length: | 24.33 mm |
| Manufacturer: | Atmel |
| Series: | 89C |
| Brand: | Atmel |
| RoHS: | Details |
| Product Category: | 8-bit Microcontrollers - MCU |
| ECCN | 3A991.a.2 |
| Package / Case | TUBE |
| 数据手册： |
|---|
