| XBS304S17R-G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

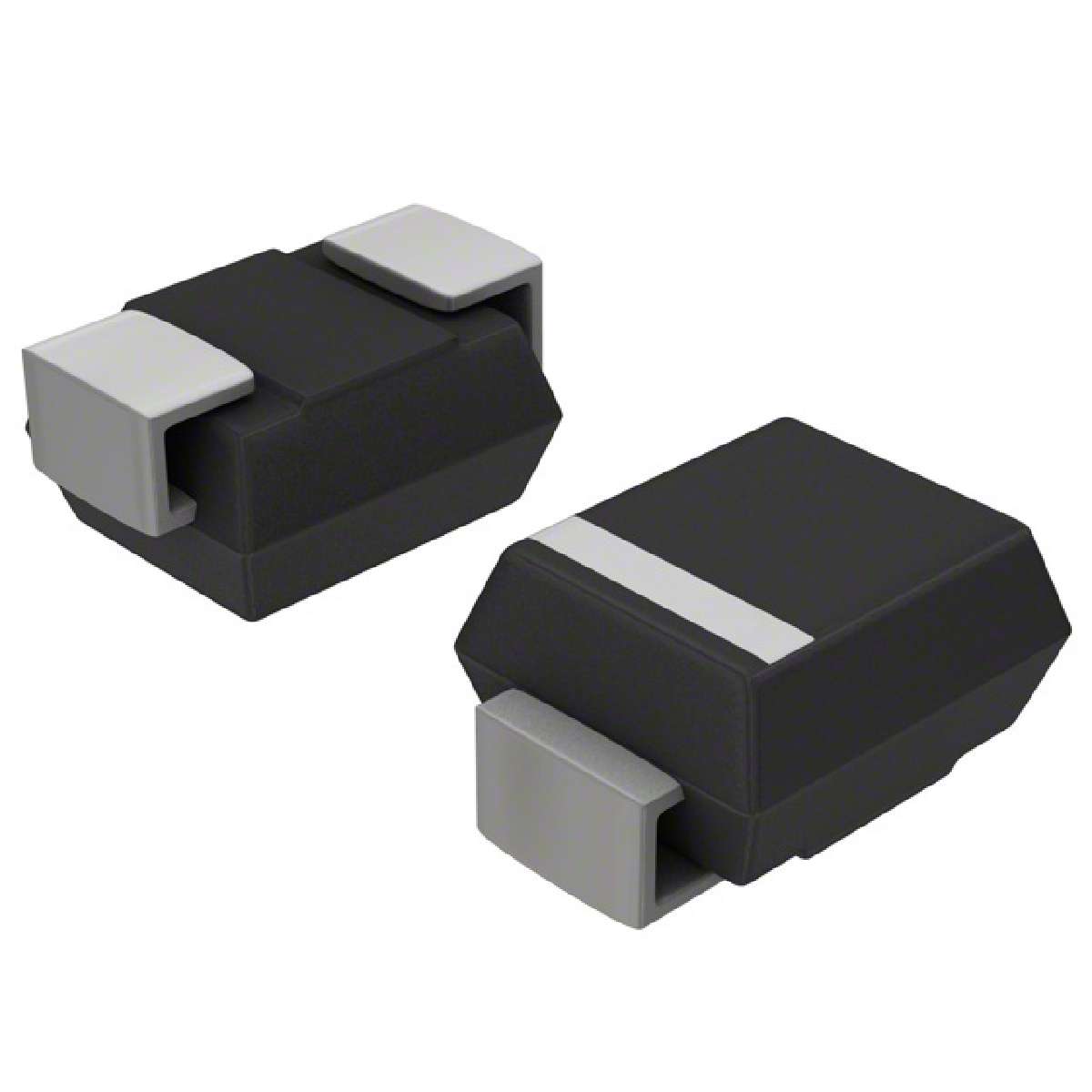

DIODE SCHOTTKY 40V 3A SMA
|
||
| 标准包装：1500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | 125°C (Max) |
|---|---|
| Capacitance @ Vr, F | 180pF @ 1V, 1MHz |
| PCN Obsolescence/ EOL | XBS303V17R/XBS304S17R Devices 27/Nov/2013 |
| Standard Package | 1,500 |
| Diode Type | Schottky |
| Reverse Recovery Time (trr) | 51ns |
| Family | Diodes, Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) | 3A |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Packaging | Tape & Reel (TR) |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 300µA @ 40V |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 510mV @ 3A |
