| 100RX3022M8X11.5 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

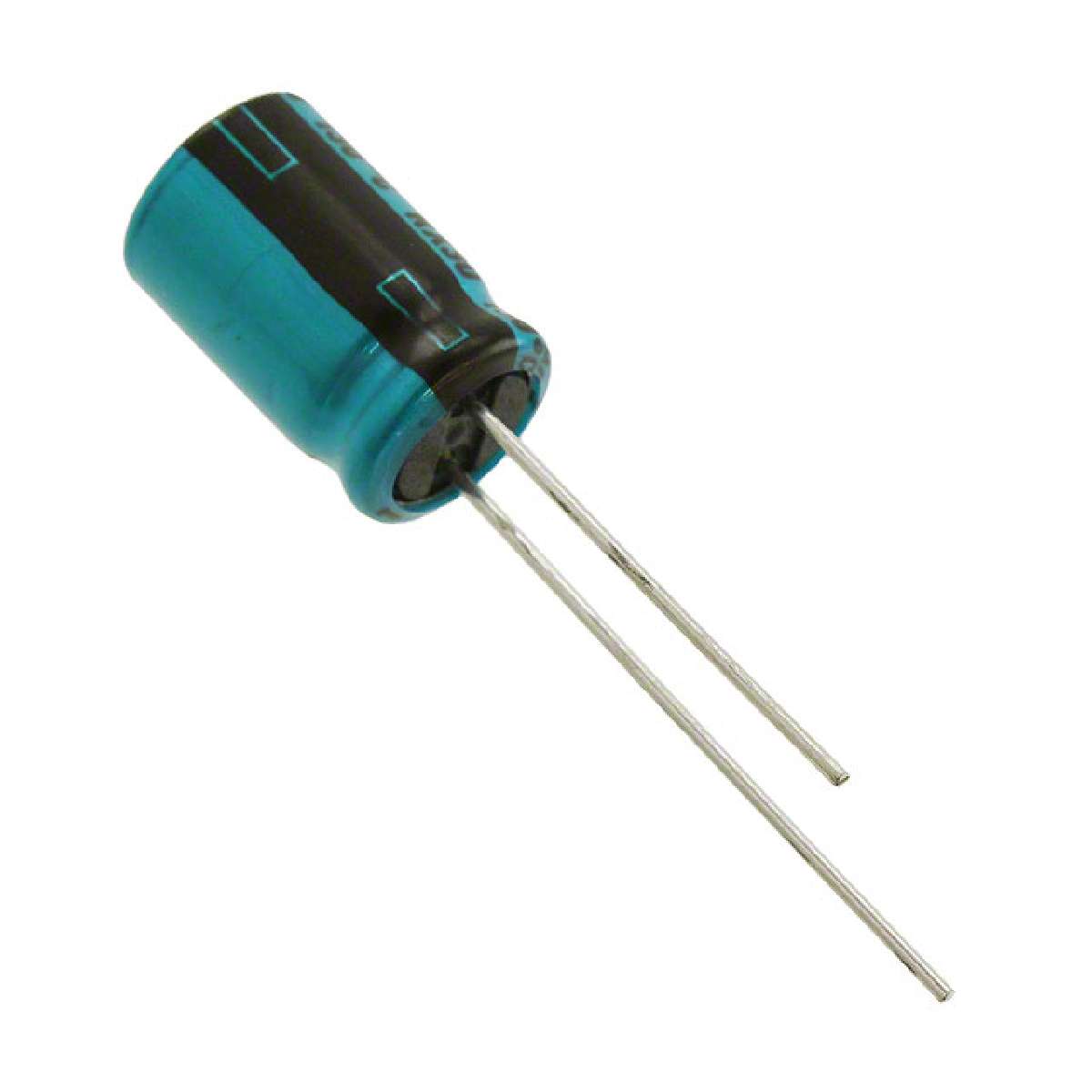

RX30 Series 22 uF 100 V 20 % Through Hole Radial Aluminum Electrolytic Capacitor
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Impedance | 670 mOhm |
|---|---|
| Voltage Rating | 100V |
| Lead Spacing | 0.138" (3.50mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 130°C |
| ECCN | EAR99 |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Ripple Current @ High Frequency | 220mA @ 100kHz |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 22µF |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 220mA |
| Manufacturer | Rubycon |
| Series | RX30 |
| Applications | Automotive |
| Lifetime @ Temp. | 2000 Hrs @ 130°C |
| Packaging | Bulk |
| Categories | Capacitors ->Aluminum Electrolytic Capacitors |
| Ripple Current @ High Frequency | 220mA @ 100kHz |
