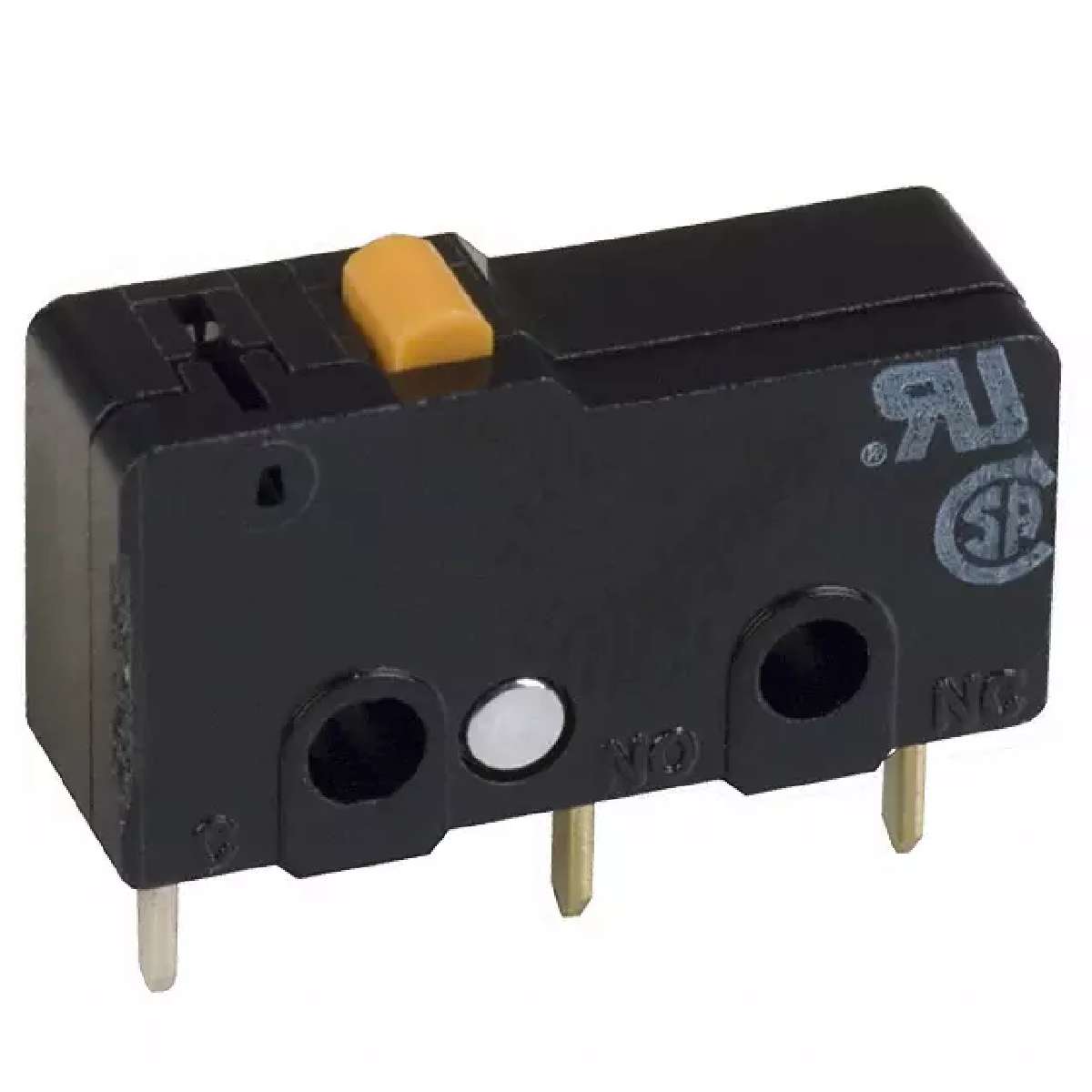

| SS-01-FD | ||
|---|---|---|
|
|
||
|
||
| Product description : Microswitch SNAP ACTION; without lever; SPDT; 0.1A/125VAC; Pos: 2 | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Release Force | 4gf |
|---|---|
| Ingress Protection | IP40 |
| Voltage Rating - DC | 30V |
| Electrical Life | 200,000 Cycles |
| Operating Position | 0.330" (8.4mm) |
| Circuit | SPDT |
| Differential Travel | 0.004" (0.1mm) |
| Standard Package | 500 |
| Operating Force, Torque | 50gf |
| Mechanical Life | 30,000,000 Cycles |
| Family | Snap Action, Limit Switches |
| Overtravel | 0.020" (0.5mm) |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Product Training Modules | Snap Switches |
| Other Related Documents | How to Read Date Codes |
| Mounting Type | Through Hole |
| Actuator Type | Round (Pin Plunger) |
| Pretravel | 0.020" (0.5mm) |
| Voltage Rating - AC | 125V |
| Packaging | Bulk |
| Series | SS |
| Operating Temperature | -25掳C ~ 85掳C |
| Current Rating | 100mA (AC/DC) |
