| 171-015-213R011 | ||
|---|---|---|
|
|
||
|
||

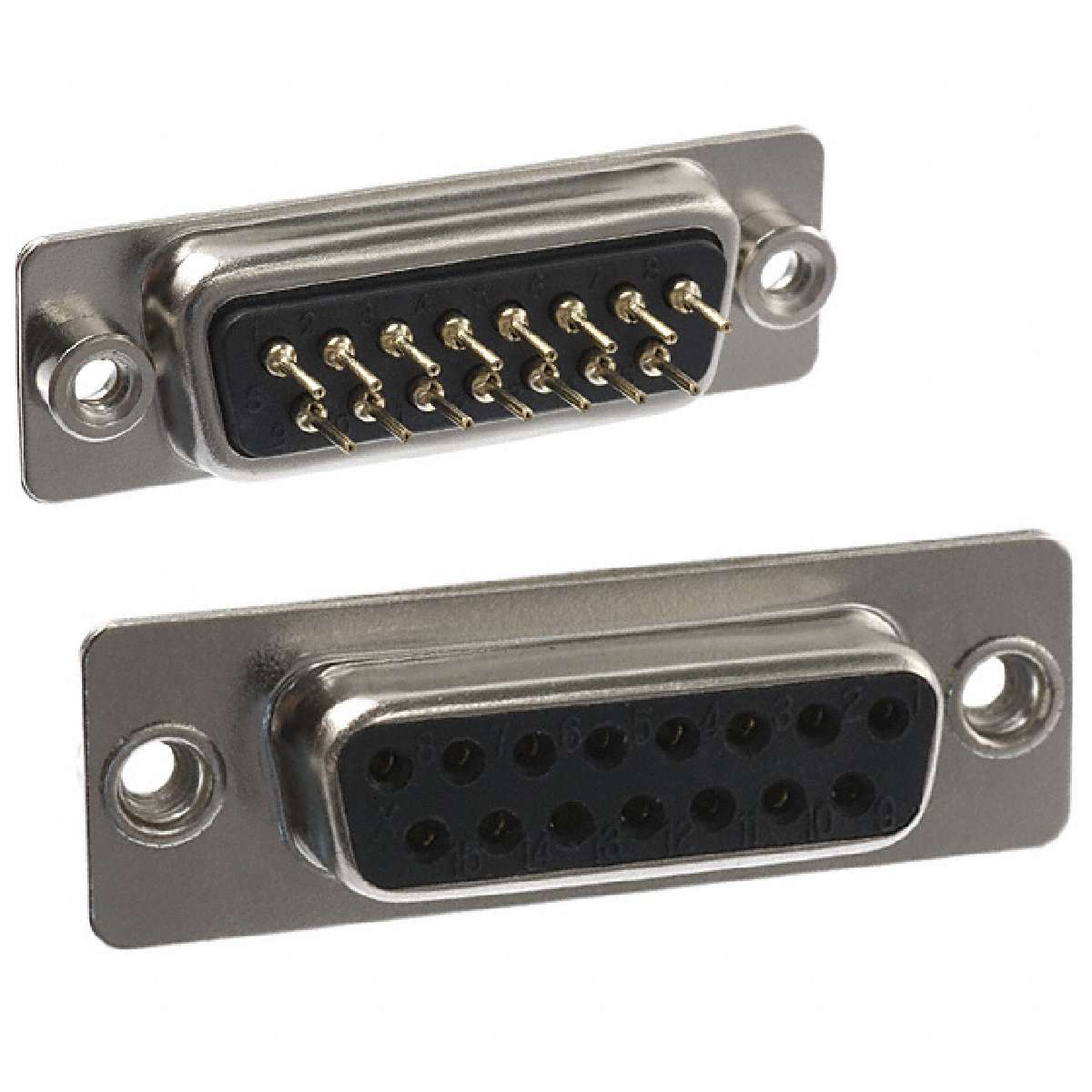

| Product description : 171 Series15 Position Female Nickel Shell Vertical D-Sub Connector | ||
| SPQ：60 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | Solder |
|---|---|
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 2 (DA, A) |
| Color | Black |
| Flange Feature | Board Side (4-40) |
| Category | Connectors, Interconnects |
| Series | 171 |
| Family | D-Sub Connectors |
| Operating Temperature | -50°C ~ 100°C |
| Contact Finish Thickness | Flash |
| Number of Rows | 2 |
| ECCN | EAR99 |
| Connector Style | D-Sub |
| Contact Finish | Gold |
| Contact Type | Signal |
| Part Status | Active |
| Manufacturer | Norcomp Inc. |
| Housing Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 15 |
| Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Packaging | Tray |
| Current Rating | 5A |
