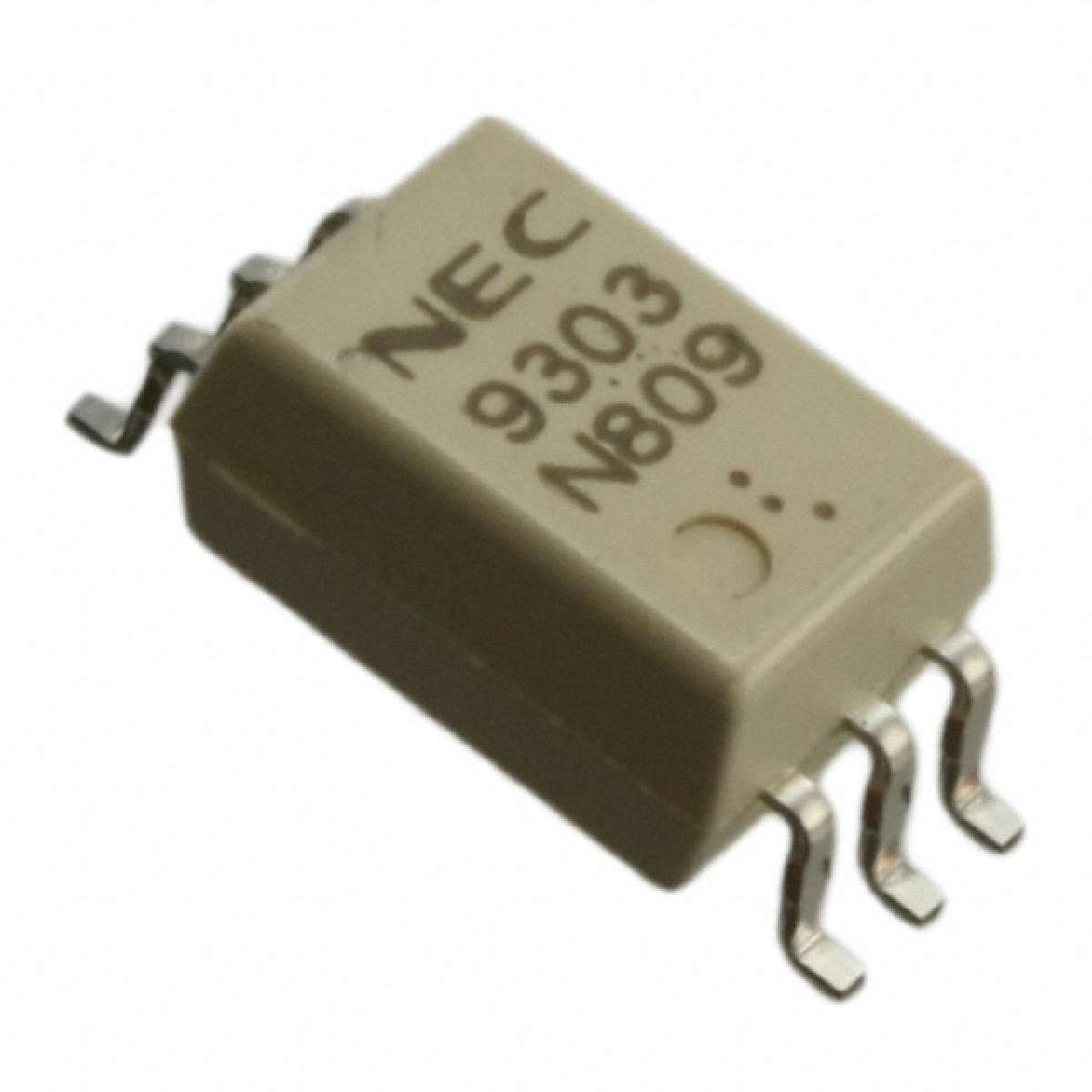

| PS9303L-E3-AX | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
OPTOISO 5KV PUSH PULL 6DIP GW
|
||
| 标准包装：2000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 5000Vrms |
|---|---|
| Data Rate | 1Mbps |
| Rise / Fall Time (Typ) | 120ns, 90ns |
| Mounting Type | Surface Mount |
| Inputs - Side 1/Side 2 | 1/0 |
| Current - Output / Channel | 25mA |
| Standard Package | 2,000 |
| Number of Channels | 1 |
| Online Catalog | PS9303L/PS9303L2 Series |
| Series | NEPOC |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 550ns |
| Voltage - Supply | 4.5 V ~ 20 V |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Current - DC Forward (If) (Max) | 20mA |
| Input Type | DC |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SDIP Gull Wing |
| Packaging | Tape & Reel (TR) |
| Output Type | Push-Pull, Totem Pole |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Family | Optoisolators - Logic Output |
| Operating Temperature | -40°C ~ 100°C |
