| PS2565L-1-K-A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
OPTOISOLATOR 5KV TRANS 4SMD
|
||
| 标准包装：100 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 5000Vrms |
|---|---|
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Min) | 80% @ 5mA |
| Standard Package | 100 |
| Voltage - Output (Max) | 80V |
| Output Type | Transistor |
| Rise / Fall Time (Typ) | 3µs, 5µs |
| Series | NEPOC |
| Family | Optoisolators - Transistor, Photovoltaic Output |
| Vce Saturation (Max) | 300mV |
| Input Type | AC, DC |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |

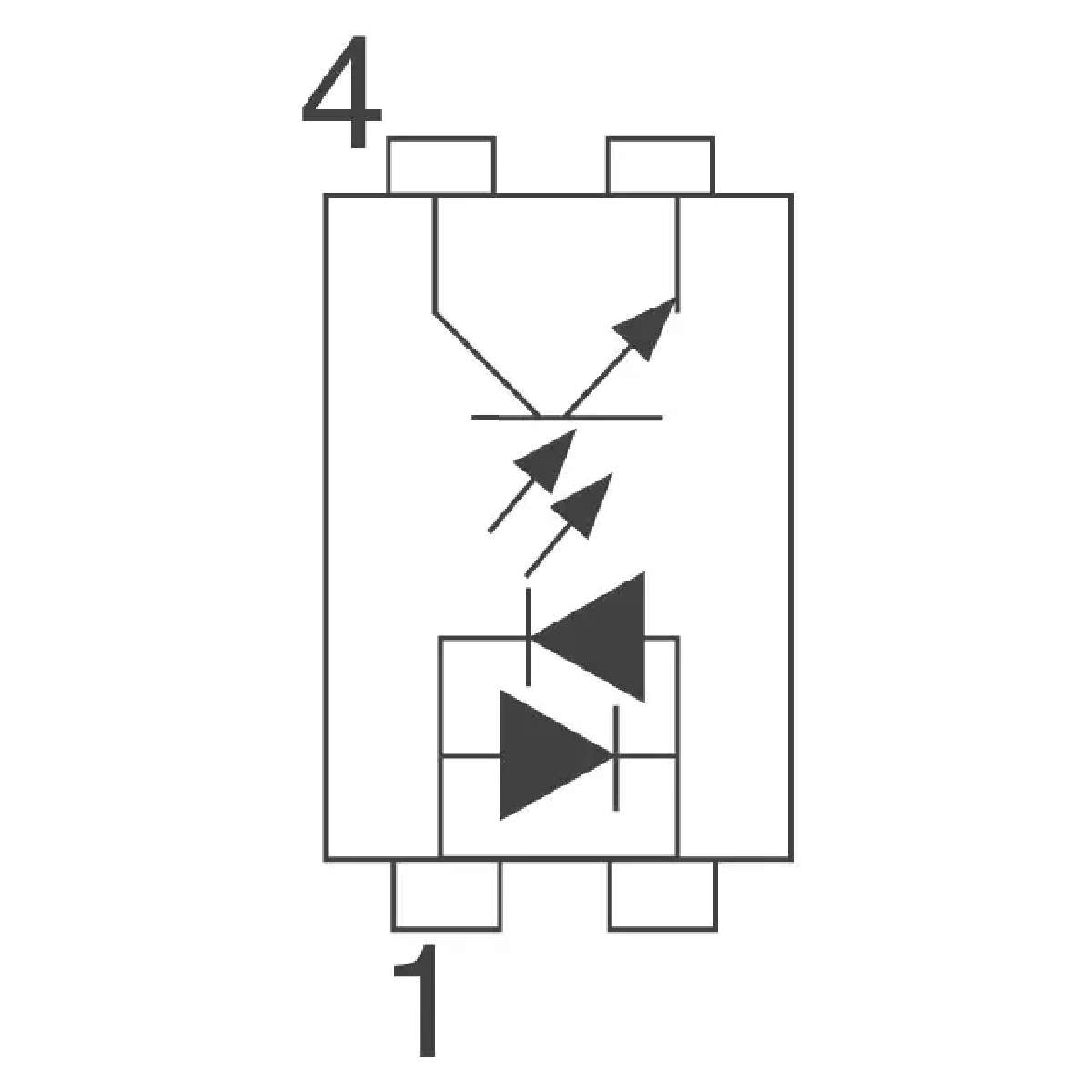

| Other Drawings | Photo Transistor Circuit |
| Packaging | Tube |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.17V |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Current - DC Forward (If) (Max) | 80mA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
