| 28-6554-11 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

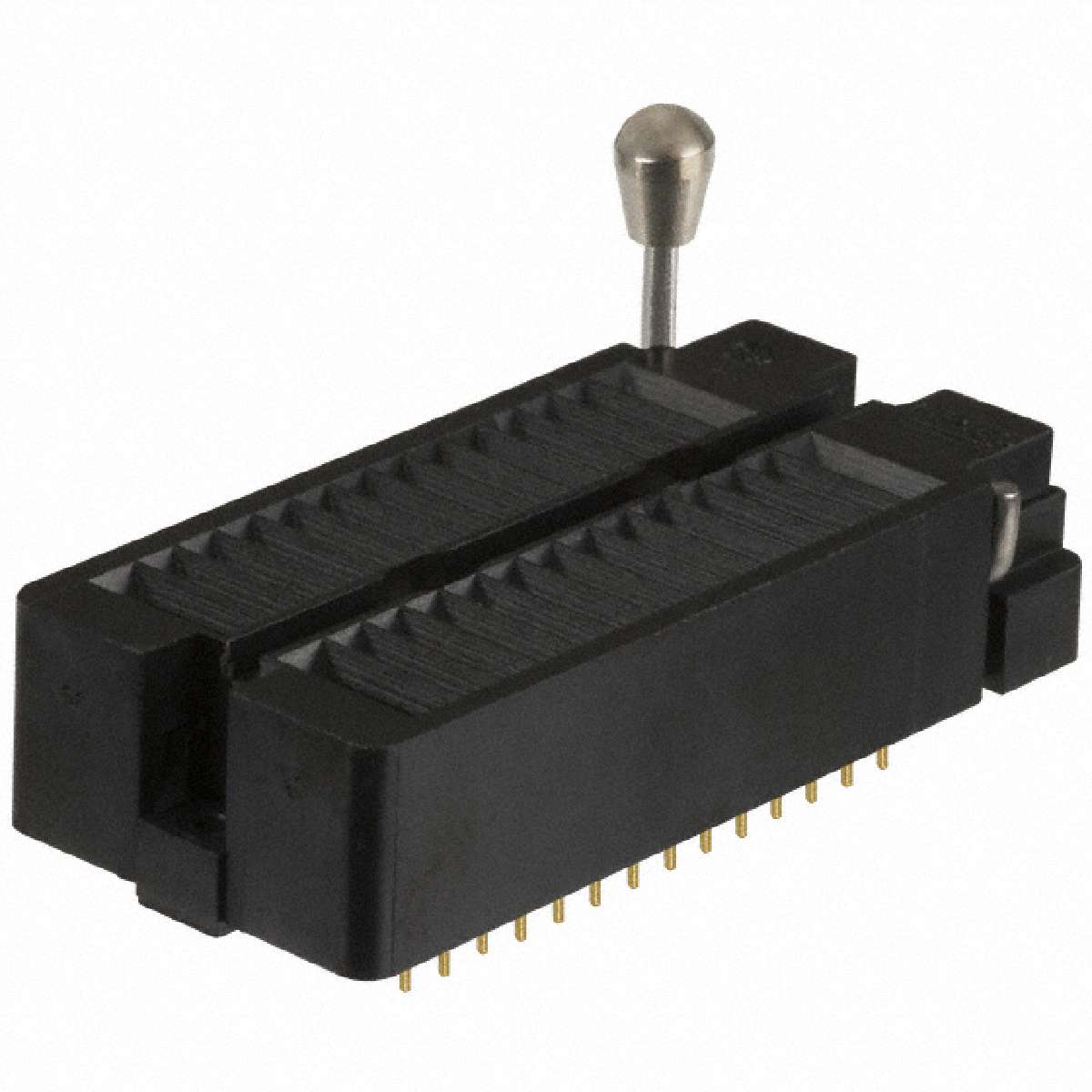

28 PIN ZIF DIP SOCKET
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder |
|---|---|
| Termination Post Length | 0.110" (2.78mm) |
| Contact Finish - Post | Gold |
| Part Status | Active |
| Manufacturer | Aries Electronics |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Beryllium Copper |
| Series | 55 |
| Family | Sockets for ICs, Transistors |
| Material Flammability Rating | UL94 V-0 |
| Current Rating | 1A |
| Pitch - Post | 0.100" (2.54mm) |
| Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing |
| Features | Closed Frame |
| Number of Positions or Pins (Grid) | 28 (2 x 14) |
| Category | Connectors, Interconnects |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Contact Material - Mating | Beryllium Copper |
| Pitch - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| ECCN | EAR99 |
| 数据手册： |
|---|
登录之后就可发表评论
Availability3Request Stock Notification
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$27.74162
￥230.4121299971251
| 1+ | $27.74162 |
|---|---|
| 75+ | $27.18701 |
| 400+ | $26.37108 |
| stock | 10 | Update On 2025-05-21 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$27.18701
￥225.80573000069
| 75+ | $27.18701 |
|---|---|
| 400+ | $26.37108 |
| stock | 7 | Update On 2025-05-21 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/75 | |
| Location | -- | |
| DateCode | -- |
