| PI5C3384QEX | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

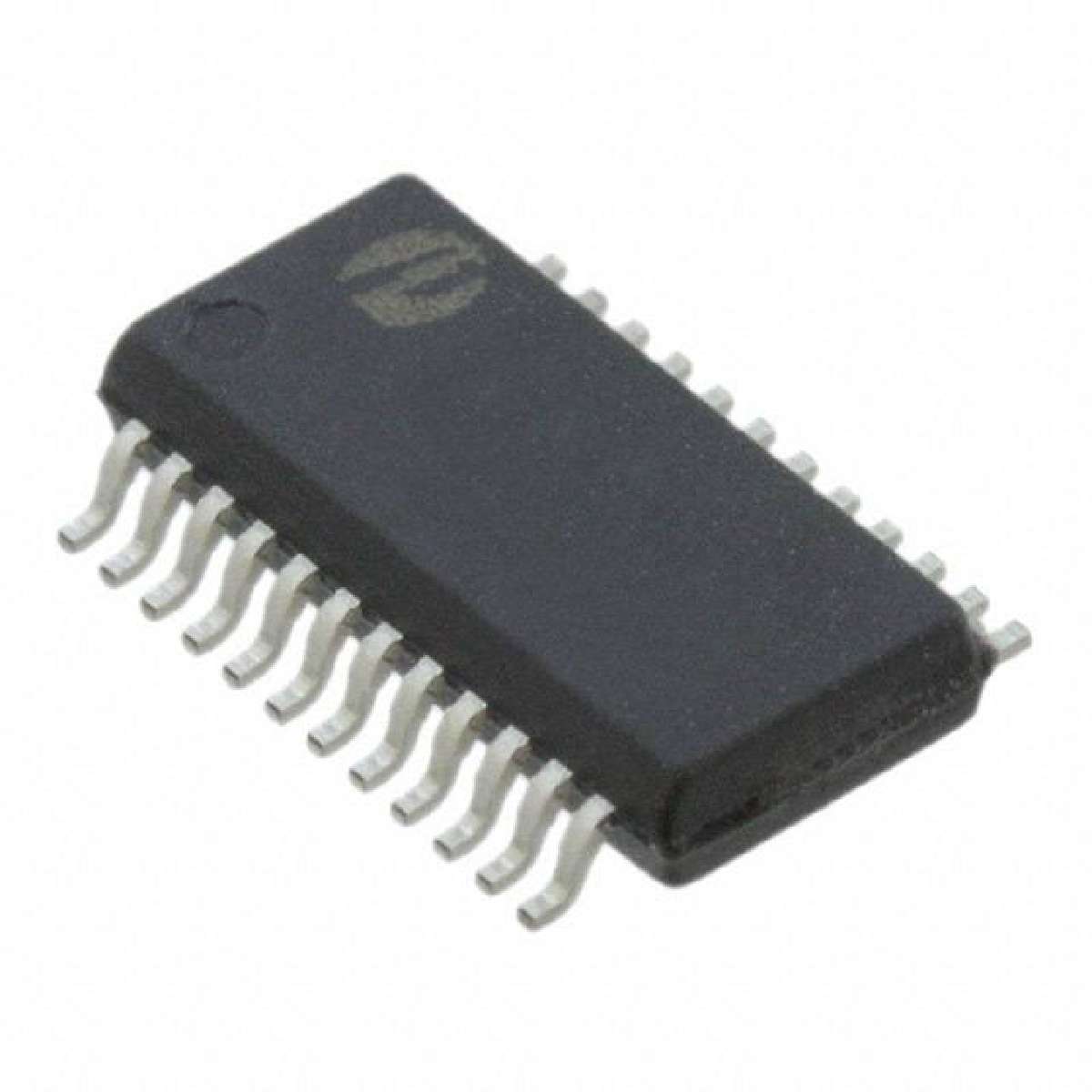

10 Bit 2 Port 5 V Surface Mount Bus Switch - QSOP-24
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 3.99 mm |
|---|---|
| Length: | 8.74 mm |
| Manufacturer: | Pericom |
| Propagation Delay - Max: | 250 us |
| Series: | PI5C3384Q |
| Factory Pack Quantity: | 3000 |
| Brand: | Pericom |
| RoHS: | Details |
| Supply Current - Max: | 3 uA |
| Height: | 1.5 mm |
| Unit Weight: | 0.009016 oz |
| Maximum Operating Temperature: | + 85 C |
| Packaging: | Reel |
| Number of Bits: | 10 bit |
| Organization: | 5 x 1:1 |
| Operating Supply Voltage: | 5 V |
| Minimum Operating Temperature: | - 40 C |
| On Resistance - Max: | 10 Ohms |
| Supply Voltage - Min: | 4.75 V |
| Package / Case: | QSOP-24 |
| Product Category: | Digital Bus Switch ICs |
| Supply Voltage - Max: | 5.25 V |
| Mounting Style: | SMD/SMT |
| ECCN | EAR99 |
