| 290-1AB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

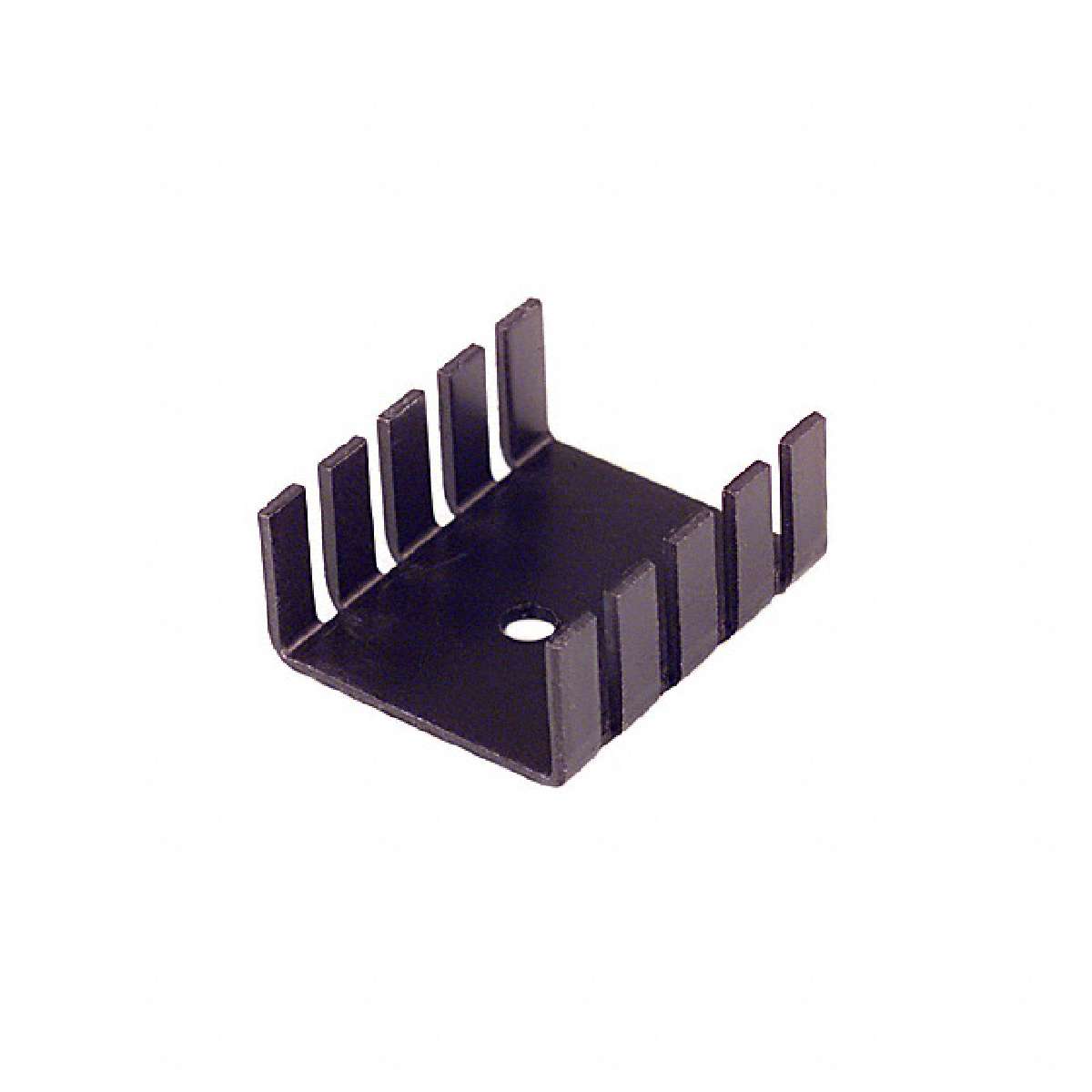

290 Series 25.4 x 30 x 12.7 mm 7° C/W Thermal Resistance Bolt On Heat Sink
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package Cooled | TO-218, TO-202, TO-220 |
|---|---|
| Type | Board Level |
| Part Status | Active |
| Category | Fans, Thermal Management |
| Power Dissipation @ Temperature Rise | 2W @ 44°C |
| Length | 1.180" (29.97mm) |
| Thermal Resistance @ Forced Air Flow | 7.0°C/W @ 400 LFM |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) |
| Thermal Resistance @ Natural | 22°C/W |
| Attachment Method | Bolt On |
| Material | Aluminum |
| Shape | Rectangular, Fins |
| Manufacturer | Wakefield-Vette |
| Material Finish | Black Anodized |
| Series | 290 |
| Family | Thermal - Heat Sinks |
| Width | 1.000" (25.40mm) |
| ECCN | EAR99 |
