| 595D107X9010B2T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

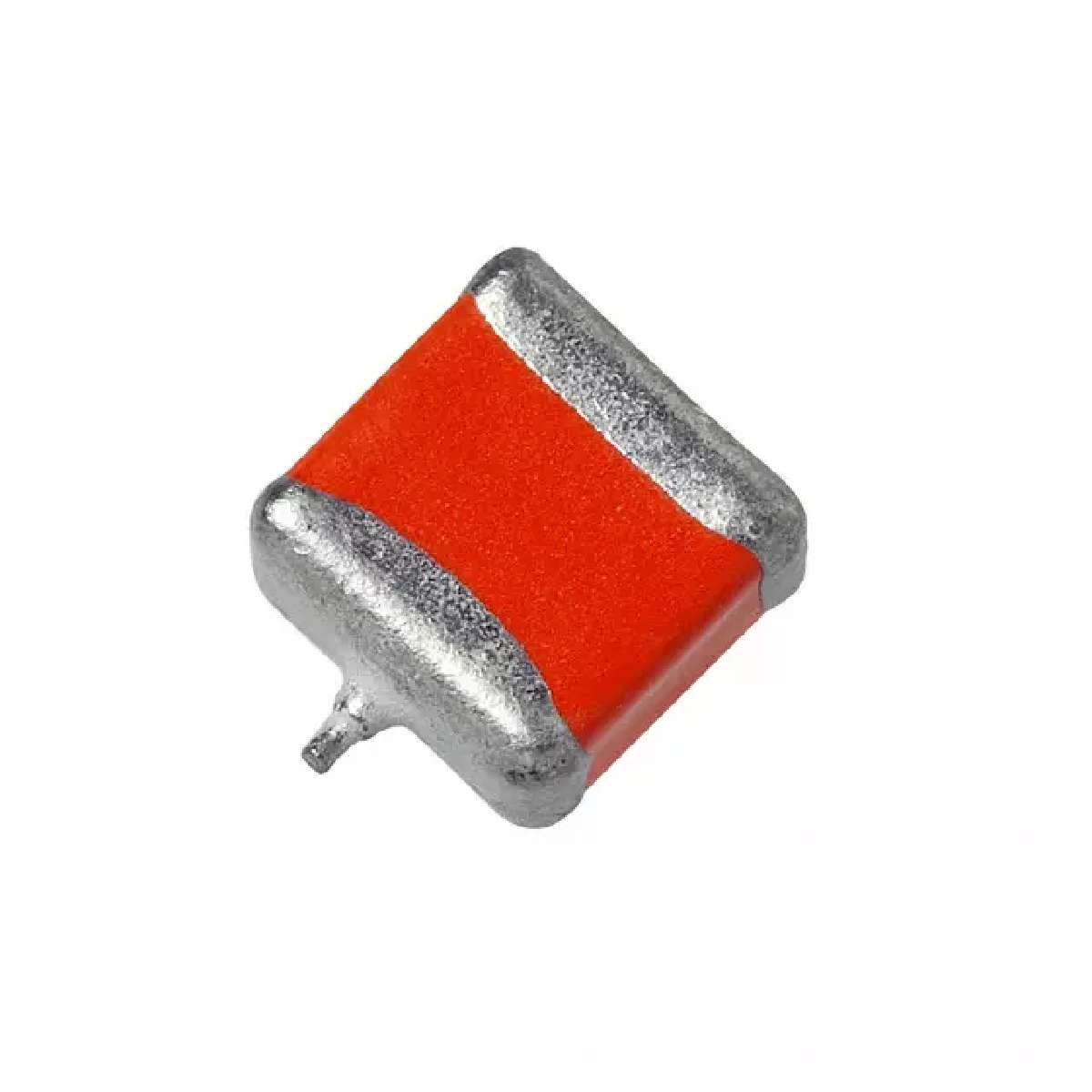

CAP TANT 100UF 10V 10% 1611
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±10% |
|---|---|
| Type | Conformal Coated |
| Capacitance | 100µF |
| Features | General Purpose |
| Product Training Modules | Conformal Coated Tantalum Capacitors |
| Online Catalog | TANTAMOUNT® 595D Series |
| Series | TANTAMOUNT® 595D |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1611 (4028 Metric) |
| Manufacturer Size Code | B |
| ESR (Equivalent Series Resistance) | 400 mOhm |
| Size / Dimension | 0.157" L x 0.110" W (4.00mm x 2.80mm) |
| Voltage - Rated | 10V |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Family | Tantalum Capacitors |
| Operating Temperature | -55°C ~ 125°C |
| RoHS | Lead free / RoHS Compliant |
