MAX9709ETN+D specifications -Ameya360 electronic components purchase network


MAX9709ETN+D

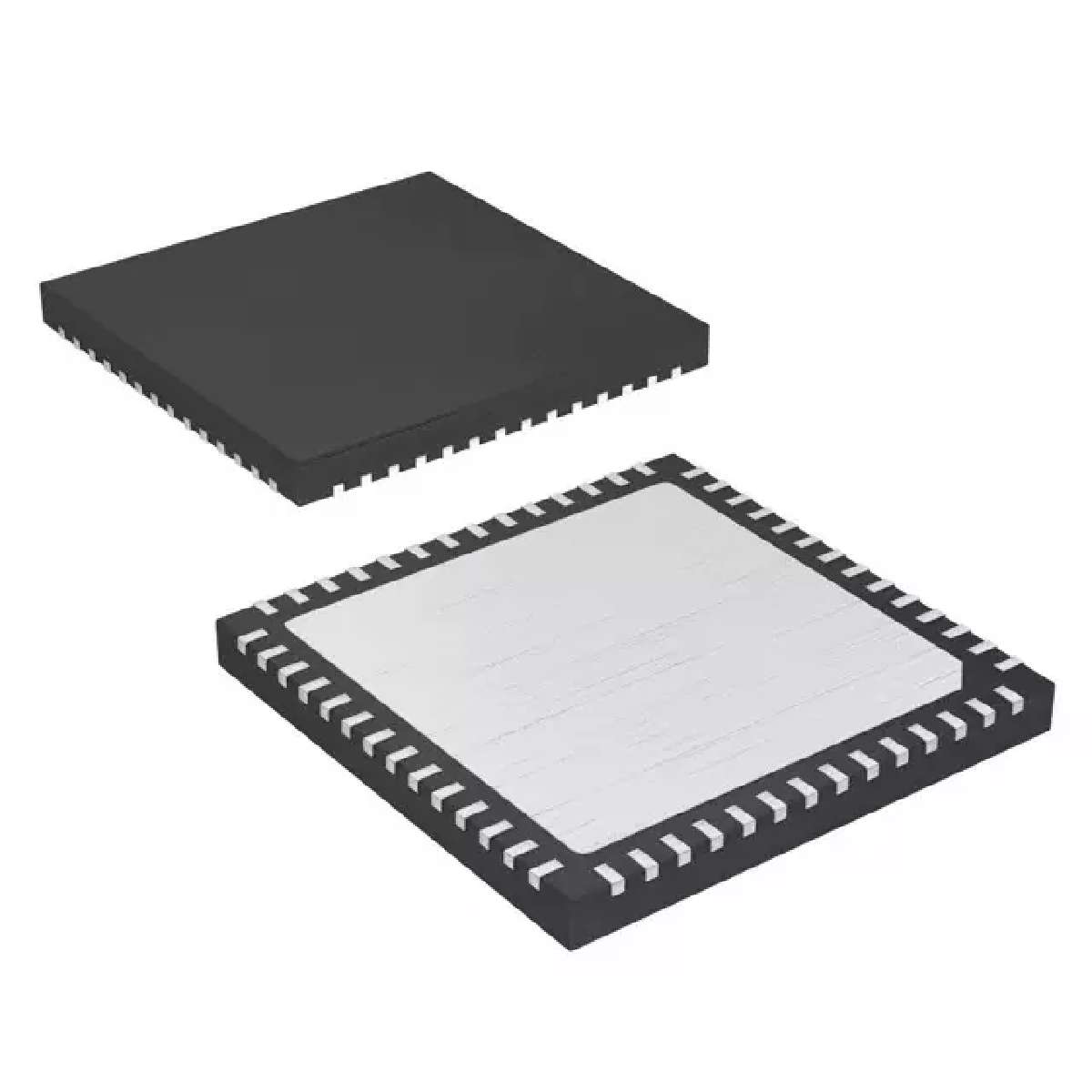

ACTIVE 56-TQFN (8x8)
Product description : MAX9709 Series 22 V 29 W Class D Mono,Stereo SMT Audio Amplifier - TQFN-56
SPQ：1
Datasheet : MAX9709ETN+D.pdf

Voltage - Supply	10 V ~ 22 V
Package / Case	56-WFQFN Exposed Pad
Supplier Device Package	56-TQFN (8x8)
Features	Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown
Output Type	1-Channel (Mono) or 2-Channel (Stereo)
Family	Linear - Amplifiers - Audio
Operating Temperature	-40°C ~ 85°C (TA)
RoHS	Lead free / RoHS Compliant
Mfg Application Notes	Class D Amplifiers: Fundamentals of Operation and Recent Developments
Type	Class D
Max Output Power x Channels @ Load	50W x 1 @ 4 Ohm; 29W x 2 @ 8 Ohm
Product Training Modules	Lead (SnPb) Finish for COTS Long-Term Supply Program
Online Catalog	Class D Amplifier Class D Amplifier
Mounting Type	Surface Mount
Packaging	Tube

Datasheet： MAX9709ETN+D.pdf
